POWERHEAD
Page 4A-56 90-855347R1 JANUARY 1999

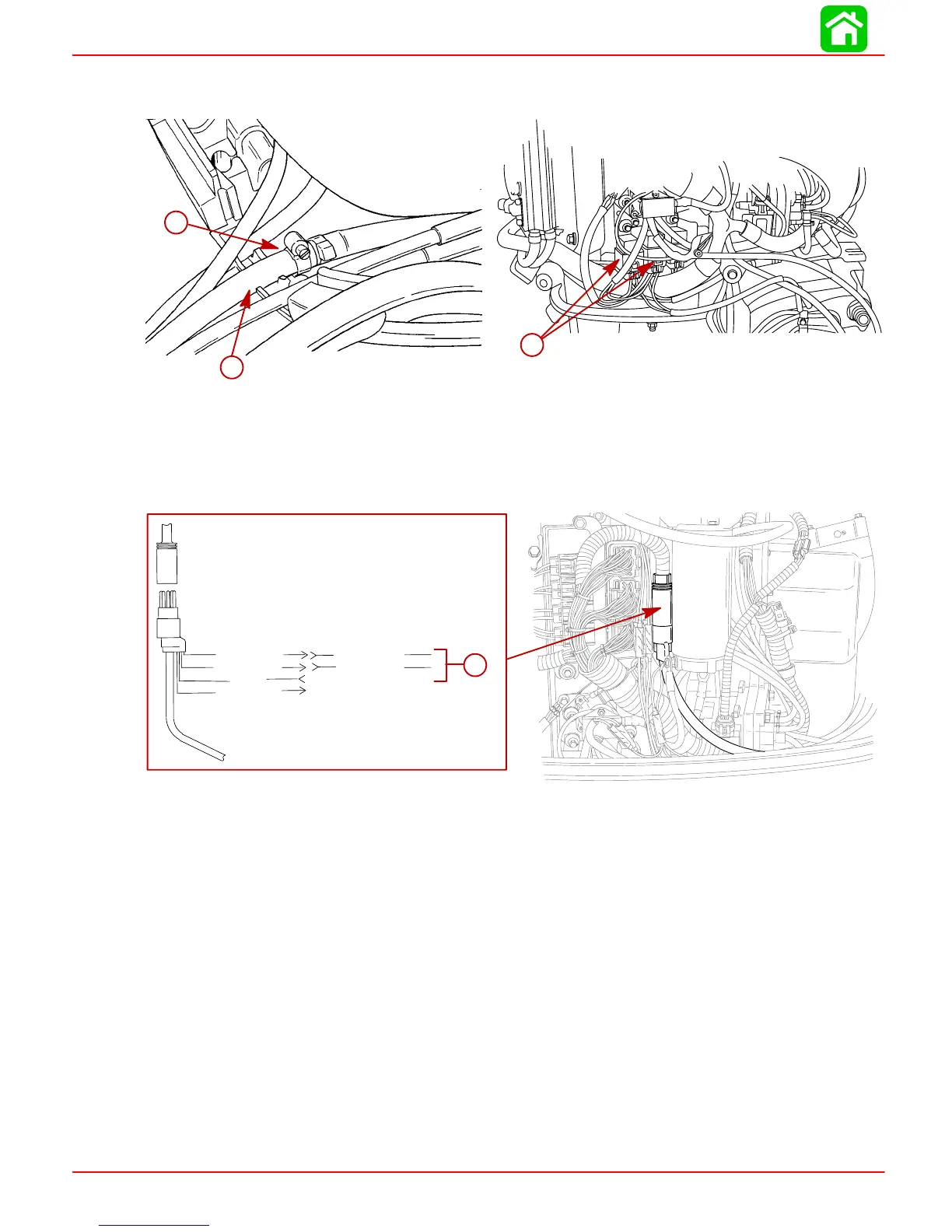

12. Reconnect input fuel line.
13. Reconnect BLUE and GREEN trim harness leads to trim solenoids.
a
c
a
b
a
b
a-Hose Clamp
b-Fuel Line
c-Trim Solenoids
14. Reconnect remote control harness to powerhead harness connector and wires as
shown.
GRN/WHT
BLU/WHT
BRN/WHT
TAN
BLU/WHT
GRN/WHT
a
a
a-Power Trim Connections
