Mercury Optimax 135 Service Manual

POWER TRIM
90-855347R1 JANUARY 1999 Page 5B-43

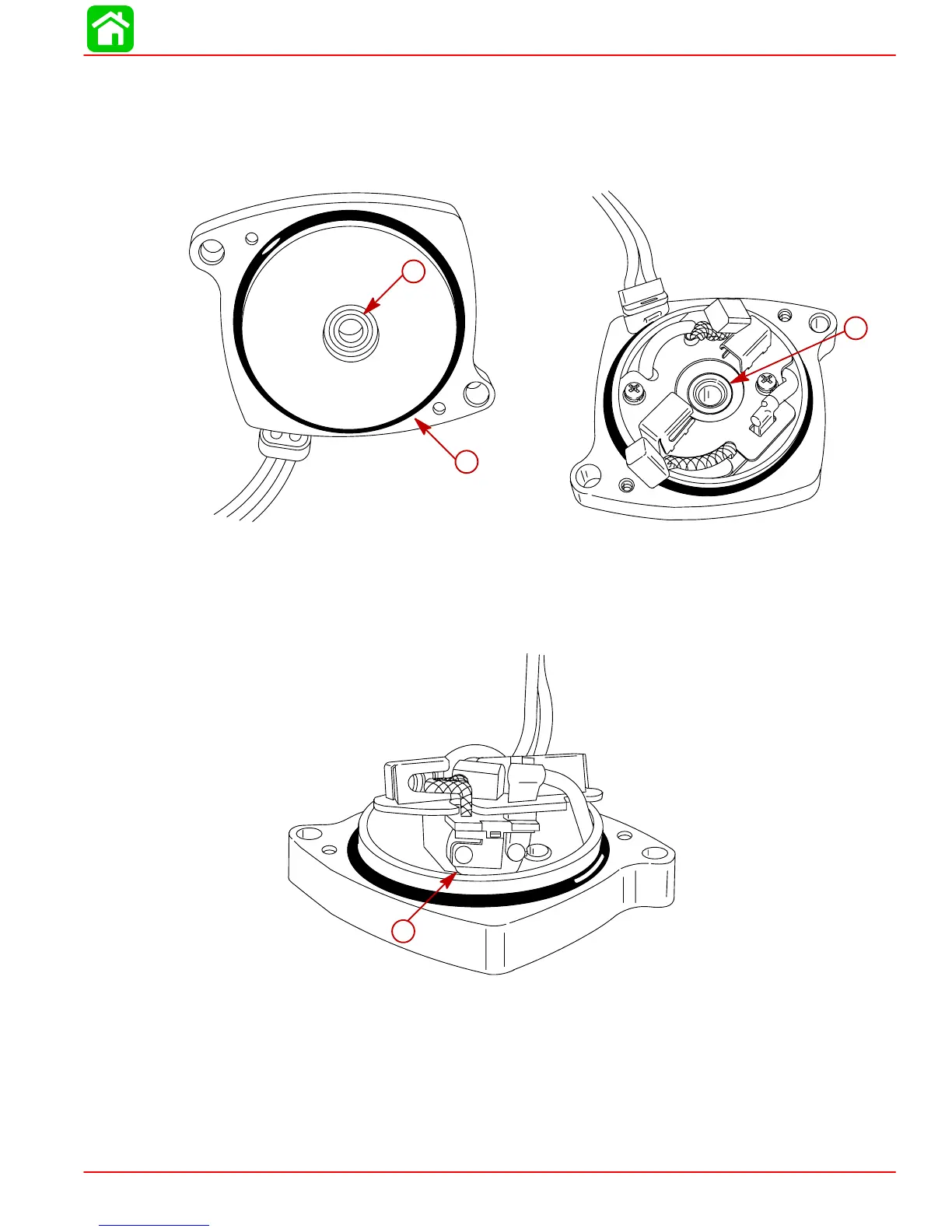

END CAP INSPECTION
1. Inspect seal and O-ring for cuts and abrasions. If replacement is required, install
BRUSH and SEAL KIT 828714A1.
2. Inspect bushing for wear. If bushing appears to be excessively worn – grooves,
scratches, etc. – install END FRAME ASSEMBLY (COMPLETE) 828715A1.
53785
c
53783
a
b
a-Seal (Apply 2-4-C w/Teflon to seal lips)
b-O-ring
c-Bushing
3. If trim motor is overheated, a thermoswitch located under brush card will open. Nor-
mally, this switch will reset itself within 1 minute.
53781
a
a-Thermoswitch

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
