Mercury Optimax 135 Service Manual

RIGHT HAND NON-RATCHETING
Page 6A-4 90-855347R1 JANUARY 1999

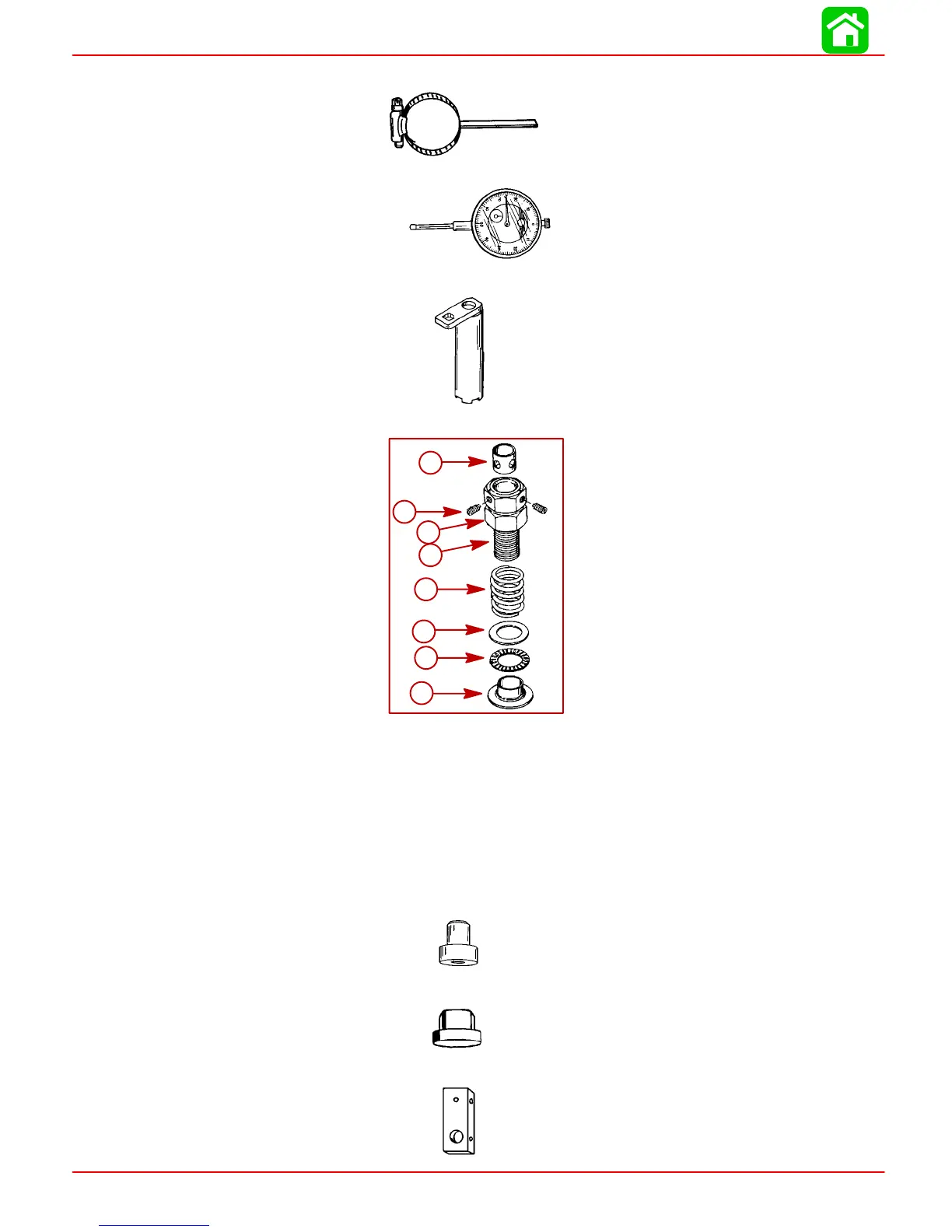

18. Backlash Indicator Rod 91-78473
19. Dial Indicator 91-58222A1
20. Bearing Retainer Tool 91-43506
21. Bearing Preload Tool 91-14311A1
1
2
3
4
5
6
7
8
1-Adaptor (N.S.S.)
2-Bearing (N.S.S.)
3-Washer (N.S.S.)
4-Spring (24-14111)
5-Bolt (10-12580)
6-Nut (11-13953)
7-Set Screw (10-12575)
8-Sleeve (23-13946)
22. Mandrel 91-92788
23. Mandrel 91-15755
24. Dial Indicator Holder 91-89897

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
