Section 2 - Installation
90-8M0072763 eng JUNE 2012 Page 13

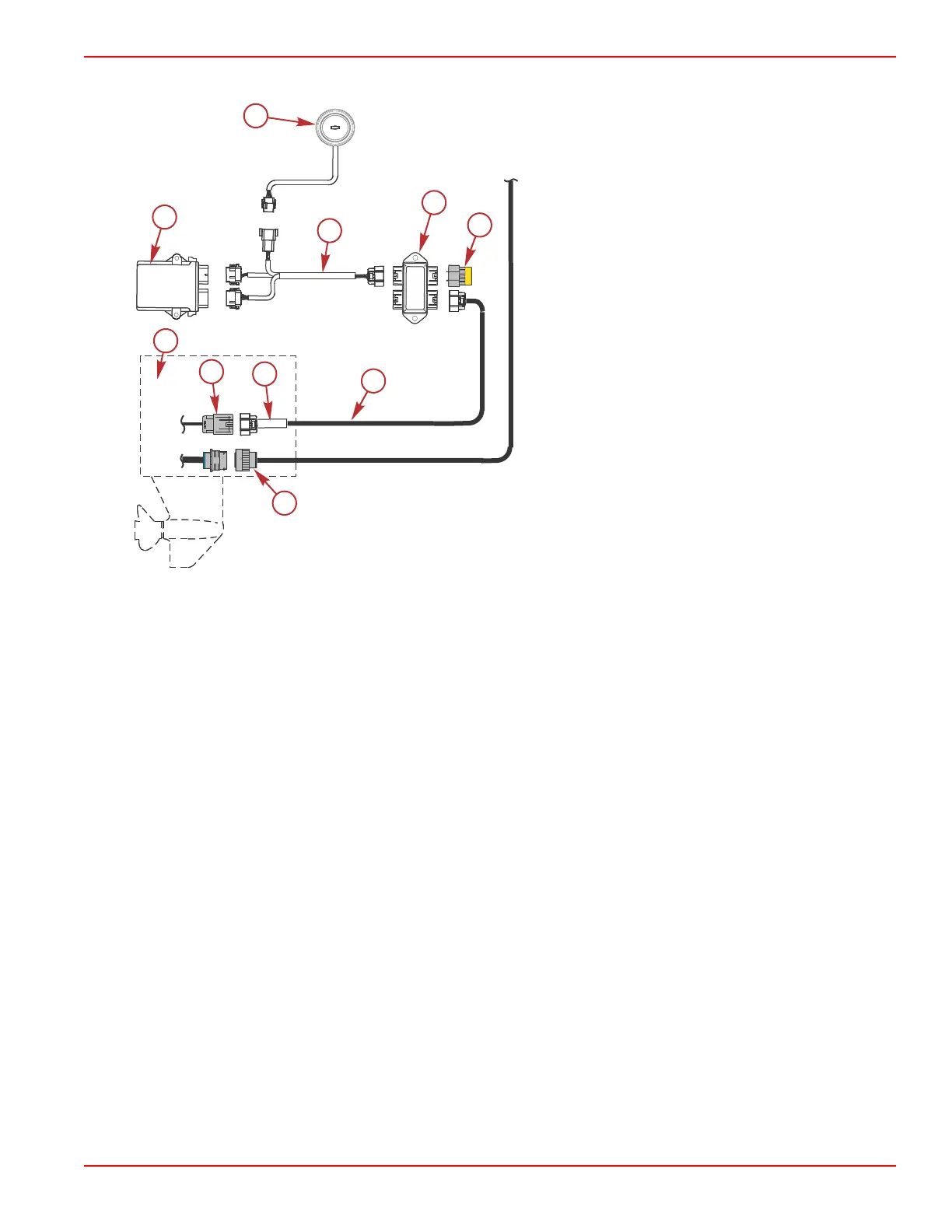

• Refer to the following wiring diagram for the proper wiring connections.
Single engine without 10 pin harness at the helm
a - Docking station
b - TDS wiring harness
c - Junction box
d - Termination resistor
e - SmartCraft 10 pin (one resistor) data harness (blue)
f - Resistor (in‑line)
g - 10 pin connector
h - 14 pin connector
i - Engine
j - TDS module
Troubleshooting
NOTE: The electronic code of the theft deterrent system is unique and is electronically matched to the engine. If the engine is
ever removed from the boat and fitted to another craft, the engine may require reprogramming. Contact your authorized
Mercury dealer.
