Section 2 - Installation
Page 18 90-8M0072763 eng JUNE 2012

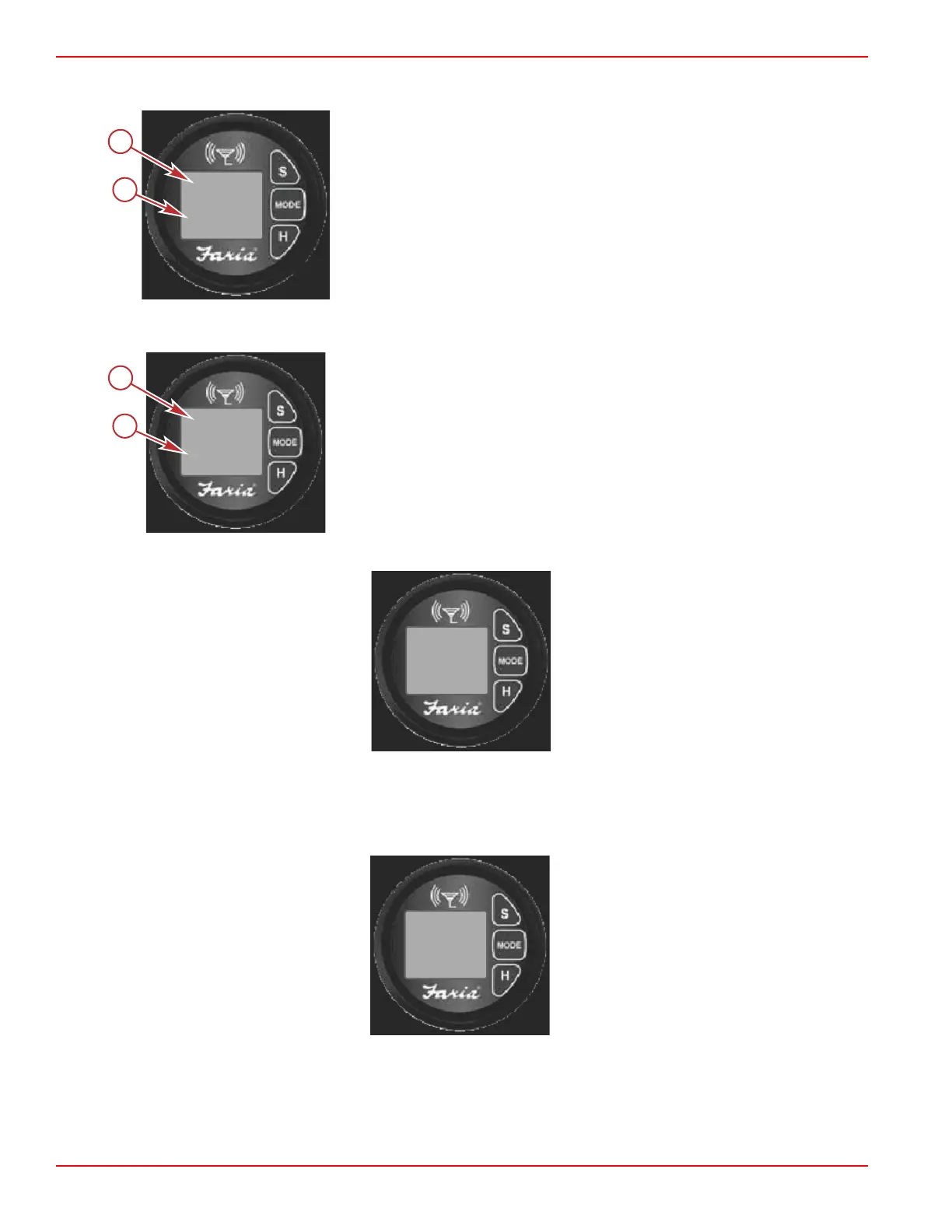

c. Main battery voltage: This display shows the main battery voltage the theft deterrent system is connected to as a four
digit number. A display of 1234 indicates the battery voltage is 12.34 volts.
a - Battery voltage 12.34
b - Main battery
d. Backup battery voltage: A backup battery cannot be incorporated into this version of the TDS. The display shows the
main battery information.
a - Battery voltage 12.34
b - Backup battery
e. When the theft deterrent system is armed (locked) the display will show ALS LCKD.
Alarm system locked
f. When the theft deterrent system is disarmed (unlocked), the ignition key is on and the key fob is inserted into the
docking station. The docking station will show a green light and the display will show ALS UNLK. This screen
confirms the TDS‑Premium is properly connected.
Alarm system unlocked
g. Press the S button to exit the status mode and return to normal display.
