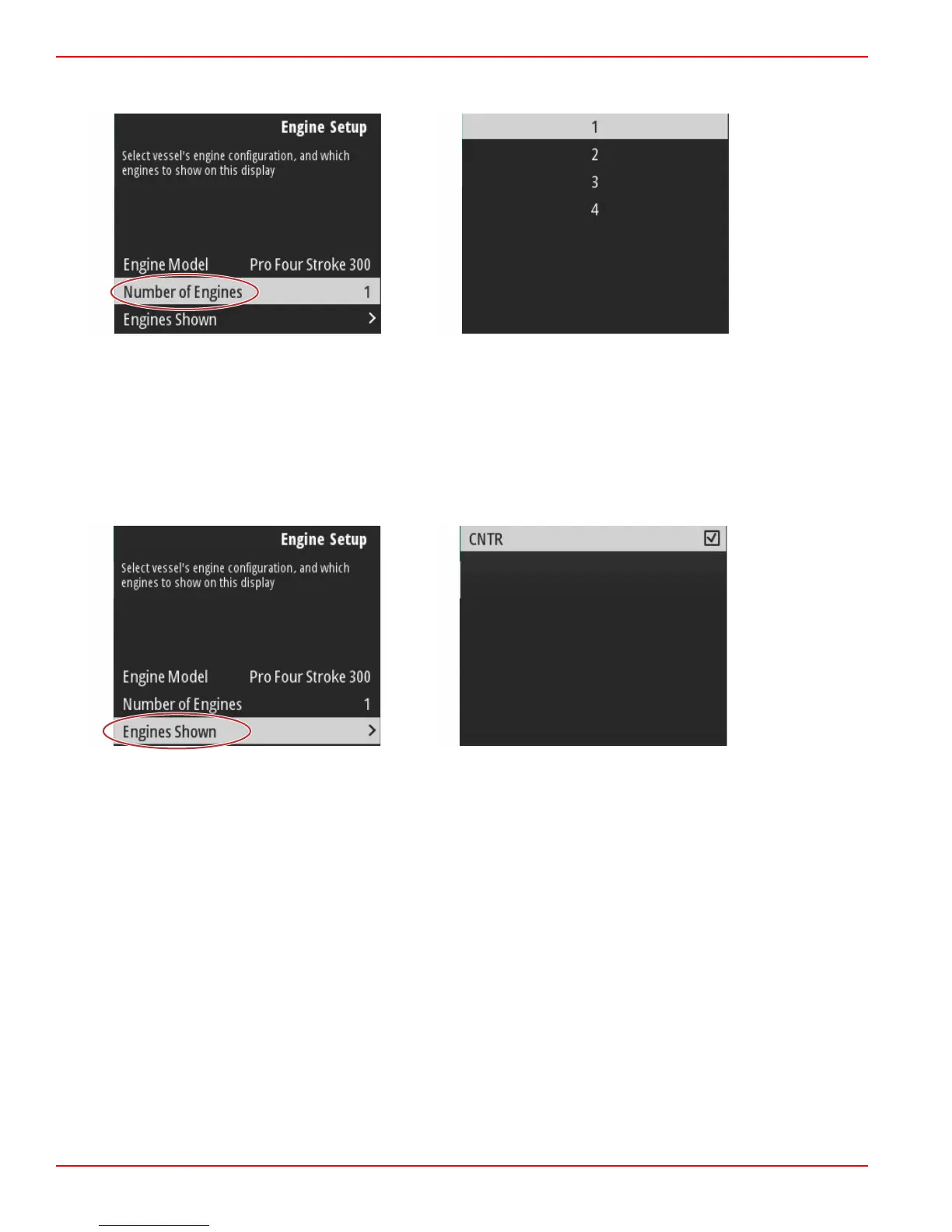

Press the Enter button to bring up the Number of Engines screen. Use the up and down arrow buttons to select the correct
number of engines on the vessel.
Number of engines
Press the Enter button to bring up the Engines Shown selection screen. Depending on the number of engines selected in the
previous step, appropriate options will only be shown. For example, if three engines was selected, the operator would be given
the options of Port, Starboard, and Center. Use the arrow buttons to highlight an option and press the Enter button to activate
the check box of the engines that will be displayed on the VesselView. A maximum of two engines can be displayed on a single
VesselView 403.
When finished with the Engine Setup portion of the Wizard, press the Menu button to return to the Engine Setup screen. Press
the Down arrow button to continue to the next step of the Wizard.
Engines shown
Section 2 - Initial Screens and Setup Wizard
Page 10 90-8M0124182 eng DECEMBER 2017
