• Autopilot status
• RPM
• Gear position

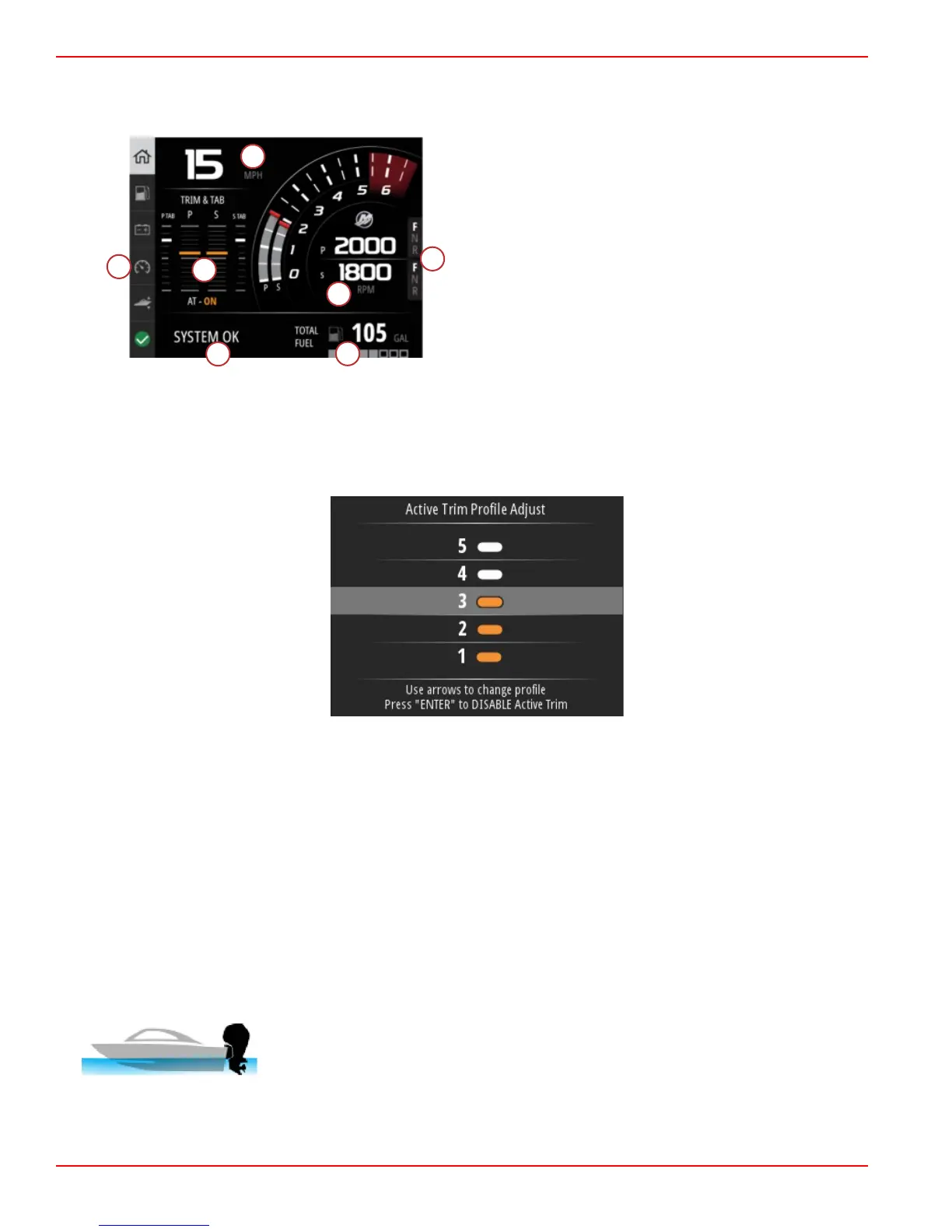

a - Fuel
b - Speed
c - Trim graphs and Active Trim status
d - System status
e - System panel items
f - RPM
g - Gear position
To return to the Home screen from any data level or feature screen, press the Menu button. Depending on the nested level you
are in, it may require that the Menu button be pressed several times.
Data items shown in the left‑hand side System Panel can be customized by navigating to:
Settings>Preferences>Interface>System. A maximum of five data selections can be made.
Active Trim
Additional hardware for your vessel may be required for the Active Trim features to function. See your authorized Mercury
Marine dealer for information on required hardware.
Introduction to Active Trim
Active Trim is Mercury Marine’s patented GPS‑based automatic trim system. This intuitive, hands‑free system continually
adjusts engine or drive trim for changes in operating conditions to improve performance, fuel economy, and ease of operation.
It responds to boat maneuvers with precision and delivers a better overall driving experience. No knowledge of trimming an
engine or drive is needed to take advantage of Active Trim.
• As the boat accelerates, the engine or drive will trim out.
• As the boat decelerates, for example, while making a turn, the engine or drive will trim in.
• Active Trim can be overridden at anytime by using the manual trim buttons.
• Active Trim allows the boat operator to compensate for changes in boat load, driver preferences, and weather conditions
while maintaining full automatic control.
The Active Trim system has four modes of operation:
1. Idle speeds
Maintains the existing trim position.
Section 3 - Main Menu Selections
Page 26 90-8M0124182 eng DECEMBER 2017
