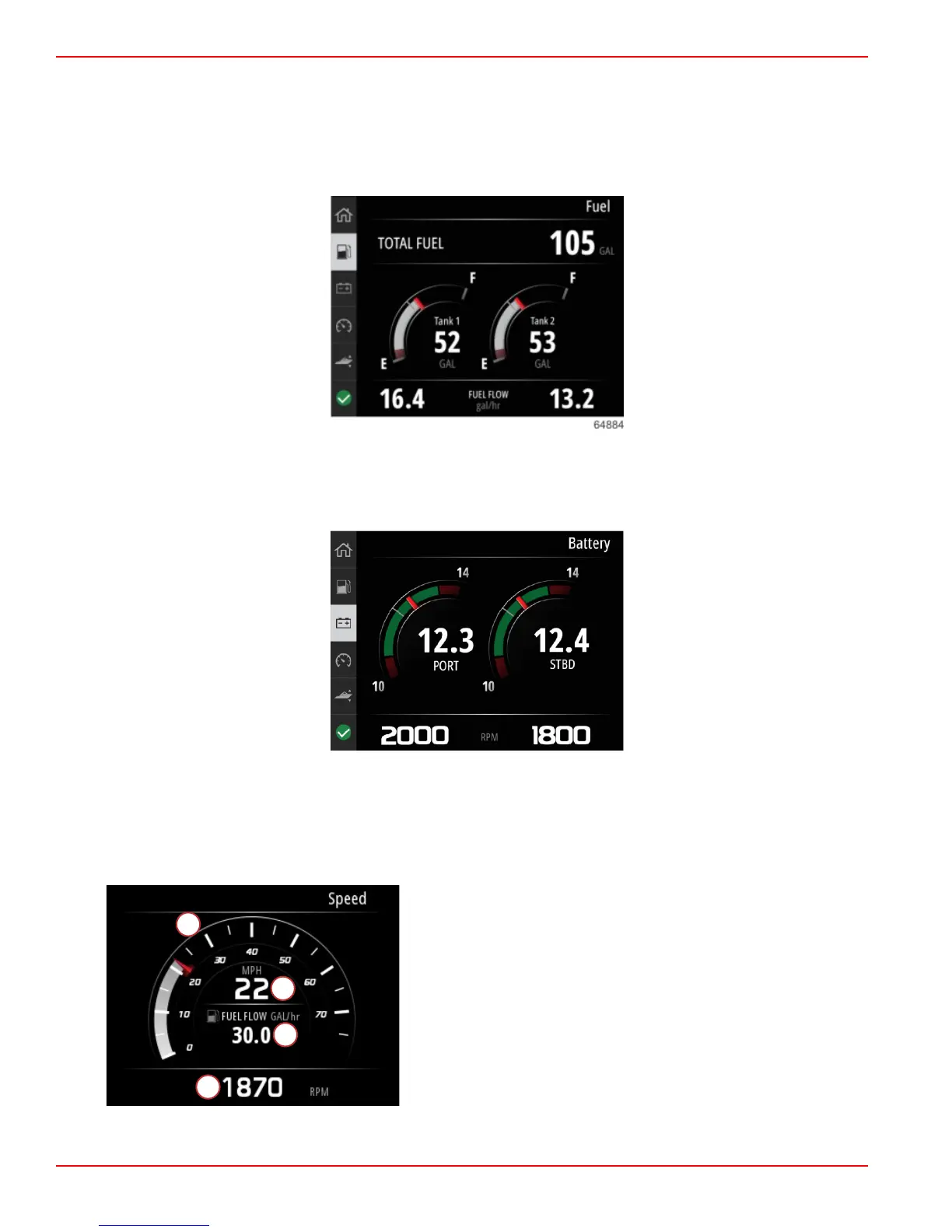

Fuel
The VesselView Fuel screen displays the total fuel based on the current tank data entered in the tank configuration through the
tanks menu or the setup wizard.
The lower portion of the screen will show the fuel flow, or fuel consumption in volume per hour. The volume will be dependent
on the units of measure that was selected during the setup wizard process. Units of measure can be changed at any time by
navigating to Menu>Settings>Preferences>Units.
Battery
The Battery data screen displays the battery voltage in a numeric value as well as a red indicator on a dial type gauge sweep.
Engine RPM will display in the lower portion of the screen.
Battery screen example
Speed
The Speed data screen contains the speed dial sweep, the numeric speed value, the RPM value, as well as the fuel flow rate of
the engines.
a - Speed dial sweep
b - Numeric speed value
c - RPM value
d - Fuel flow rate
Section 3 - Main Menu Selections
Page 30 90-8M0124182 eng DECEMBER 2017
