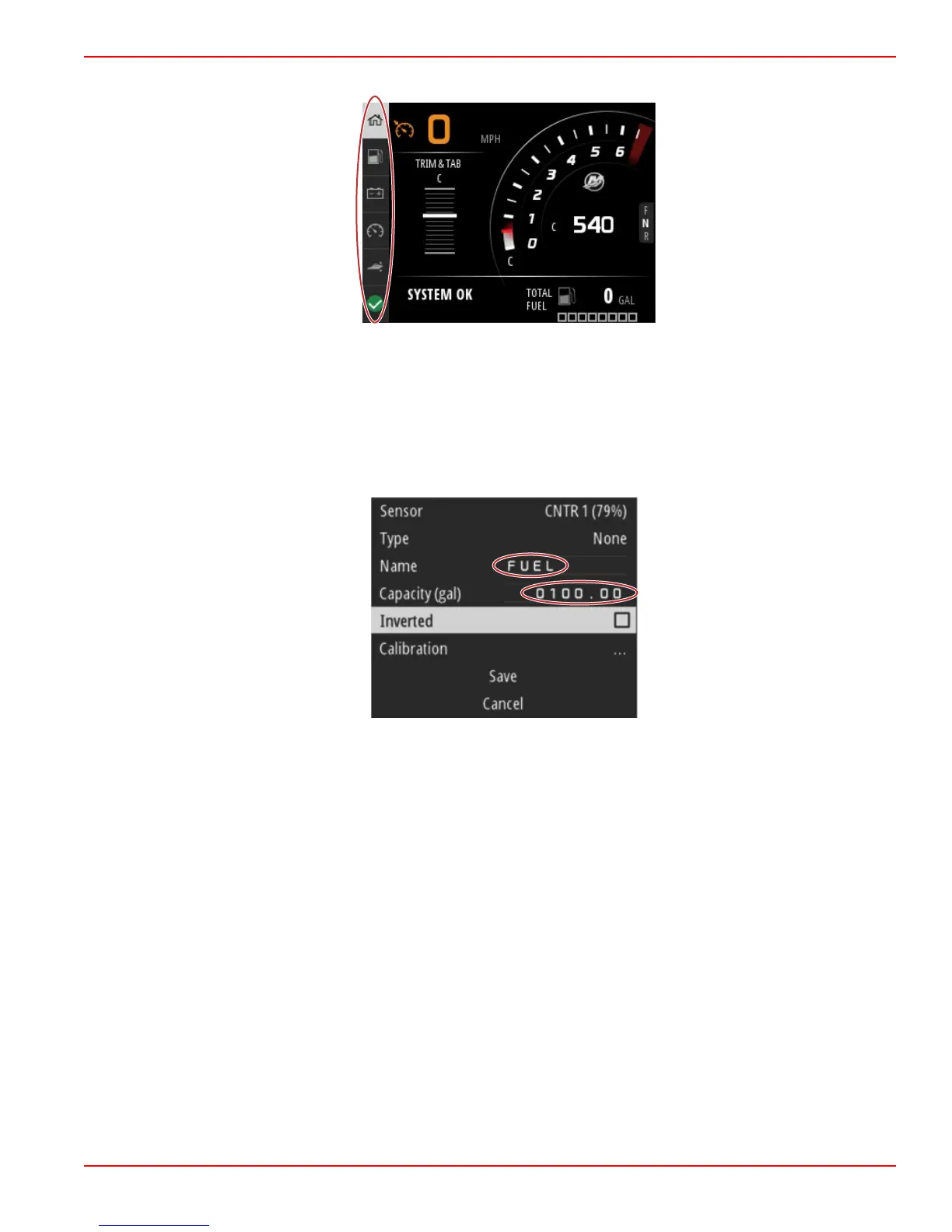

Pressing the Up arrow button until the Home icon is highlighted will return the VesselView to the active display screen.
System Panel
Additional enlarged data screens can be accessed by pressing the Menu button and using the Up arrow or Down arrow to
select any of the menu items. Depending on the power package of the vessel, some options may not be available.
Entering Text and Numbers
Entering text and numbers in active fields can be accomplished through the use of the Up arrow button, Down arrow button,
the Enter button, and the Menu button.
Active fields
1.
Use the Up arrow and the Down arrow buttons to highlight the desired item or field.
2.
Press the Enter button to activate the cursor in the data field.
3.
Press the Enter button one more time to highlight the individual character/number position.
4.
Use the Up arrow and Down arrow buttons to change the character/number.
5.
When the desired character/number is entered, press the Enter button to deactivate the character/number position.
6.
Press the Up arrow button to proceed to the next character/number position. The Down arrow button can be used to
return to previous character/number positions.
7.
When an active data field is complete, press the Menu button to utilize the Up arrow and Down arrow buttons to navigate
on‑screen to the next field, either up or down.
8. Use the previous list of instructions to complete additional active fields for various screens throughout VesselView.
9.
When all fields are completed on a screen, select Save to ensure any changes or additions are kept intact.
Home
The VesselView Home screen contains the following data:
• Fuel
• Speed
• Trim graphs and Active Trim status
• System status
Section 3 - Main Menu Selections
90-8M0124182 eng DECEMBER 2017 Page 25
