Chapter 1 Introduction
1. 2. 2 The Rear Panel

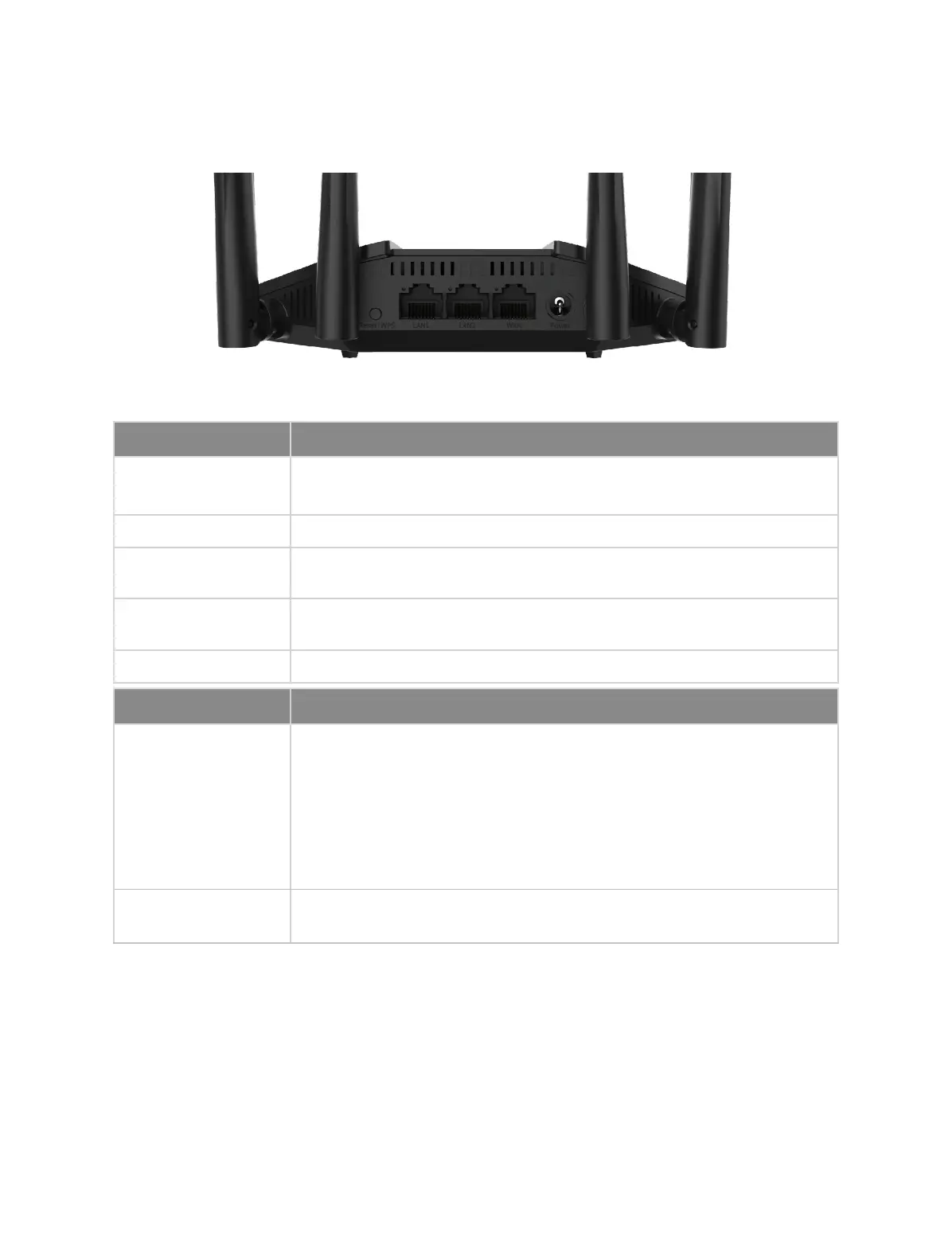

The following items are located on the rear panel (View from left to right).
Item Description
WPS/RESET Button
Press this button for 1 second to use WPS function.
Press and hold this button for more than 5 seconds to reset the router.
LAN1, LAN2 Port These ports connect the router to the local devices.
WAN Port
This port is where you will connect the router to the DSL/Cable Modem, or
Ethernet.
POWER Socket
The power socket is where you will connect the power adapter. Please use the
power adapter provided with this router.
Wireless Antennas To receive and transmit the wireless data.
Item Indication
WAN Port LED
Wireless Router Mode:
Off: The WAN port is not connected.
Flashing: The WAN port is connected, but the internet is not available.
On: The WAN port is connected.
Access Point Mode:
Off: The WAN port is not connected.
On: The WAN port is connected.
LAN Port LED
Off: The LAN port is not connected.
On: The LAN port is connected.

Mercusys MR30G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Receiver sensitivity	11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Firewall security	SPI Firewall, IP/MAC Address Binding
NAT functionality	Port Forwarding, Port Triggering, UPnP, DMZ
Security algorithms	WPA-PSK, WPA2-PSK
Supported network protocols	PPPoE/L2TP/PPTP
Cables included	LAN (RJ-45)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power source type	AC
Ethernet LAN (RJ-45) ports	3
Package type	Box
Product type	Tabletop router
Product color	Black
LED indicators	Status

Weight and Dimensions

Depth	125.9 mm
Width	159.7 mm
Height	37.1 mm
