Mercusys MR30G User Manual

53
Chapter 4 Congure the Router in Wireless Router Mode
• Ping is used to test the connectivity between the router and the tested host, and
measure the round-trip time.
• Tracert is used to display the route (path) your router has passed to reach the
tested host, and measure transit delays of packets across an Internet Protocol
network.
2 ) Enter the IP Address or Domain Name of the tested host.
3 ) Modify the Ping Count number and the Ping Packet Size. It’s recommended to
keep the default value.
4 ) If you have chosen Tracert, you can modify the Traceroute Max TTL. It’s
recommended to keep the default value.
4. Click START to begin the diagnostics.

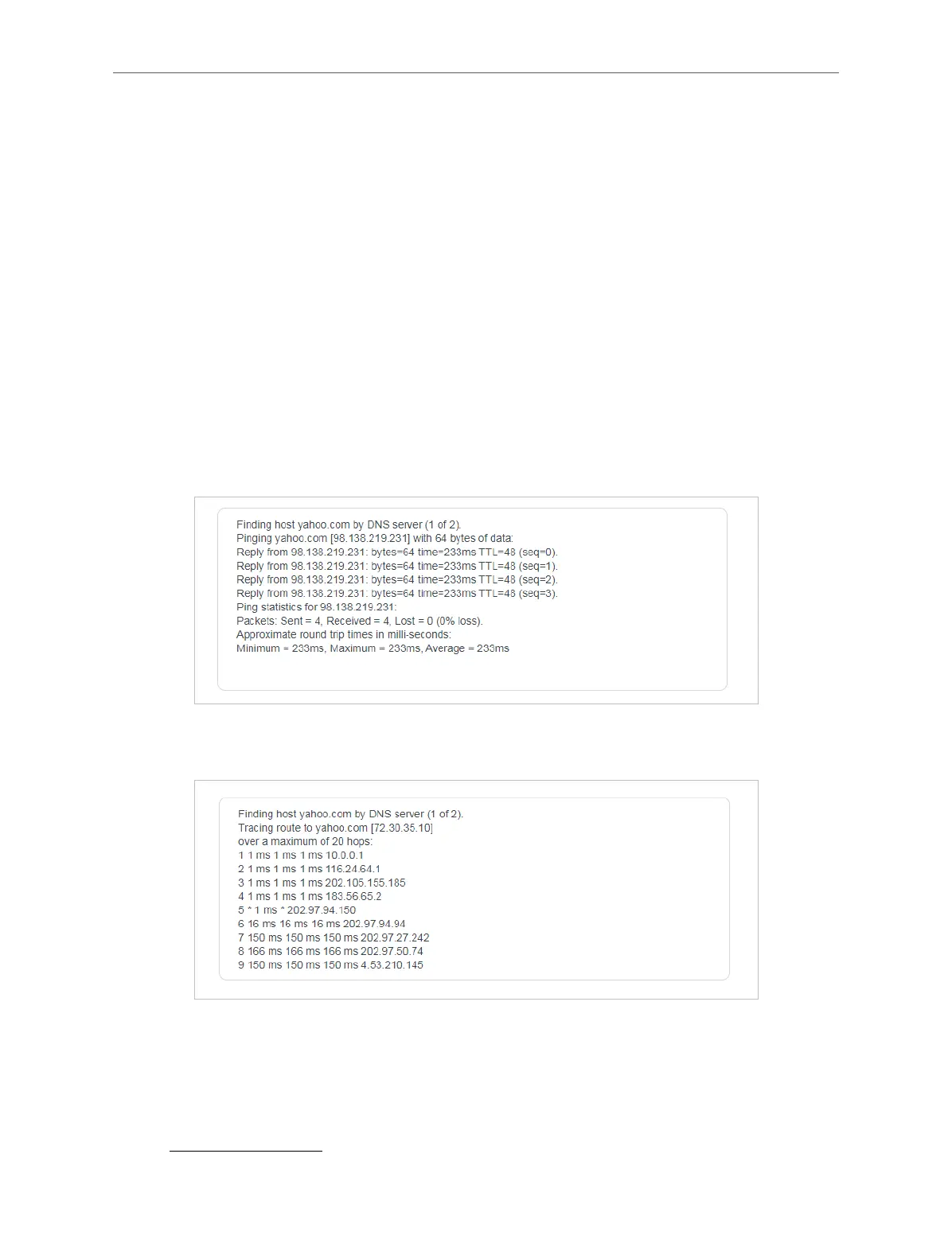

The figure below indicates the proper connection between the router and the Yahoo server
(www.Yahoo.com) tested through Ping.
The figure below indicates the proper connection between the router and the Yahoo server
(www.Yahoo.com) tested through Tracert.
4. 10. 8. Time
This function allows you to set the time manually or to configure automatic time
synchronization. The router can automatically update the time from an NTP server via the
internet.
1. Visit http://mwlogin.net, and log in with the password you set for the router.

Mercusys MR30G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Receiver sensitivity	11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Firewall security	SPI Firewall, IP/MAC Address Binding
NAT functionality	Port Forwarding, Port Triggering, UPnP, DMZ
Security algorithms	WPA-PSK, WPA2-PSK
Supported network protocols	PPPoE/L2TP/PPTP
Cables included	LAN (RJ-45)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power source type	AC
Ethernet LAN (RJ-45) ports	3
Package type	Box
Product type	Tabletop router
Product color	Black
LED indicators	Status

Weight and Dimensions

Depth	125.9 mm
Width	159.7 mm
Height	37.1 mm
