Mercusys MR30G User Manual

06
Chapter 2 Connect to the Internet

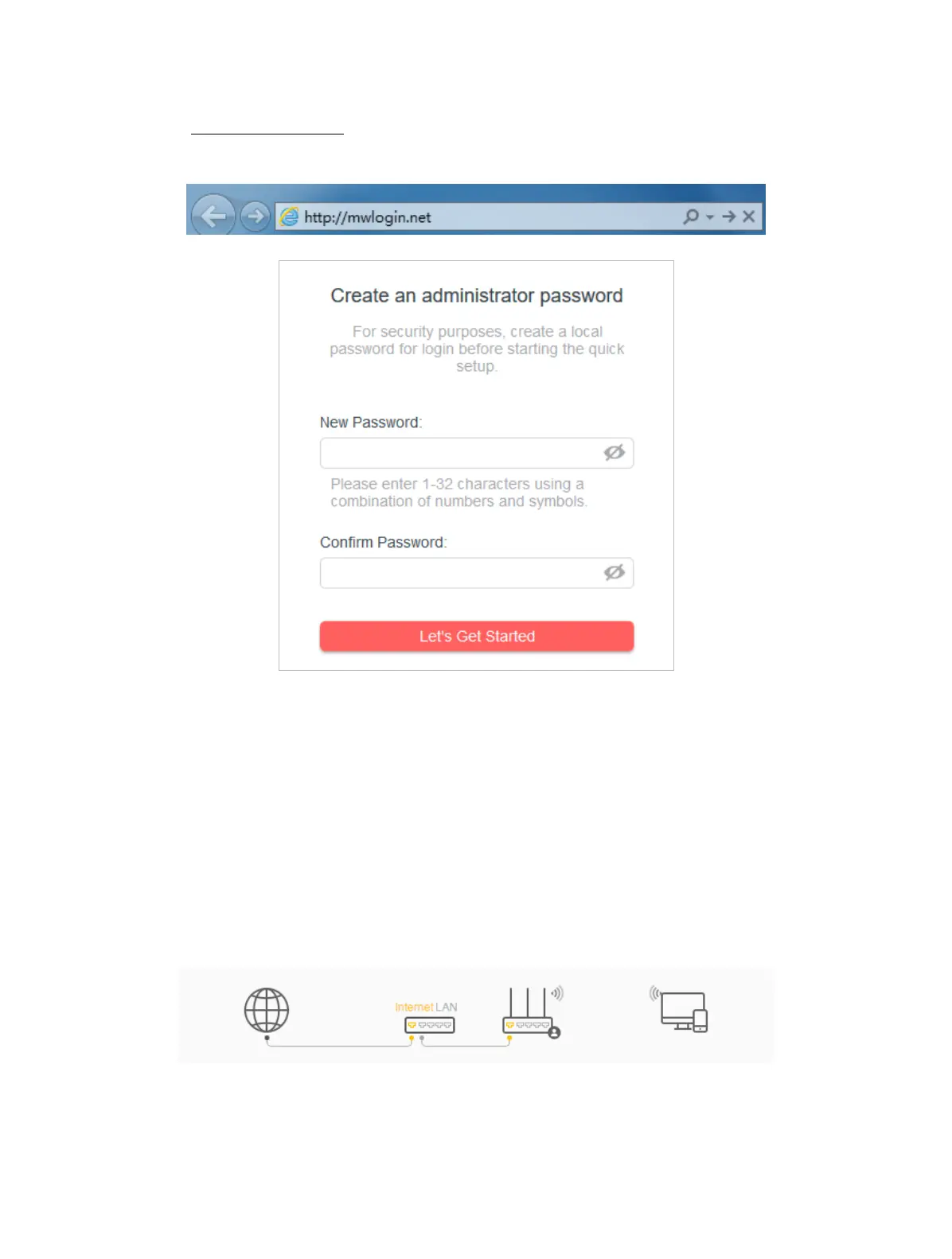

3. Enter http://mwlogin.net in the address bar of a web browser. Create a password to log
in.
Note:
If the above screen does not pop-up, it means that your IE Web-browser has been set to a proxy. Go to menu Tools >
Internet Options > Connections > LAN Settings, in the screen that appears, untick the Using Proxy checkbox, and click
OK.
4. Follow the Quick Setup to set up the internet connection.
5. Enjoy! For wireless devices, you may have to reconnect to the wireless network if you
have customized the SSID (wireless name) and password during the configuration.
2. 2. 2. Access Point Mode
In this mode, the router changes an existing wired network into a wireless one.
1. Connect the power adapter to the router.
2. Connect the router’s WAN port (recommended) to your wired host router’s LAN port via
an Ethernet cable as shown above.

Mercusys MR30G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Receiver sensitivity	11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Firewall security	SPI Firewall, IP/MAC Address Binding
NAT functionality	Port Forwarding, Port Triggering, UPnP, DMZ
Security algorithms	WPA-PSK, WPA2-PSK
Supported network protocols	PPPoE/L2TP/PPTP
Cables included	LAN (RJ-45)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power source type	AC
Ethernet LAN (RJ-45) ports	3
Package type	Box
Product type	Tabletop router
Product color	Black
LED indicators	Status

Weight and Dimensions

Depth	125.9 mm
Width	159.7 mm
Height	37.1 mm
