19
Chapter 4 Congure the Router in Wireless Router Mode
Subnet Mask - An address code that determines the size of the network. Normally
255.255.255.0 is used as the subnet mask.
Note:
If you have changed the IP address, you must use the new IP address to log in.
If the new IP address you set is not in the same subnet as the old one, the IP address pool in the DHCP Server will be
configured automatically, but the Virtual Server and DMZ Host will not take effect until they are re-configured.

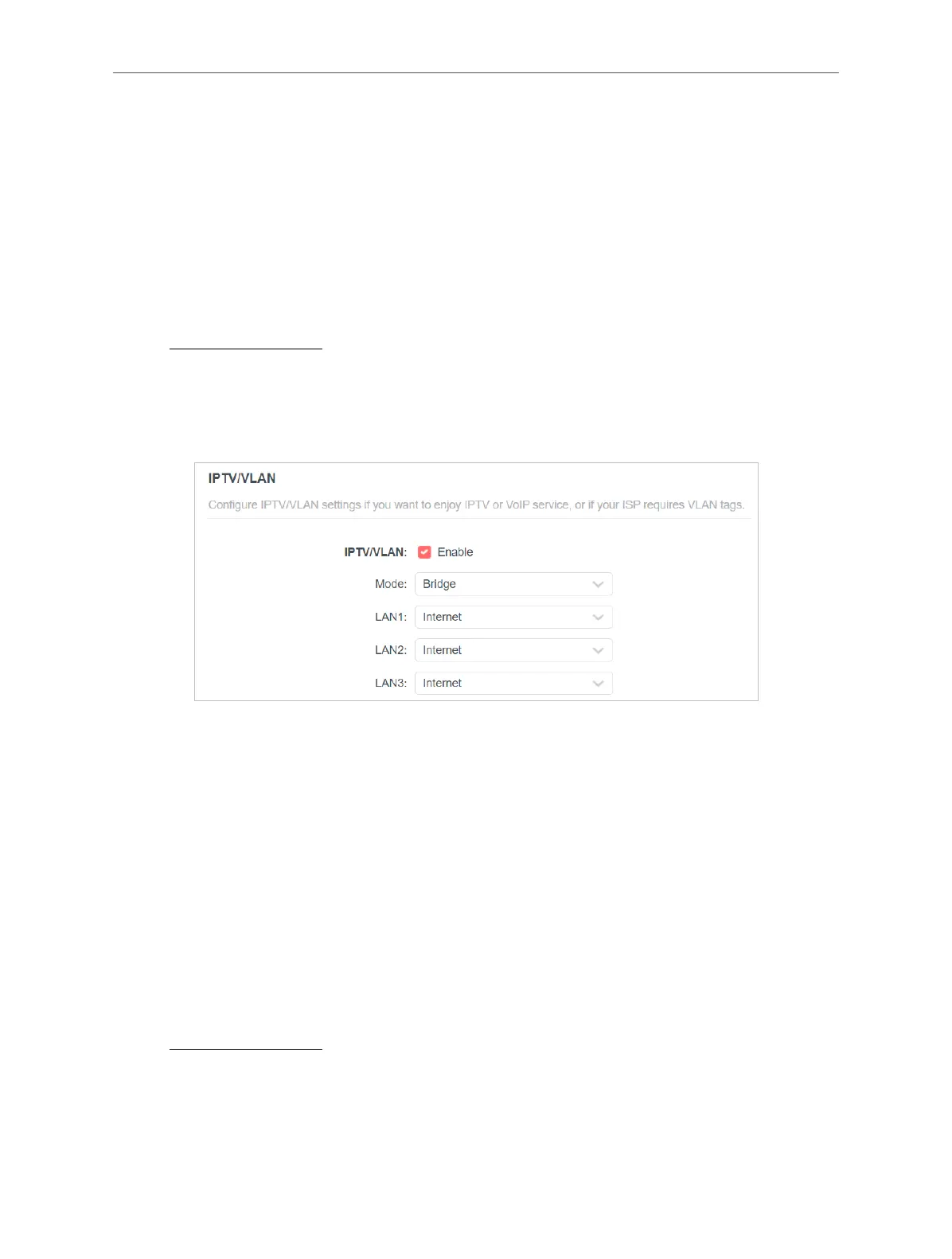

4. 2. 6. IPTV/VLAN
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Network > IPTV/VLAN.
3. Configure IPTV/VLAN settings if you want to enjoy IPTV or VoIP service, or if your ISP
requires VLAN tags.
IPTV/VLAN - Select to enable the IPTV feature.
Mode - Select the appropriate mode according to your ISP.
LAN 1/2/3 - Assign your LAN port to whether function as the internet supplier or as the
IPTV supplier.
4. 2. 7. DHCP Server
By default, the DHCP (Dynamic Host Configuration Protocol) Server is enabled and the
router acts as a DHCP server; it dynamically assigns TCP/IP parameters to client devices
from the IP Address Pool. You can change the settings of DHCP Server if necessary, and
you can reserve LAN IP addresses for specified client devices.
To specify the IP address that the router assigns:
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Network > DHCP Server and locate the DHCP Server section.

Other manuals for Mercusys MR30G

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MR30G and is the answer not in the manual?

Mercusys MR30G Specifications

General IconGeneral
DSL WANNo
Ethernet WANYes
WAN connection typeRJ-45
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1167 Mbit/s
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Antennas quantity4
Antenna gain level (max)5 dBi
Cabling technology10/100/1000Base-T(X)
Receiver sensitivity11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Firewall securitySPI Firewall, IP/MAC Address Binding
NAT functionalityPort Forwarding, Port Triggering, UPnP, DMZ
Security algorithmsWPA-PSK, WPA2-PSK
Supported network protocolsPPPoE/L2TP/PPTP
Cables includedLAN (RJ-45)
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Power source typeAC
Ethernet LAN (RJ-45) ports3
Package typeBox
Product typeTabletop router
Product colorBlack
LED indicatorsStatus
Weight and Dimensions IconWeight and Dimensions
Depth125.9 mm
Width159.7 mm
Height37.1 mm
