Mercusys MW302R User Manual

19
Chapter 4

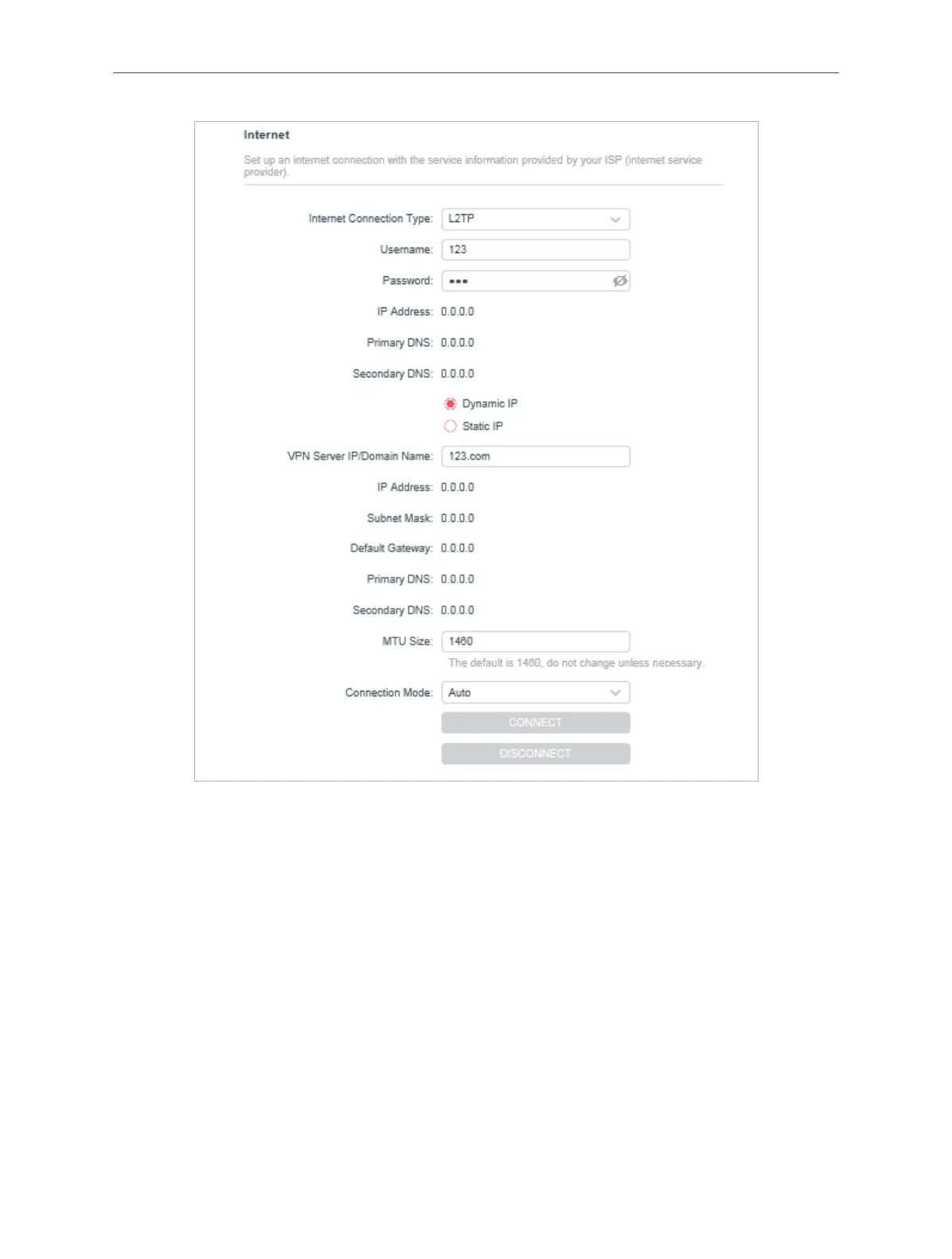

• Username/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.
• VPN Server IP/ Domain Name - Enter the VPN server’s IP address or domain name
provided by your ISP.
• MTU Size - The default MTU size is “1460” bytes, which is usually fine. It is not
recommended that you change the default MTU Size unless required by your ISP.
• Connection Mode
• Auto - In this mode, the internet connection reconnects automatically any it gets
disconnected.
• On Demand - In this mode, the internet connection will be terminated automatically
after a specified inactivity period (Max Idle Time) and be re-established when you
attempt to access the internet again.

Mercusys MW302R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	20 dBmW
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Security algorithms	WPA-PSK, WPA2-PSK
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	94 mm
Width	114 mm
Height	26 mm
