Mercusys MW302R User Manual

20
Chapter 4
• Manual - In this mode, the internet connection is controlled manually by clicking the
Connect/Disconnect button. This mode also supports the Max Idle Time function
as On Demand mode. Enter a maximum time (in minutes), the internet connection
can be inactive before it is terminated into the Max Idle Time. The default value is
15 minutes. If you want the internet connection remains active all the time, enter 0
(zero).
Note:
Sometimes the connection cannot be terminated although you have specified the Max Idle Time because some applications
are visiting the internet continually in the background.

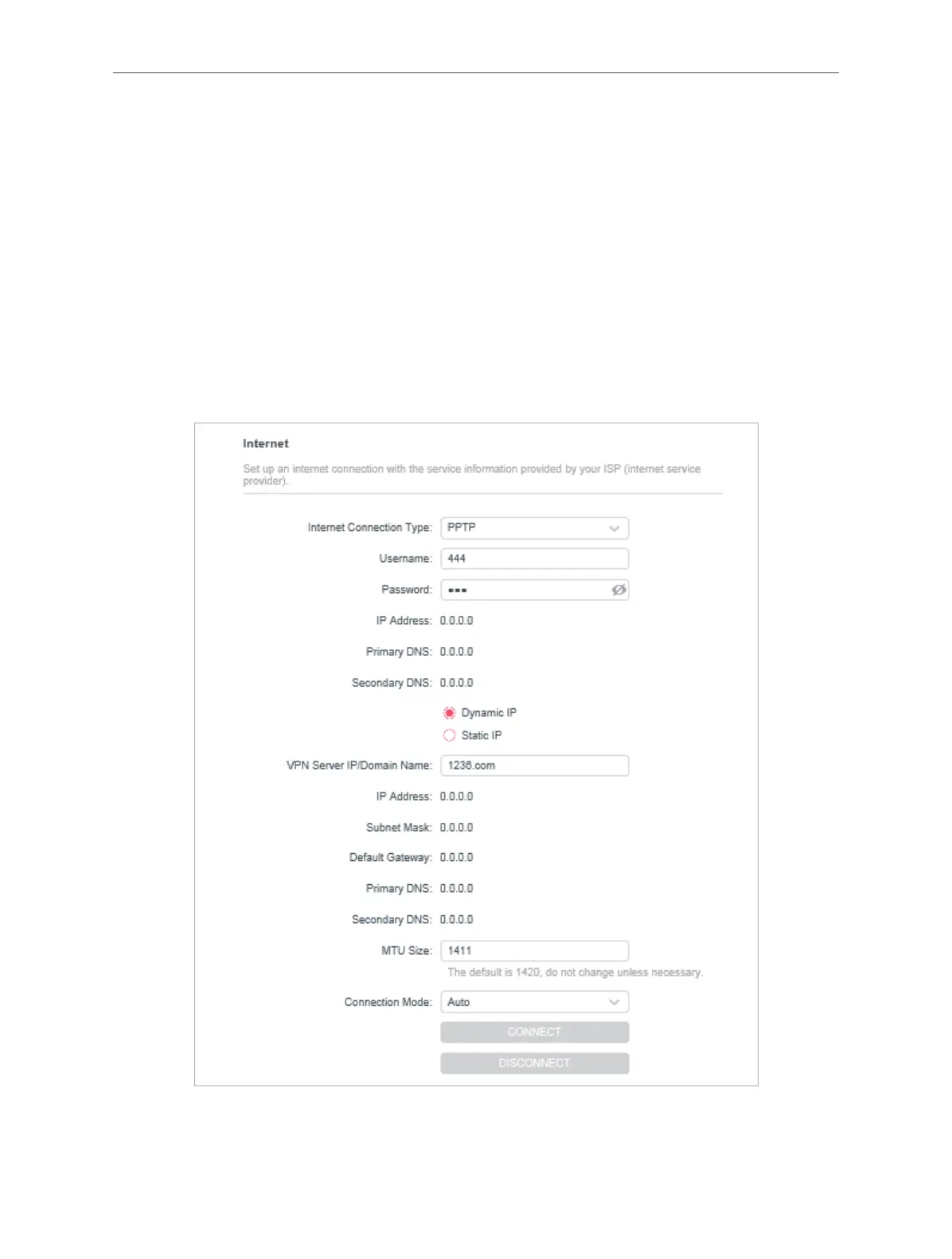

PPTP
If your ISP provides PPTP connection, please select PPTP.
• Username/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.

Mercusys MW302R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	20 dBmW
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Security algorithms	WPA-PSK, WPA2-PSK
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	94 mm
Width	114 mm
Height	26 mm
