MI 3201 TeraOhm 5 kV Plus Measurements
21
5.4 Voltage measurement
Selecting this function displays the following states (initial state and state with results
after completion of the measurement). See fig. 10 below.

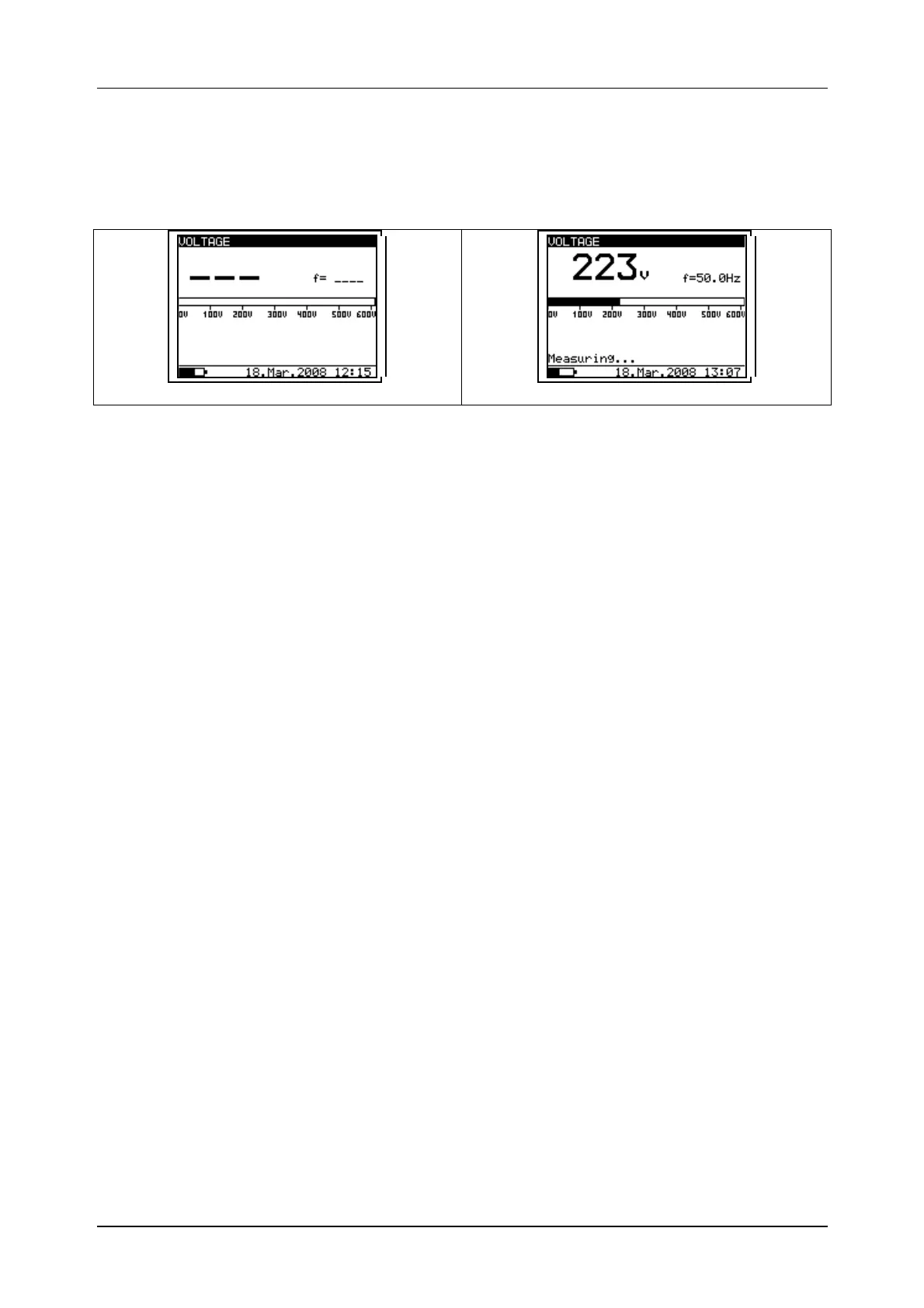

Fig. 10. Voltage function display states
Measurement procedure:
- Connect the test leads to the instrument and to the measured source.
- Press the START key to start the measurement, continuous measurement starts to
run.
- Press the START key again to stop the measurement.
- The result (see the right picture in Fig 10) can optionally be saved by pressing the
MEM key twice, see chapter 6.1. Store, Recall and Clear Operation.
Warning!
Refer to Warnings chapter for safety precautions!
