METREL TeraOhm 5kV Plus User Manual

MI 3201 TeraOhm 5 kV Plus Instrument Description

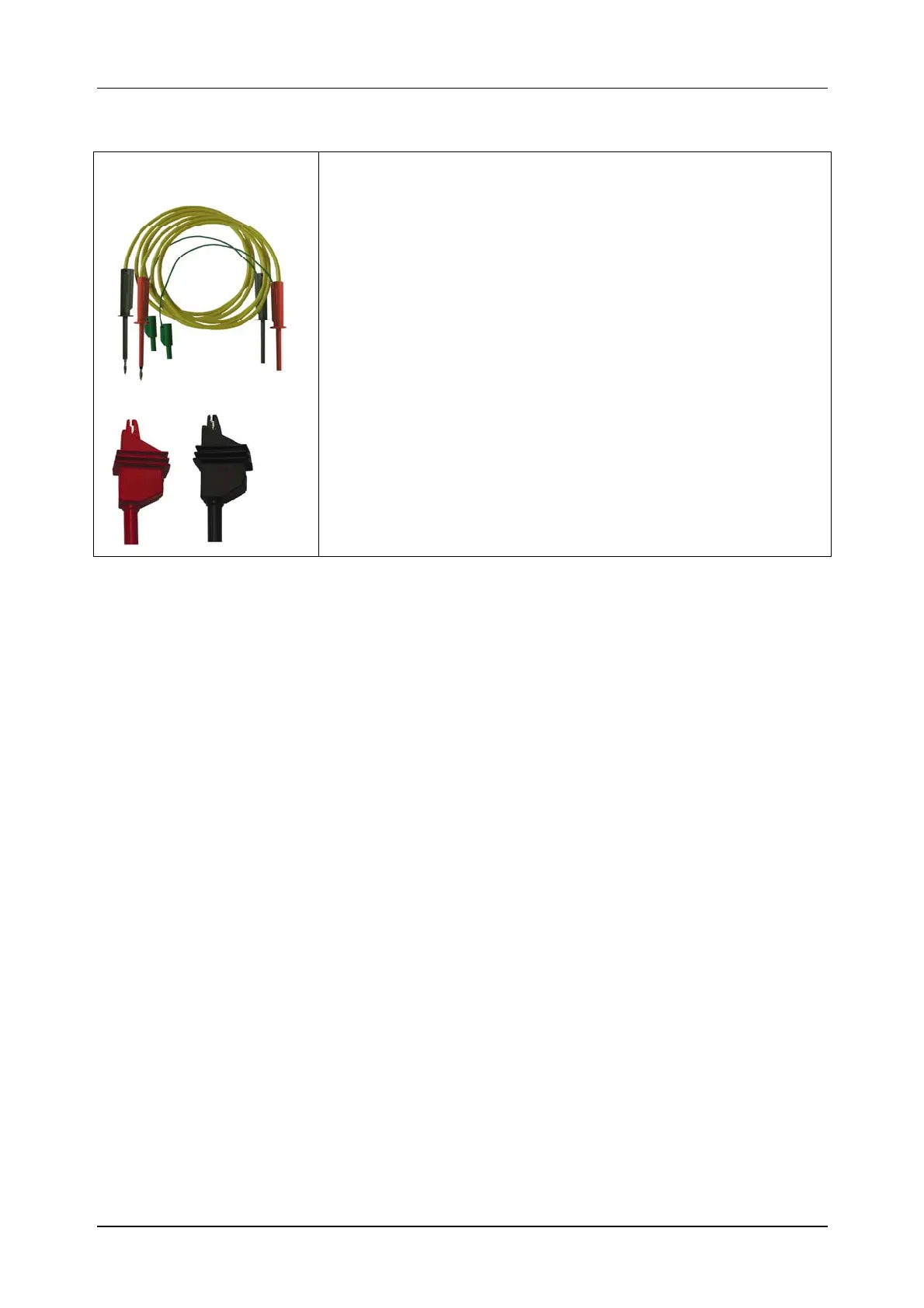

2.5.1 High voltage shielded test tips with High voltage alligator clips
Application notes:
These test leads is designed for diagnostic testing of
insulation and also for hand held testing of insulation.
Insulation ratings:
- High voltage banana connector (red, black): 10kV d.c
(basic insulation);
- High voltage tip (red, black): 10kV d.c (basic insulation);
- Alligator (red, black): 10kV d.c (basic insulation);
- Guard banana connector (green): 600V CAT IV (double
insulation);
- Cable (yellow): 12kV (shielded).
2.5.2 Guard test lead with alligator clips
Insulation ratings:
- Guard test lead with banana connectors (green): 600V CAT IV (double insulation);
- Alligator (green): 600V CAT IV (double insulation).
8

METREL TeraOhm 5kV Plus Specifications

General

Brand	METREL
Model	TeraOhm 5kV Plus
Category	Test Equipment
Language	English
