MI 3201 TeraOhm 5 kV Plus Maintenance
43
Turn the power off and disconnect any measurement accessories or mains
supply cable connected to the instrument before opening the battery cover to
avoid electric shock.
Remove the battery cover.
All six cells have to be replaced and they have to be of the same type.
Insert the batteries correctly (see Fig. 32), otherwise the test instrument will
not operate and battery may be discharged!
Replace the battery cover and fixed the cover back in place.
The Instrument will only work when rechargeable batteries are inside the
instrument.
Nominal power supply voltage is 7.2 V DC. Use six NiMH cells with C size (dimensions:
diameter = 26 mm, height = 46 mm). See the next Fig. 32 for correct polarity of the
batteries.

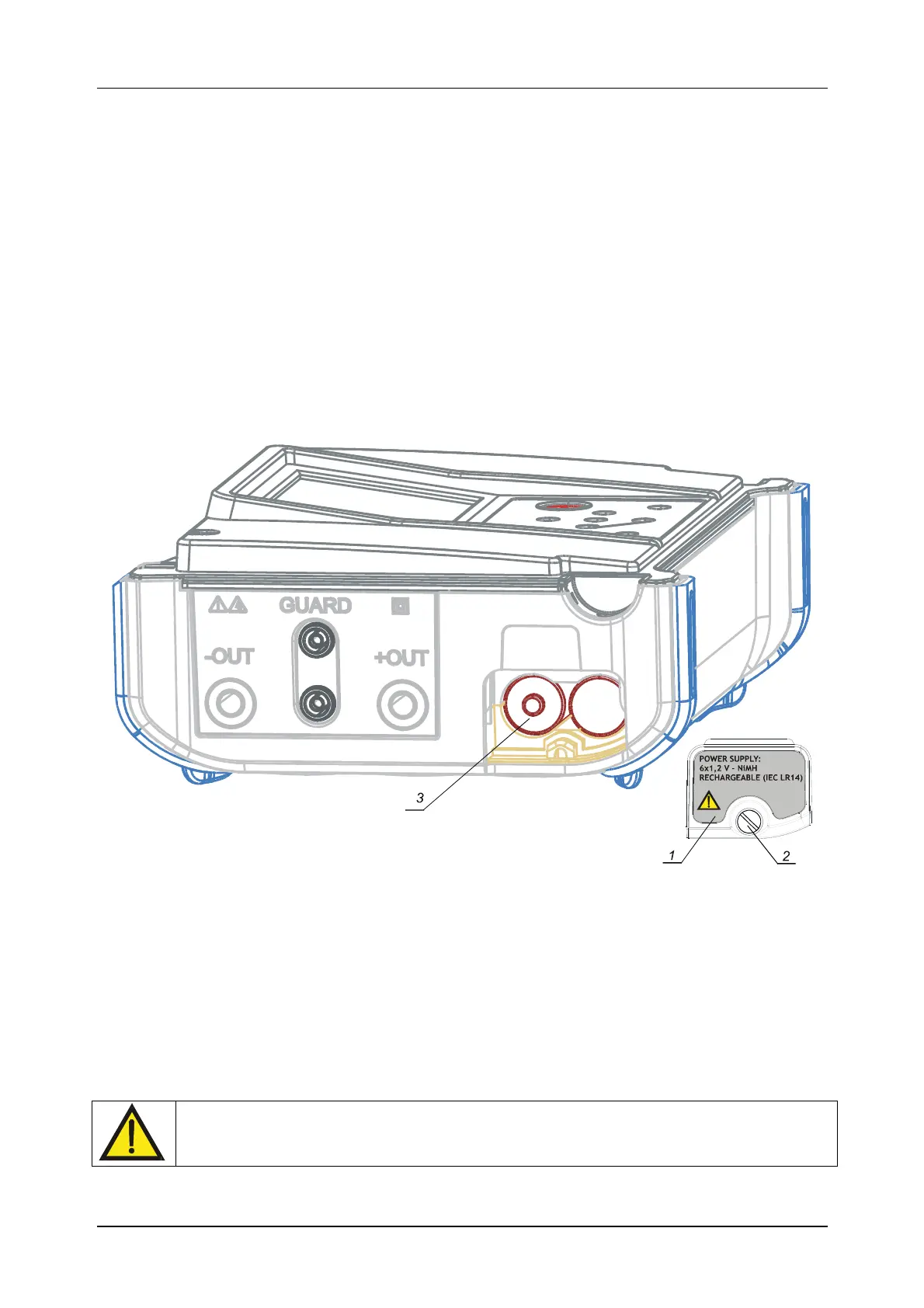

Fig. 32. Correct polarity of inserted batteries
1.......... Battery cover.
2.......... Screw (unscrew to replace the batteries).
3.......... Correct inserted batteries.
Ensure batteries are used and disposed of in accordance with Manufacturers guidelines
and in accordance with Local and National Authority guidelines.
DISCONNECT ALL TEST LEADS AND SWITCH OFF THE
INSTRUMENT BEFORE REMOVING THE BATTERY COVER!
HAZARDUS VOLTAGE!
