Metrohm 794 Basic Titrino User Manual

5.1. Setting up and connecting the instruments
794 Basic Titrino
150
5.1.2 Connection of a printer
A variety of printers can be connected to the RS232 interface of the
Titrino. If you connect a printer other than one of those mentioned
below, ensure that the Epson mode is emulated or that it uses the in-
ternational character set following the IBM Standard Table 437 and
IBM-compatible graphics control characters.
If a balance is connected at the same COM of the Titrino as a
printer, you need the 6.2125.030 Adapter. The printer must be
pluged into the "data out" receptable of the adapter. It can be oper-
ated only with the simple hardware handshake (HWs) or without
handshake.

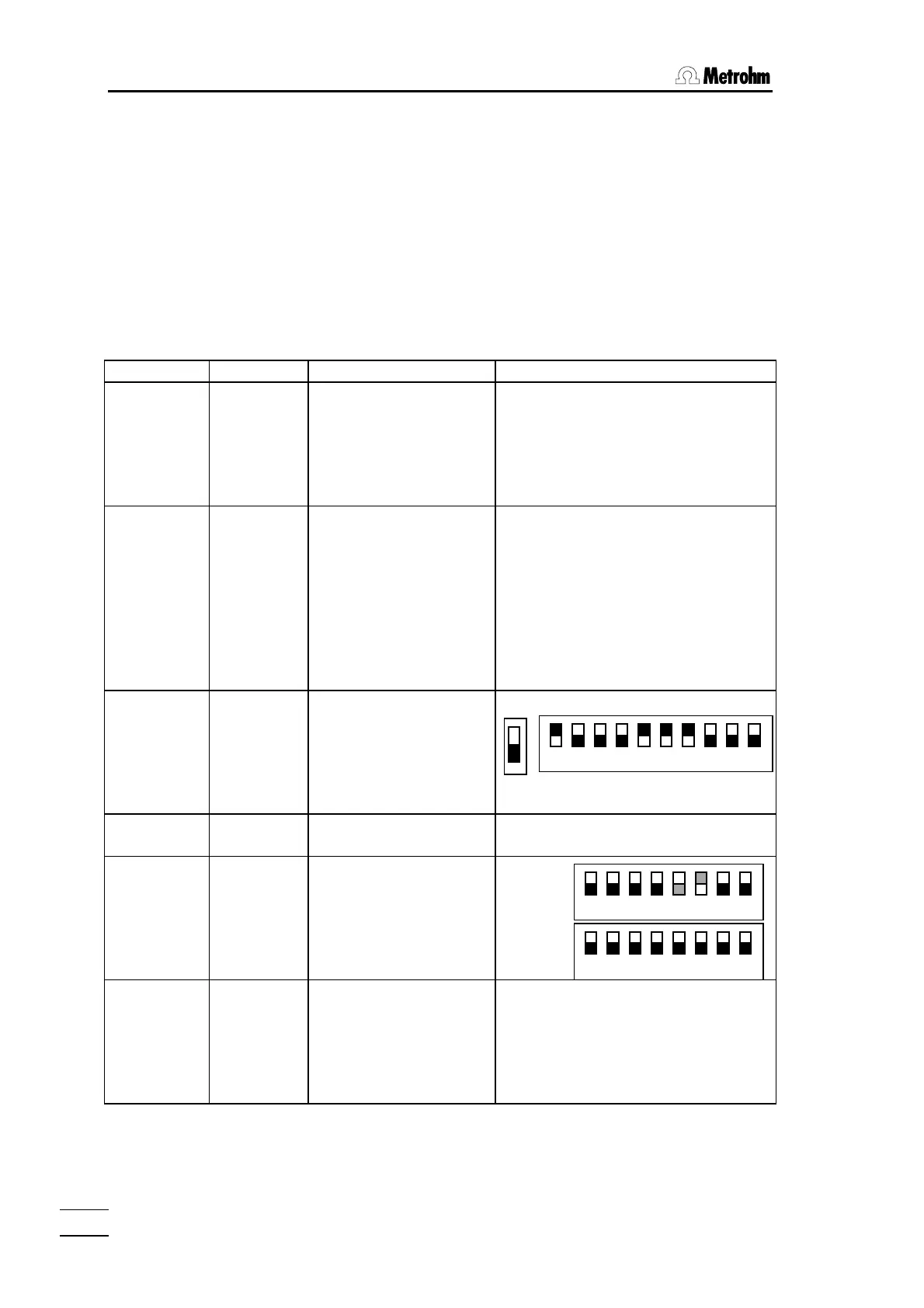

Printer Cable Settings on Titrino Settings on Printer
Seiko
DPU-414
6.2125.130 baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
send to: Seiko
none
Custom
DP40-S4N
6.2125.130 baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: HWs
send to: Citizen
none, pre-set on Metrohm version
IDP-560 EMULATION
FONT MAP =GERMANY
PRINT=REVERSE
LITTLE
CR CODE=VOID
CR AFTER B :FULL=VOID
CR ON b. EMPTY=VALID
BUFFER 1K BYTE
BAUD RATE=9600
PROTOCOL=8,N,1
FLOW CONTROL CTS-RTS
Citizen
iDP562 RS
6.2125.050 baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
send to: Citizen
Epson LX-
300
6.2125.050 as above, but
send to: Epson
see printer manual
HP Desk Jet
with serial
interface
6.2125.050 baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
send to: HP
HP Desk Jet
with parallel
interface
2.145.0330
RS232/
Parallel
Converter
baud rate: 9600
data bit: 8
stop bit: 1
parity none
handshake: HWs
send to: HP
see printer manual
ON
1 2 3 4 5 6 7 8 9 10
SSW1
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B:
A4 paper
A:
