Metrohm 794 Basic Titrino - 6.3 User methods

6.2 Pin assignment of the "Remote" socket
794 Basic Titrino
161

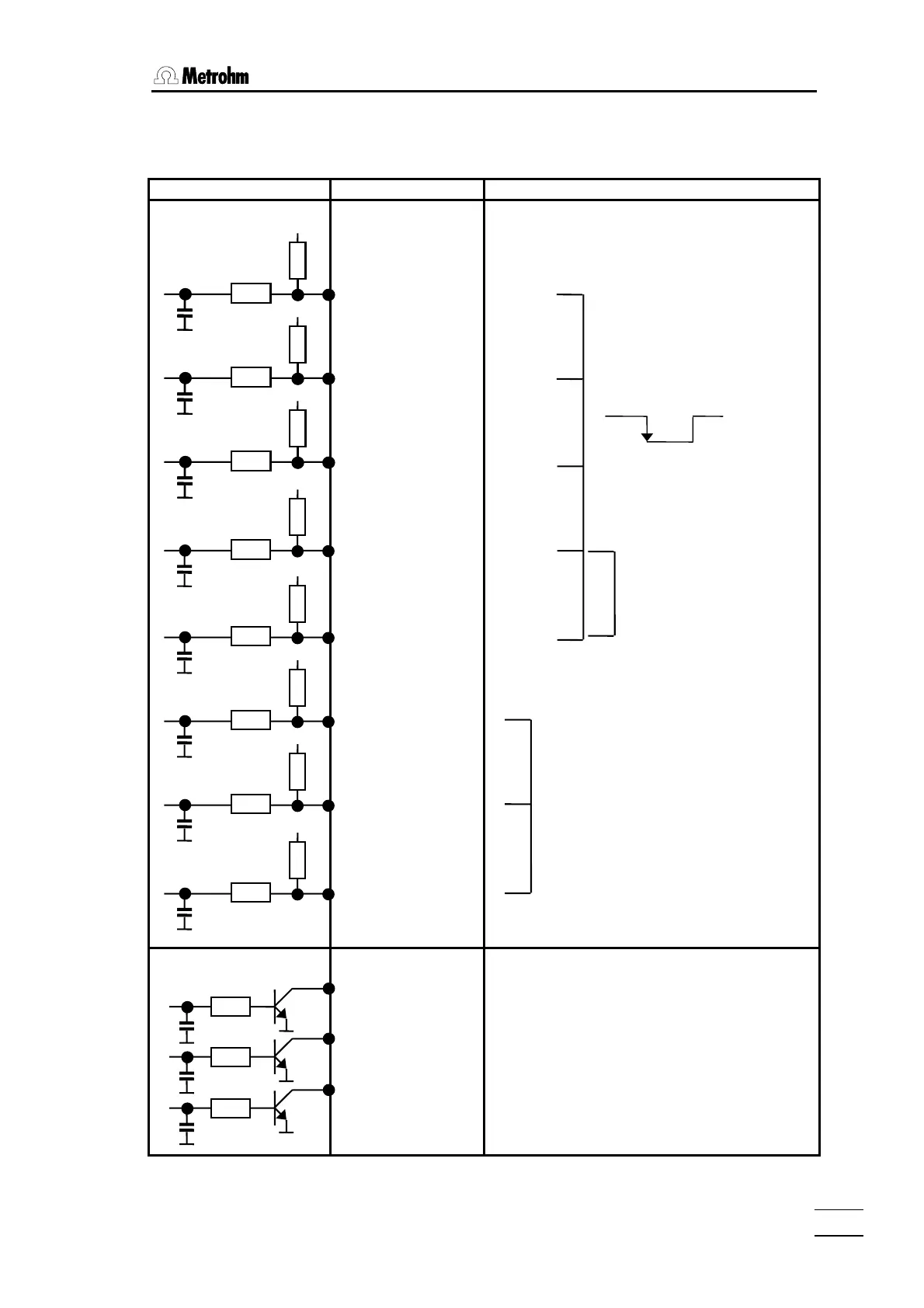

6.2 Pin assignment of the "Remote" socket
external Function
Inputs
pin 21 (Input 0)
pin 9 (Input 1)
pin 22 (Input 2)
pin 10 (Input 3)
pin 23 (Input 4)
pin 11 (Input 5)
pin 24 (Input 6)
pin 12 (Input 7)
Start
Stop
Enter
Clear
Sample
ready
Outputs
pin 5 (Output 0)
pin 18 (Output 1)
pin 4 (Output 2)
Ready
inactive
Conditioning ok,
active if Cond.ok
Titration,
active during titration
Functions see page 163
t
p
> 100 ms
t
p
+5 V
+5 V
+5 V
+5 V
+5 V
+5 V
+5 V
+5 V
+5 V
+5 V
+5 V
not used
A
re not used in titration
sequences
