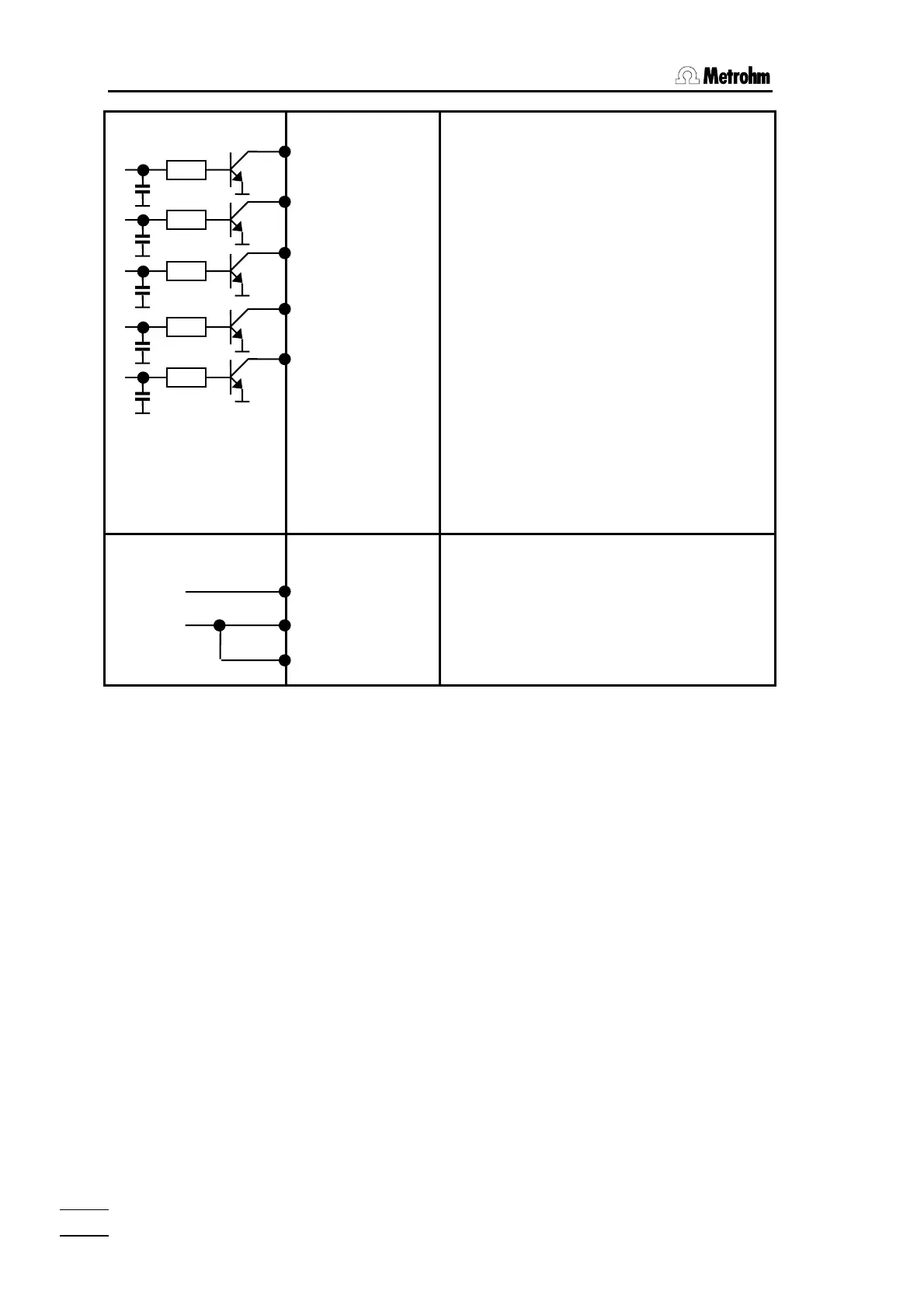

6.2. Pin assignment of the "Remote" socket
794 Basic Titrino
162
Outputs
pin 17 (Output 3)
pin 3 (Output 4)
pin 16 (Output 5)
pin 1 (Output 6)
pin 2 (Output 7)
End of determination
EOD
L4 in TIP
Error,
active with errors
Activate pulse, see page 163.
L6 in TIP
Pulses for recorder (t
p
=150 µs)
10 000 per buret cylinder
For all outputs:
V
CE0
= 40 V
I
C
= 20 mA
t
Pulse
> 100 ms
Functions see page 163.
Voltage
pin 15
pin 14
pin 25
I
≤ 75 mA
0 V: active
5 V: inactive
Ordering numbers for plug:
K.210.9004 (shell) and K.210.002
No liability whatsoever will be accepted for damage caused by im-
proper interconnection of instruments.
0 V
+5 V
