2 Overview of the instrument
892 Professional Rancimat
￭￭￭￭￭￭￭￭
7
2.2 Rear of the instrument

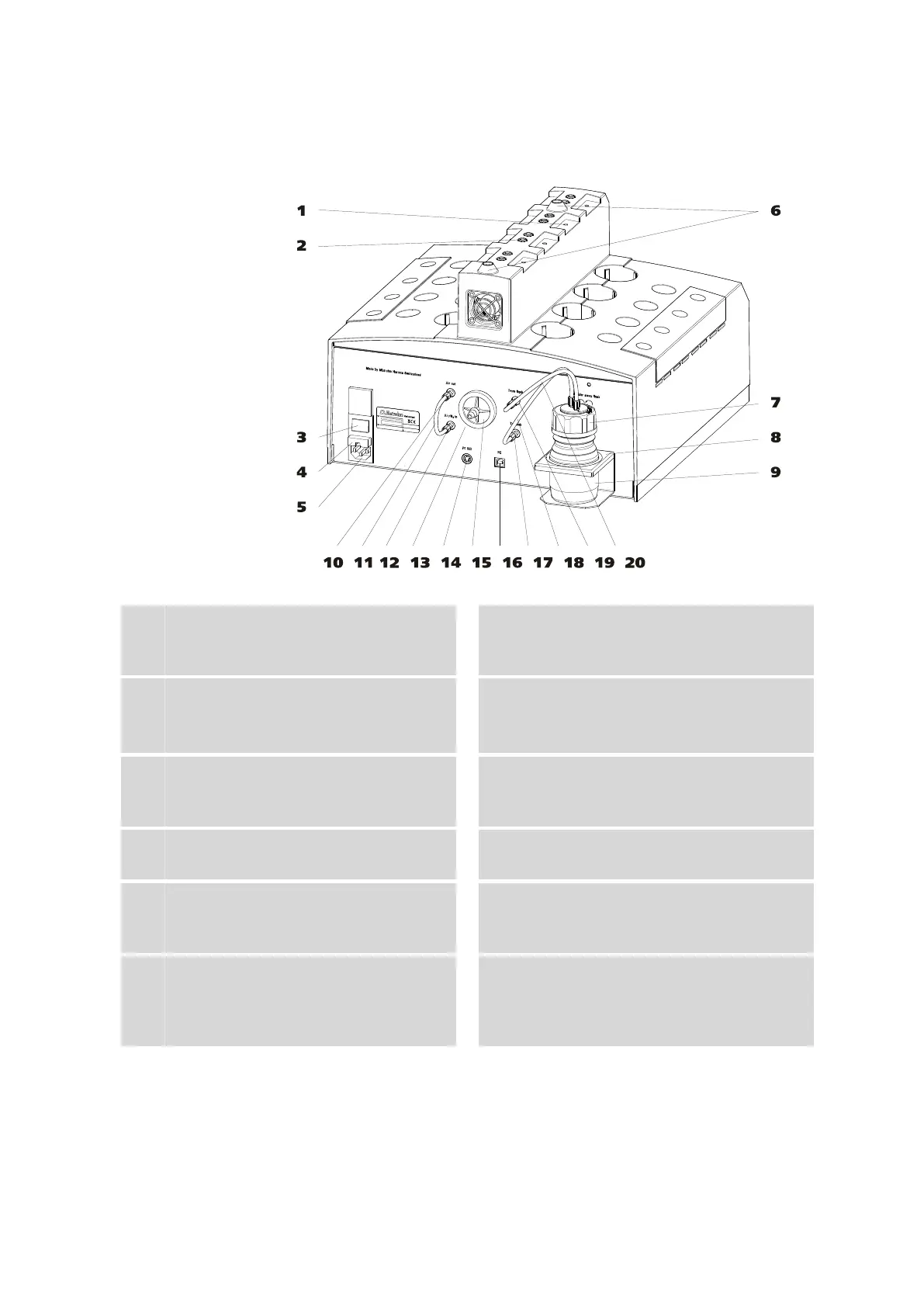

Figure 2 892 Professional Rancimat rear
1
Electrode connector
For connecting the conductivity measuring
cell integrated in the measuring vessel cover.
2
Air supply connector
For connecting the FEP tubing 250 mm.
3
Power switch
For switching the instrument on and off.
I = ON / 0 = OFF.
4
Fuse holder
For replacing fuses (see chapter 3.3.2, page
22).
5
Power socket
For important information on the power
connection, see Chapter 3.3.
6
Collection tube holder
For fastening the optional exhaust air collec-
tion tube (6.2757.000).
7
Drying flask cap (6.1602.145)
Cap for the drying flask.
8
Bottle holder
For fastening the drying flask.
9
Drying flask (6.1608.050)
Drying flask filled with molecular sieve
(6.2811.000).
10
"Air out" connector
11
FEP tubing 130 mm (6.1805.010)
For connecting the Air out connector to the
Air/N
2
in connector during normal opera-
tion with the internal air pump.
12
"Air/N
2
in" connector
