Metrohm 892 - Figure 16 Assembling the Reaction Vessel for Determining the Temperature Correc- Tion

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4 Operation
892 Professional Rancimat
￭￭￭￭￭￭￭￭
29

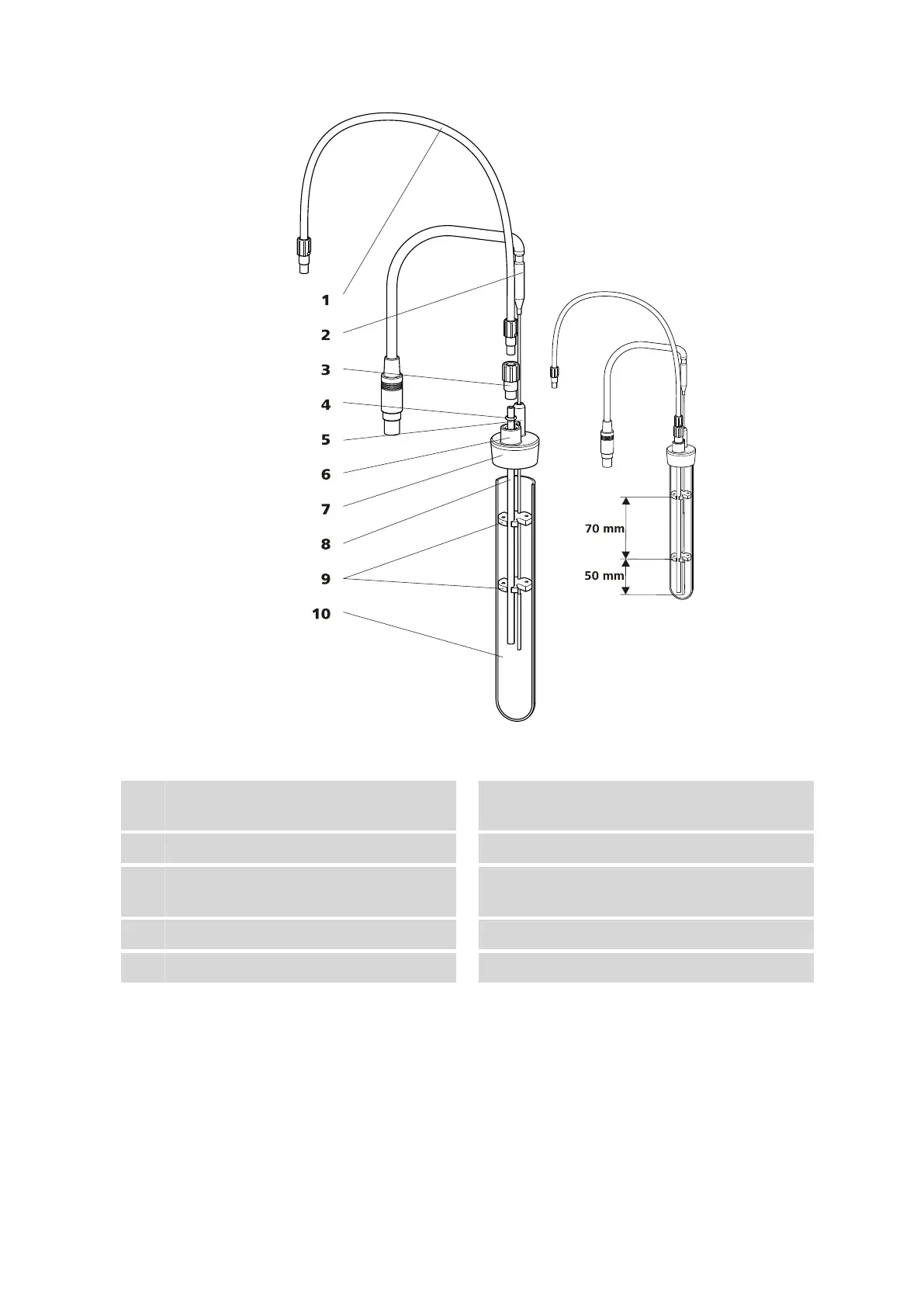

Figure 16 Assembling the reaction vessel for determining the tempera-
ture correction
1
FEP tubing 250 mm (6.1805.080)
For supplying air into the reaction vessel.
2
Pt100 temperature sensor (6.1111.010)
3
Thread adapter M8/M6 (6.1808.090)
4
O-ring (6.1454.040)
5
Temperature sensor opening
For inserting the temperature sensor.
6
Connector
For connecting the thread adapter M8/M6.
7
Reaction vessel cover (6.2753.107)
8
Air tube (6.2418.100)
9
Spacer (6.2042.040)
10
Reaction vessel (6.1429.040)
