3.2 Mounting accessories
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12
￭￭￭￭￭￭￭￭
892 Professional Rancimat
NOTICE
The dust filter serves for filtering the air aspirated through the air
pump and must be replaced at periodic intervals (see chapter 5.2,
page 43).
2
Mounting the drying flask
I II III
1
2
3

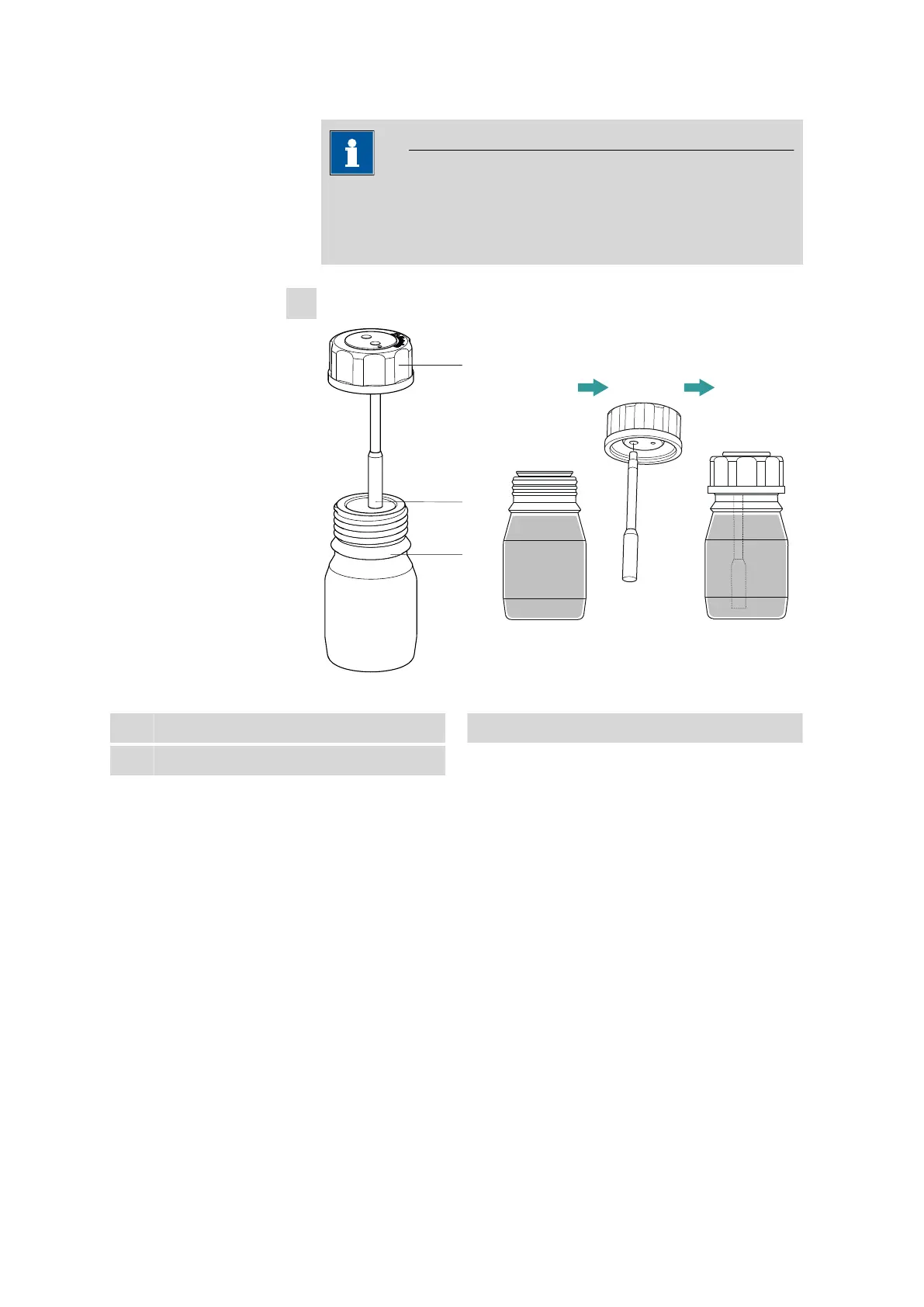

Figure 5 Drying flask - Individual parts
1
Drying flask cap (6.1602.145)
2
Filter tube (6.1821.040)
3
Bottle (6.1608.050)
￭ [I] – Fill the molecular sieve (6.2811.000) into the drying flask.
￭ [II] – Screw the filter tube on the bottom side of the drying flask
cap into the opening marked with a dot (on the upper side).
￭ [III] – Screw the drying flask cap with mounted filter tube onto
the drying flask and insert it in the flask holder on the rear of the
892 Professional Rancimat.
￭ Screw one end of the FEP tubing 250 mm to the opening on the
drying flask cap marked with a dot.
￭ Screw the other end of the FEP tubing to the From flask connec-
tor on the rear of the 892 Professional Rancimat.
￭ Screw one end of the second FEP tubing 250 mm to the second
opening on the drying flask cap.
￭ Screw the other end of the second FEP tubing to the To flask
connector.
