Metrohm 892 - Figure 10 Mounting the Oil Separator

3.2 Mounting accessories
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
20
￭￭￭￭￭￭￭￭
892 Professional Rancimat
1
2
3
4 5

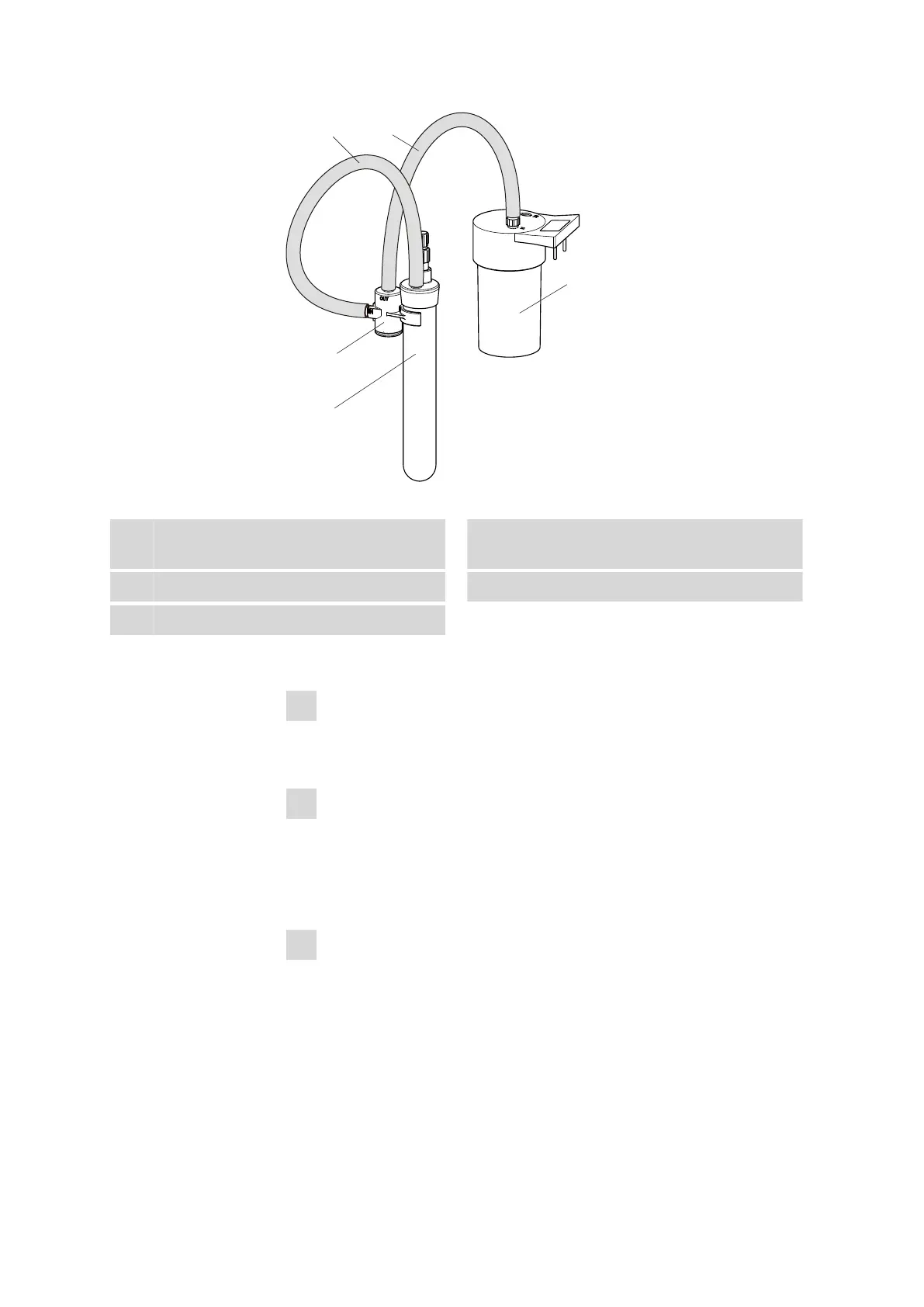

Figure 10 Mounting the oil separator
1
Oil separator (6.2753.200)
Oil separator with sealing cover (bottom).
2
Reaction vessel
3
Measuring vessel
4
Silicone tubing to the oil separator
5
Silicone tubing to the measuring vessel
Proceed as follows to mount the oil separator:
1
Clamping the oil separator in place
￭ Clamp an oil separator in place on the side of each reaction vessel
(sealing cover on the bottom).
2
Attaching the silicone tubing to the oil separator
￭ Attach one end of the silicone tubing to the tubing connector of
the reaction vessel.
￭ Attach the other end of the silicone tubing to the inlet opening IN
of the oil separator.
3
Attaching the silicone tubing to the measuring vessel
￭ Attach one end of the silicone tubing to the outlet opening OUT
of the oil separator.
￭ Attach the other end of the silicone tubing to the tubing connec-
tor of the measuring vessel.
