Metrohm 892 - Figure 7 Equipping the Reaction and Measuring Vessels

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
892 Professional Rancimat
￭￭￭￭￭￭￭￭
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

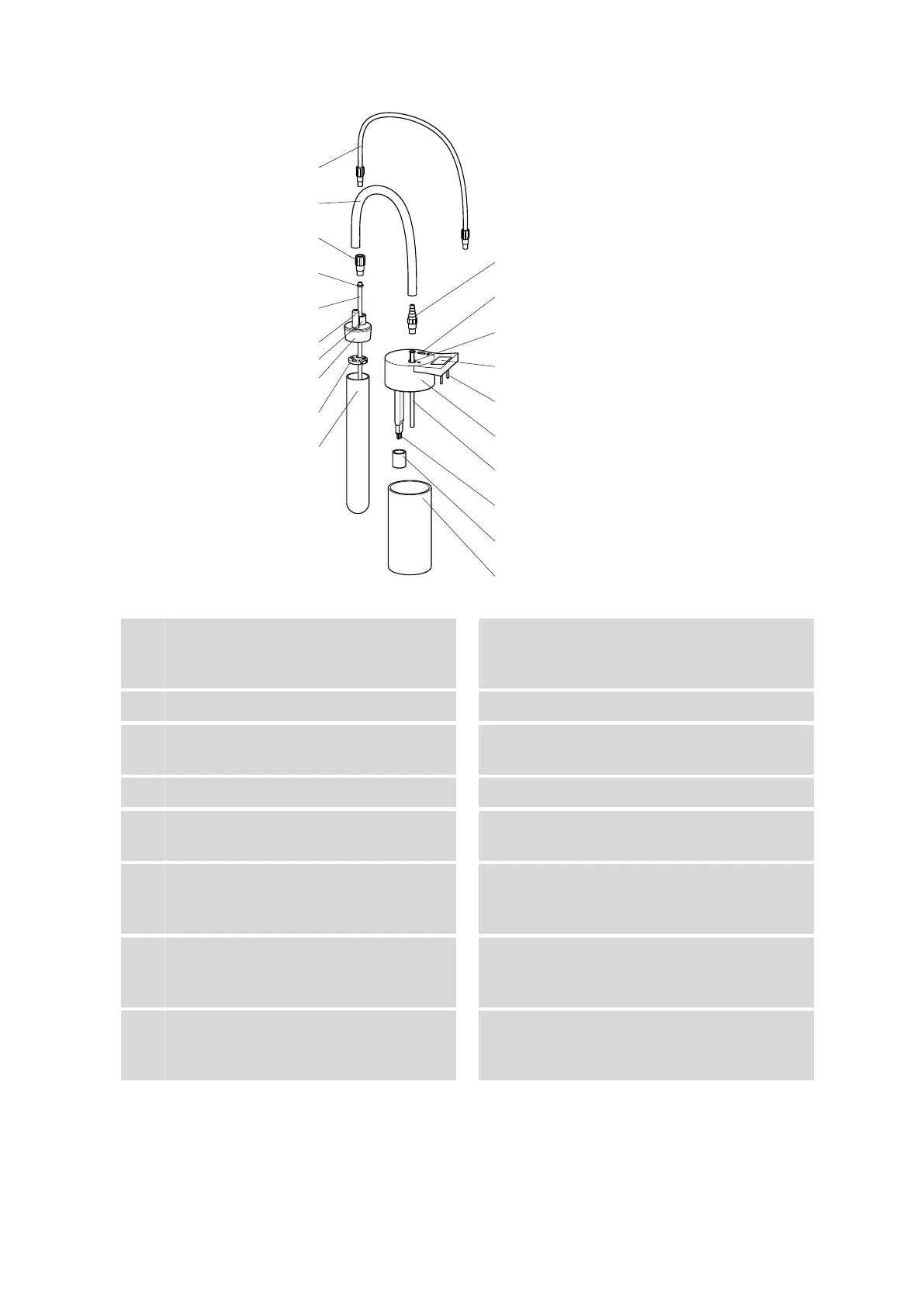

Figure 7 Equipping the reaction and measuring vessels
1
FEP tubing 250 mm (6.1805.080)
For supplying air into the reaction vessel.
2
Silicone tubing (6.1816.010)
For connecting the reaction vessel to the
measuring vessel.
3
Thread adapter M8/M6 (6.1808.090)
4
O-ring (6.1454.040)
5
Air tube (6.2418.100)
6
Tubing connector
For connecting the silicone tubing.
7
Thread adapter M8/M6 connector
8
Reaction vessel cover (6.2753.107)
9
Foam barrier (6.1451.010)
Optional foam barrier.
10
Reaction vessel (6.1429.040)
11
Tubing adapter M8/olive (6.1808.050)
For connecting the silicone tubing to the In
opening.
12
Opening "Out"
For removing the air from the measuring
vessel.
13
Opening "In"
For supplying the air to the measuring ves-
sel.
14
Label field
For attaching labels (e.g. 6.2250.000 lami-
nated labels).
15
Connector plug
16
Measuring vessel cover (6.0913.130)
Contains an integrated conductivity measur-
ing cell.
