5.2 Connecting the power supply unit
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12
￭￭￭￭￭￭￭￭
915 KF Ti-Touch

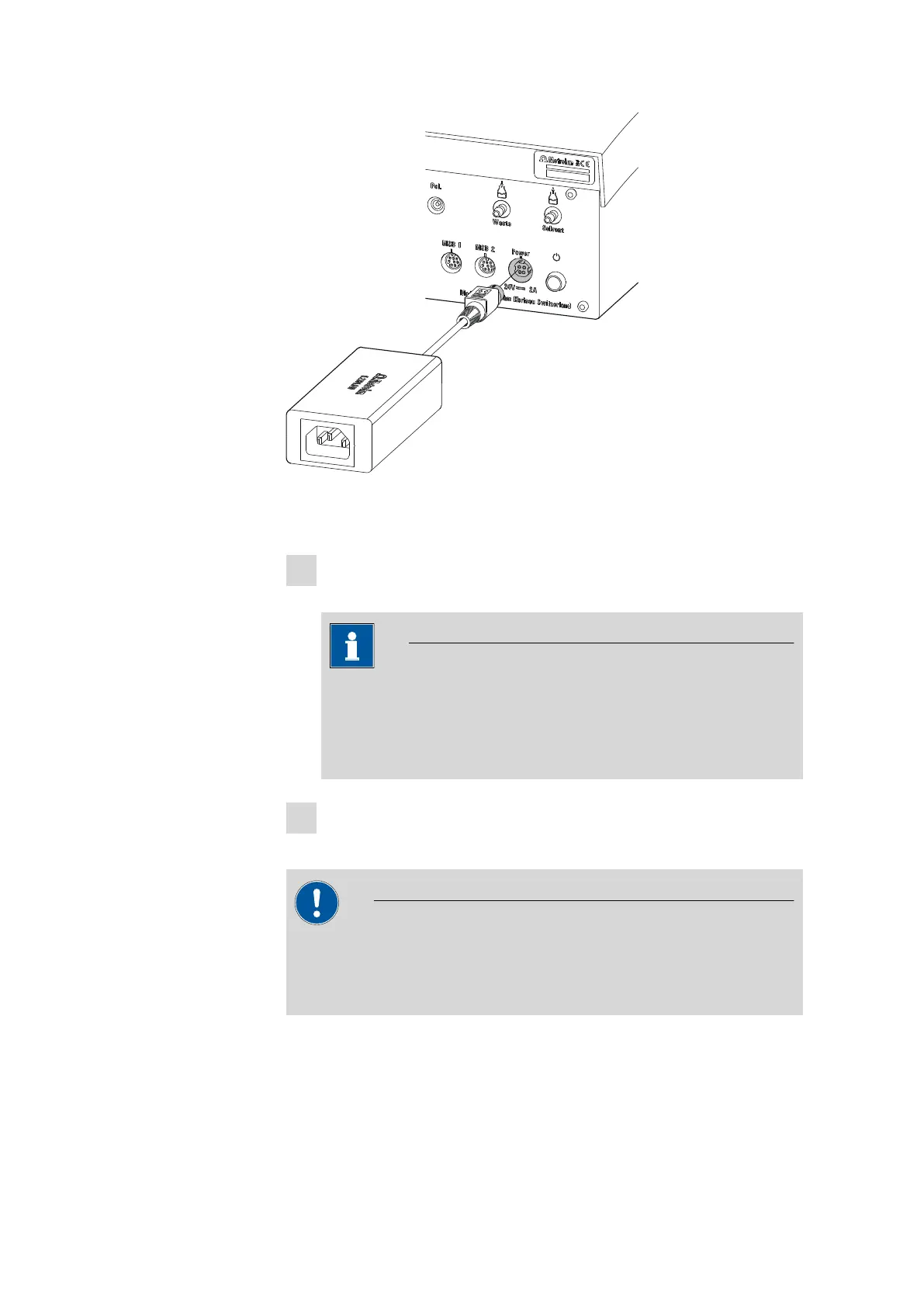

Figure 3 Connecting the power supply unit
Proceed as follows:
1
Connect the plug of the external power supply unit with the mains
connection of the Ti-Touch (see Figure 3, page 12).
NOTE
The plug of the power supply unit is protected against accidental
disconnection of the cable by means of a pull-out protection fea-
ture. If you wish to pull out the plug, you will first need to pull
back the outer plug sleeve marked with arrows.
2
Connect the mains cable with the external power supply unit of the
Ti-Touch and with the mains supply.
CAUTION
Switch off the Ti-Touch correctly by pressing the mains switch before
you disconnect the electricity supply. If this is not done, then there is a
danger of data loss.
