Metronix ARS 2102 SE - Figure 9: Servo Drive ARS 2102 SE: Top View; Figure 10: Servo Drive ARS 2102 SE: Bottom View

Page 70
[X1] I/O[X10] IN[X11] OUT
[X9]
[X9]: Power Supply L: mains phase 230VAC N: mains neutral conductor ZK+: pos. DC bus voltage ZK-: neg. DC bus voltage BR-INT: intern brake chopper BR-CH: brake chopper PE: ground conductor from
mains
+24V: 24VDC GND24V: GND 24VDC [X11]: Incremental encoder output [X10]: Incremental encoder input [X1]: I/O interface

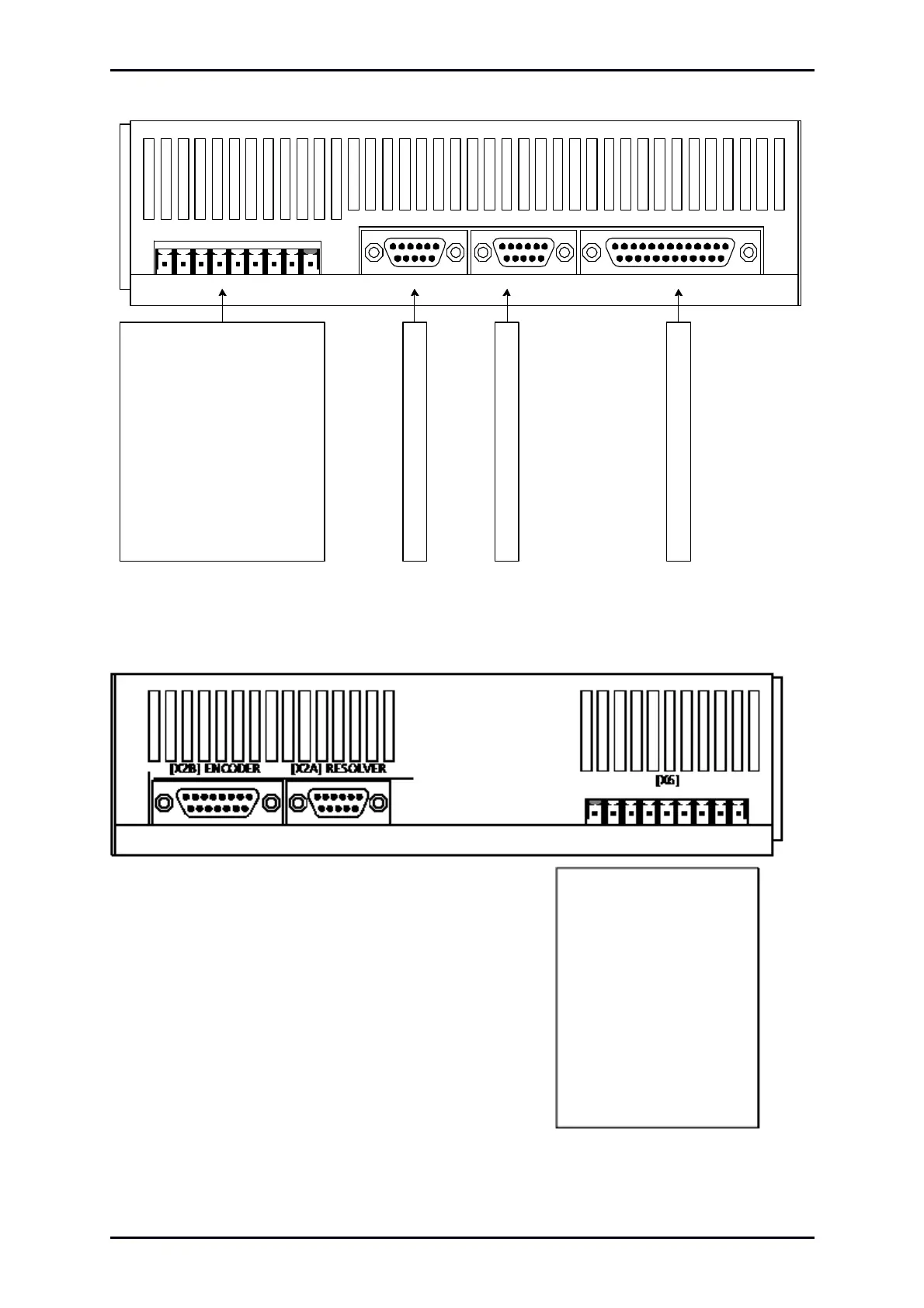

Figure 9: Servo drive ARS 2102 SE: Top view
Figure 10: Servo drive ARS 2102 SE: Bottom view
Product Manual „Servo drives ARS 2100 SE“ Version 5.0
