1 X 78 en 11
K seats:
Place the back seal (63) into the body counterbore.
Then place the seat (7) into the body counterbore,
see Fig. 26.
Lock the seat into the body using a special tool. See
Section 4.9.3 for instructions.
Place the back seal (63) in the ball seat (7); see Fig. 26.
Place the seat in the body cap (2). Lock the seat with
a special tool. See Section 4.9.3 for instructions.
H seats:
Place the back seal (63) into the body counterbore.
Then place the seat (7) into the body counterbore,
see Fig. 27.
Lock the seat into the body using a special tool. See
Section 4.9.3 for instructions.
Place the back seal (75), back-up ring (76), spring (62)
and the seat (25) into body cap, Fig. 27.
G seats:
Place the back seal (63) into the body counterbore.
Then place the seat (7) into the body counterbore,
see Fig. 28.
Lock the seat into the body using a special tool. See
Section 4.9.3 for instructions.
Place the back seal (75), back-up ring (76), spring (62)
and the seat (25) with back seal (64) into body cap,
see Fig. 28.
J seats:
Install back seals (63) as per Table 2 to both body
halves. The seal on top of stack shall always be 1 mm
thick and the others are either 1 mm or 0.4 mm.
Set back seal pressing tool on top of seal stack as
seen in Fig. 30.
Compress back seal stack with pressing tool using
forces found on the Table 3. Avoid damaging sealing
faces of the flange during compression. Let the com-
pression of the back seal stack effect about 5 min-
utes. Repeat same procedure to the other body half.
Set body seat to its cavity.
Add bearings, spline driver, locking pin, shaft and
key.
Install the ball.
Install the gland packing. Use V-ring set (if available)
or graphite packing without any tightening of pack-
ing rings.
Set the other seat on top of the ball.
Add body gasket.

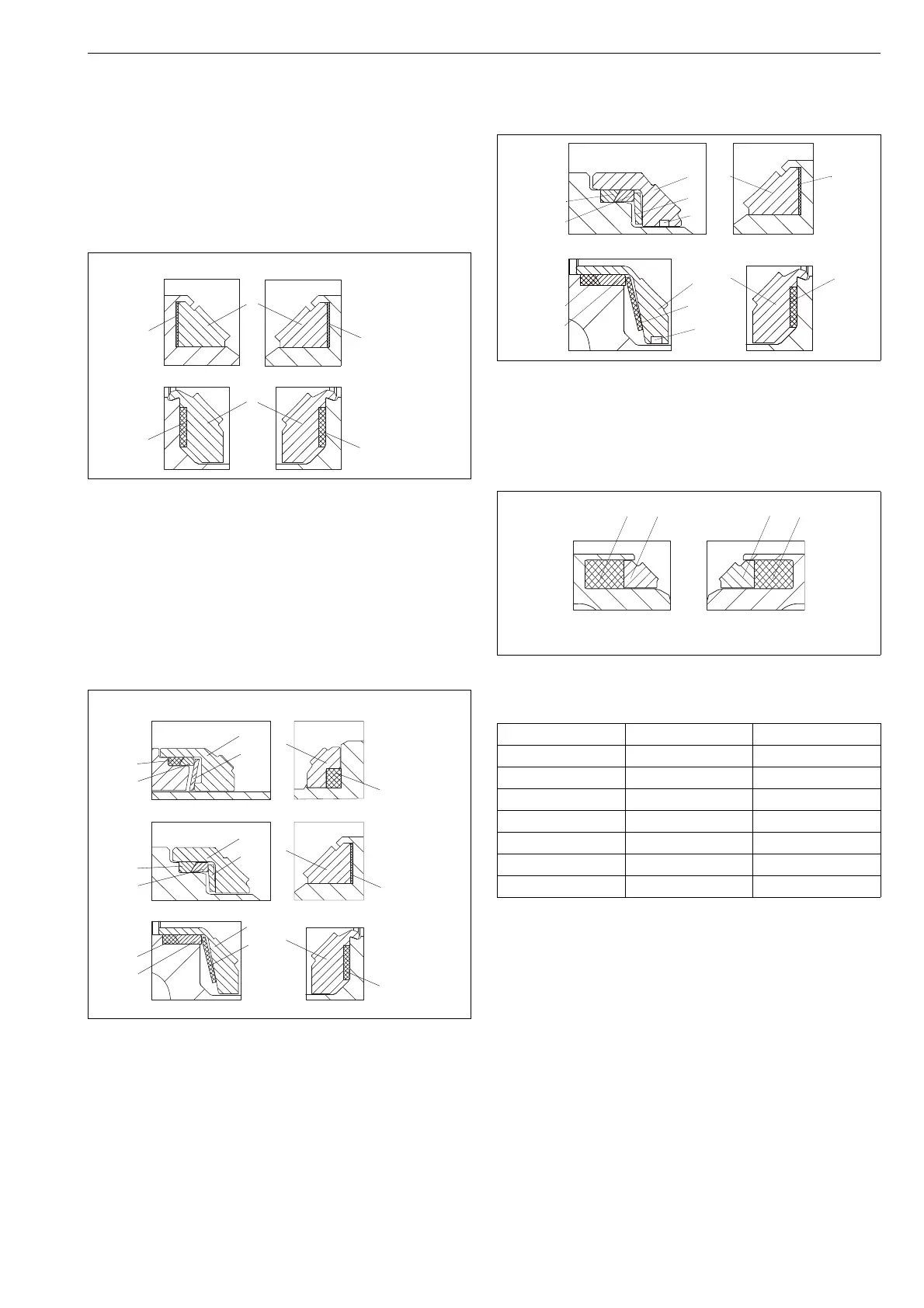

Fig. 26 K seats
Fig. 27 H seats
TA
2” - 8”
GA
1” - 8”
63
63
7
7
63
63
BodyInsert / Body cap
TA
1” - 1 1/2”
2” - 8”
GA
1” - 8”
63
63
63
7
7
7
25
62
25
62
25
62
75
76
75
76
75
76
BodyInsert / Body cap
Fig. 28 G seats
Fig. 29 J seat
Table 2 Seal thicknesses
Size 1 mm 0.4 mm
1" 2 pcs. 3 pcs.
1H" 5 pcs. 3 pcs.
2" 7 pcs. 5 pcs.
3" 12 pcs. 5 pcs.
4" 16 pcs. 1 pc.
6" 23 pcs. 4 pcs.
8" 28 pcs. 2 pcs.
BodyInsert / body cap
64
637
76
75
62
25
63725
62
76
75
64
TA
GA
7
63763
Body cap Body
