1 X 78 en 17

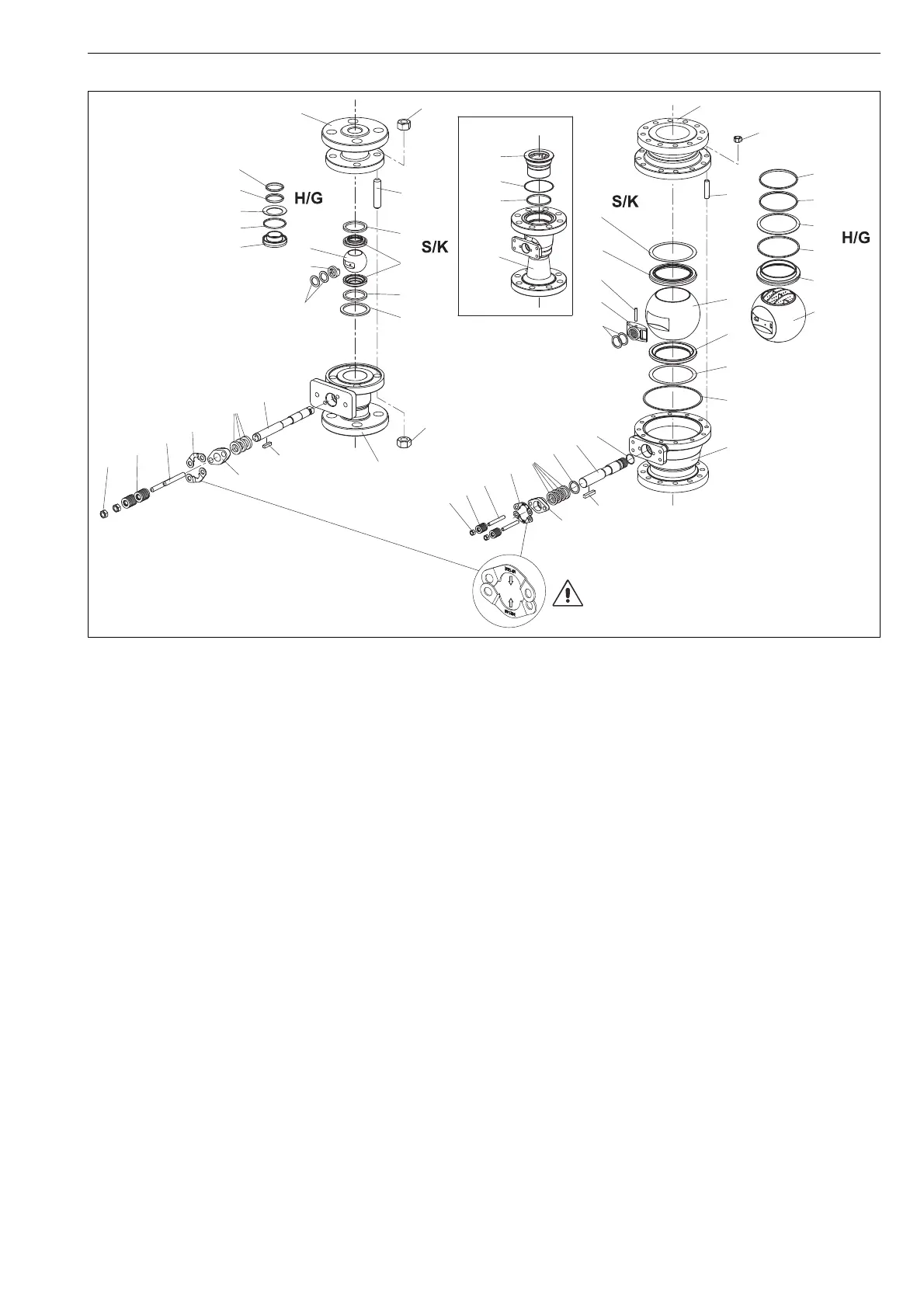

10 EXPLODED VIEW AND PARTS LIST
Spare part (Spare Part Set) 1: Recommended soft parts, always needed for the repair. Delivered as a set.
Spare part category 2: Parts for replacing of the seat. Available also as a set.
Spare part category 3: Parts for replacing of the closing element.
Spares for the full overhaul: All parts from the categories 1, 2 and 3.
4
3
2
16
12
63
7
63
65
18
150
14
42
69
5
9
10
1
16
70
2
16
12
63
7
50
4
70
3
3
7
63
65
1
18
150
14
42
69
67
5
51
10
9
2
135
65
1
75
76
62
25
75
76
62
25
64
64
1”–1 1/2” / DN 25–DN 40 full bore 2”–8” / DN 50–DN 200 full bore
8” / DN 200 reduced bore
3”–6” / DN 80–DN 150
reduced bore
No parts 12 and 16
Item Qty Description Spare part category
1 1 Body
2 1 Body cap
Insert (3"–6" / DN 80–150 reduced bore)
3 1 Ball/Q-TRIM ball 3
4 1 Spline driver (2"–8" / DN 50–200)
Thrust ring (1", 1 1/2" / DN 25, DN 40)
3
51Shaft 3
72
1
Ball seat (S/K seat)
Ball seat (H/G seat)
2
91Gland
10 1 Key 3
12 4-12 Stud (quantity depends on valve size, not in reduced bore 3"–6" / DN 80–150)
14 2 Stud
16 6-12 Hexagon nut (quantity depends on valve size, not in reduced bore 3"–6" / DN 80–150)
18 2 Hexagon nut
19 1 ID plate
25 1 Ball seat (H/G seat) 2
42 2 Retaining plate
50 1 Locking pin
51 1 Retaining ring
62 1 Seat spring 2
63 2
1
Back seal (S/K seat)
Back seal (H/G seat)
1
64 1 Back seal (G seat)
65 1 Body gasket 1
67 1 Support ring
69 1 Packing ring (set) 1
70 2/4 Thrust bearing (2 pcs. in sizes 1" and 1 1/2", 4 pcs. in sizes 2"–8") 3
75 1 Seat seal (H/G seat) 1
76 1 Back-up ring (H/G seat) 2
135 1 Gasket (only in reduced bore 3"–6" / DN 80–150)
150 2 Disc ring set
