Metso XT/XA Series User Manual

20 1 X 78 en

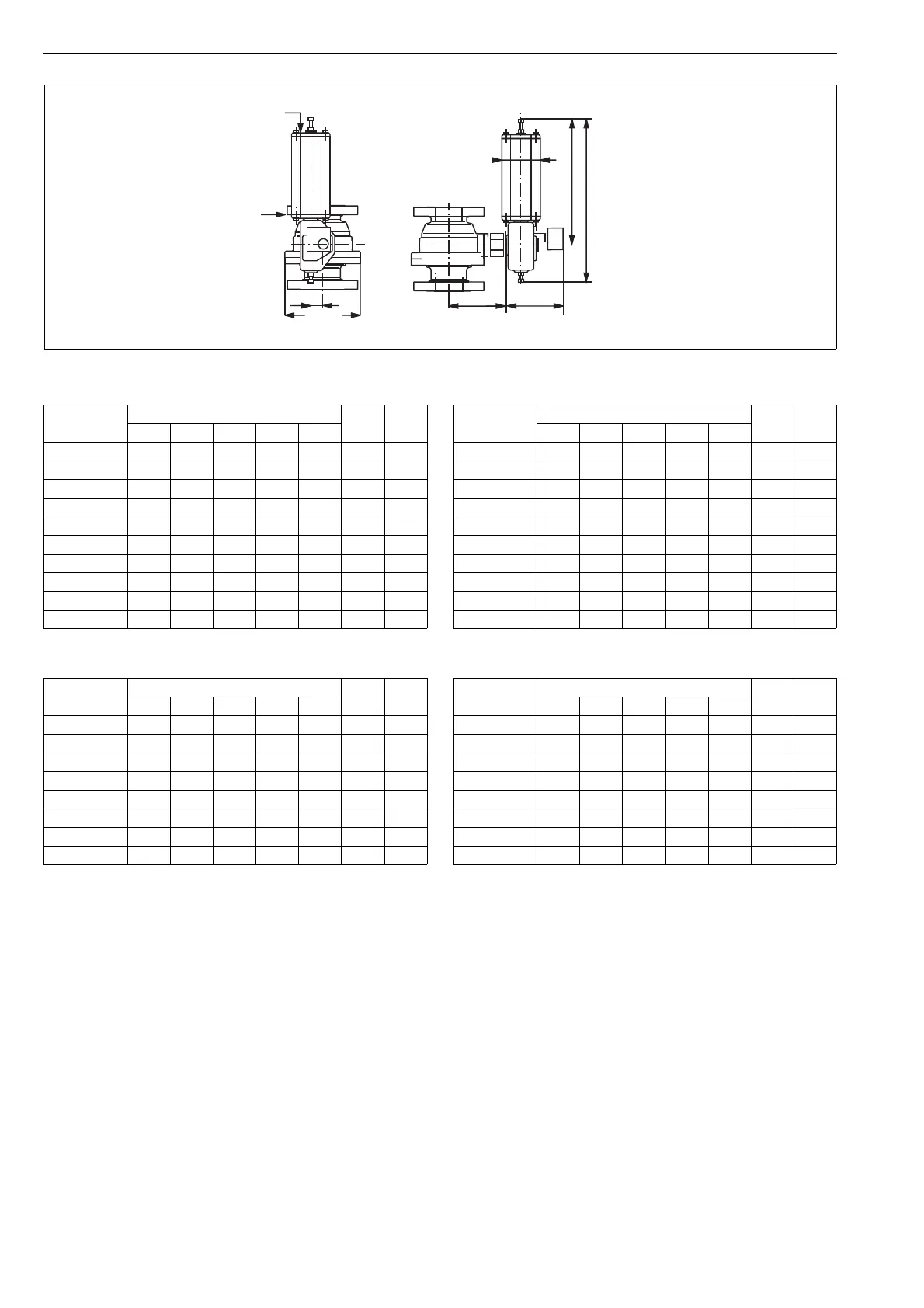

11.3 Valve and B1C/B1J/B1JA actuator
B1C ACTUATOR
B1J/B1JA ACTUATOR
K *
J
X
G
F
NPT
V
ø B1 *
NPT
*) See ØB1 and K dimensions from
tables in 11.1 and 11.2
Type
Dimensions, mm
NPT kg
FGJVX
B1C6 395 270 283 36 90 1/4 4.2
B1C9 450 315 279 43 110 1/4 9.6
B1C11 535 375 290 51 135 3/8 16
B1C13 640 445 316 65 175 3/8 31
B1C17 785 555 351 78 215 1/2 54
B1C20 880 590 385 97 215 1/2 73
B1C25 1075 725 448 121 265 1/2 131
B1C32 1370 920 525 153 395 3/4 256
B1C40 1670 1150 595 194 505 3/4 446
B1C50 2060 1390 690 242 610 1 830
Type
Dimensions, in
NPT lb
FGJVX
B1C6 15.55 10.63 11.14 1.42 3.54 1/4 9
B1C9 17.71 12.40 10.98 1.69 4.33 1/4 21
B1C11 21.06 14.76 11.42 2.01 5.31 3/8 35
B1C13 25.20 17.52 12.44 2.56 6.89 3/8 68
B1C17 30.91 21.85 13.82 3.07 8.46 1/2 119
B1C20 34.65 23.23 15.16 3.82 8.46 1/2 161
B1C25 42.32 28.54 17.64 4.76 10.43 1/2 289
B1C32 53.94 36.22 20.67 6.02 15.55 3/4 564
B1C40 65.75 45.28 23.43 7.64 19.88 3/4 983
B1C50 81.10 54.72 27.17 9.53 24.02 1 1829
Type
Dimensions, mm
NPT kg
FGJVX
B1J/B1JA6 485 368 283 36 110 3/8 13
B1J/B1JA8 560 420 279 43 135 3/8 17
B1J/B1JA10 650 490 290 51 175 3/8 30
B1J/B1JA12 800 620 316 65 215 1/2 57
B1J/B1JA16 990 760 351 78 265 1/2 100
B1J/B1JA20 1200 935 358 97 395 3/4 175
B1J/B1JA25 1530 1200 448 121 505 3/4 350
B1J/B1JA32 1830 1410 525 153 540 1 671
Type
Dimensions, in
NPT lb
FGJVX
B1J/B1JA6 19.09 14.49 11.14 1.42 4.33 3/8 28.5
B1J/B1JA8 22.05 16.54 10.98 1.69 5.31 3/8 37
B1J/B1JA10 25.59 19.29 11.42 2.01 6.89 3/8 66
B1J/B1JA12 31.50 24.41 12.44 2.56 8.46 1/2 126
B1J/B1JA16 38.98 29.92 13.82 3.07 10.43 1/2 220
B1J/B1JA20 47.24 36.81 14.09 3.82 15.55 3/4 386
B1J/B1JA25 60.24 47.24 17.64 4.76 19.88 3/4 771
B1J/B1JA32 72.05 55.51 20.67 6.02 21.26 1 1479
