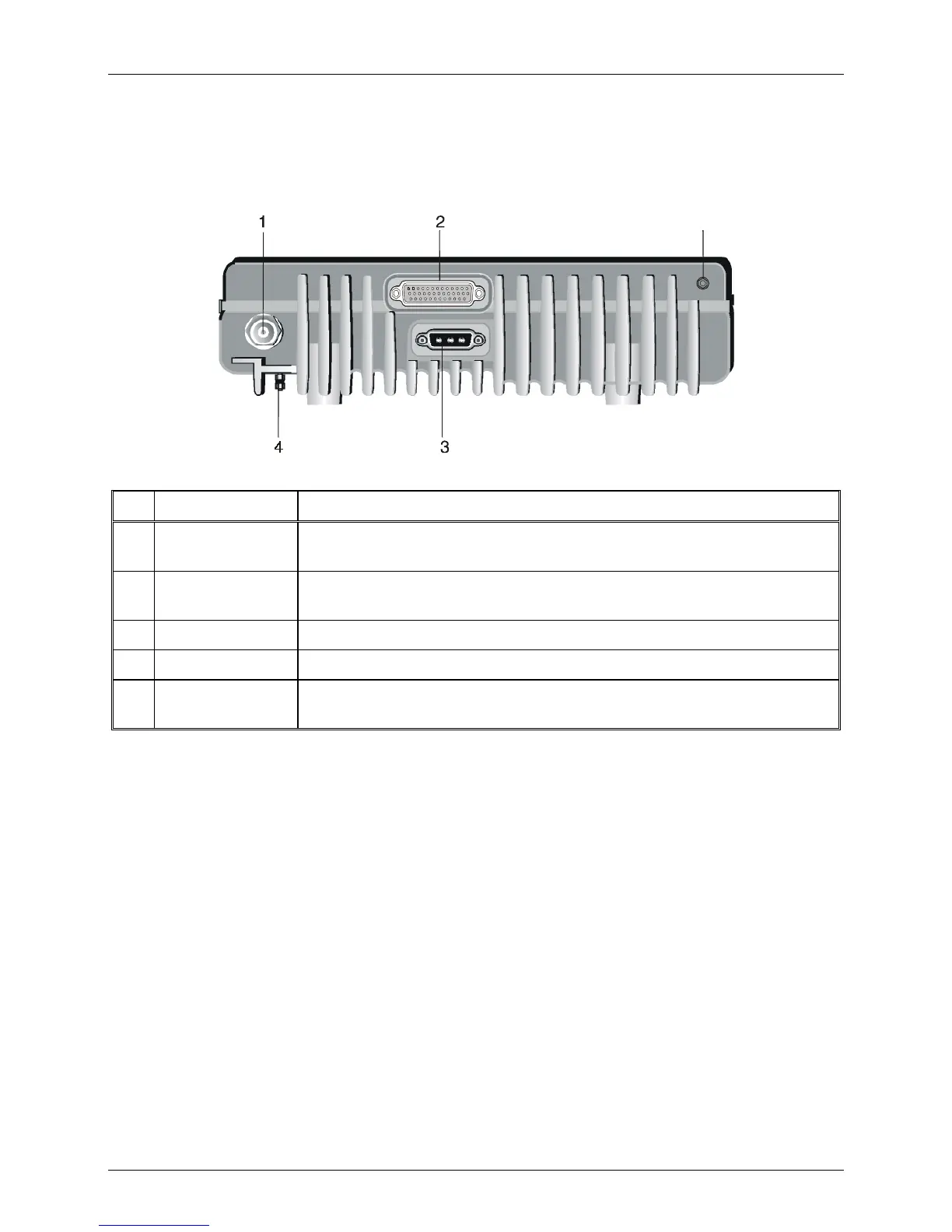

Rear Panel (All Models)
5
No. Item Function
1 Antenna connector N-type female connector for connection to antenna or optional linear power
amplifier
2 Accessories
connector
44-pin male D-type connector, used to connect the radio to external accessories
such as: personal computers, MRC, external modems, Morse key, etc.
3 DC connector 3-pin D-type male connector for connection of DC power source
4 Grounding screw Connection of ground to the radio case
5 GPS antenna
connector
Connection to the GPS antenna (for MICOM-3 with the optional GPS receiver)
