M550 Specications and Sales Information
FULLY PROGRAMMABLE WITH PLUG-IN
MEMORY MODULE
MICRO-COMM, MODBUS RTU AND
ALLEN-BRADLEY DF1 PROTOCOLS
OPTIONAL FRONT PANEL DISPLAY &
EXPANDABLE I/O
RADIO, PHONE LINE, & FIBER OPTIC
COMMUNICATIONS
SIMULTANEOUS RTU-RTU & CTU-RTU
COMMUNICATIONS

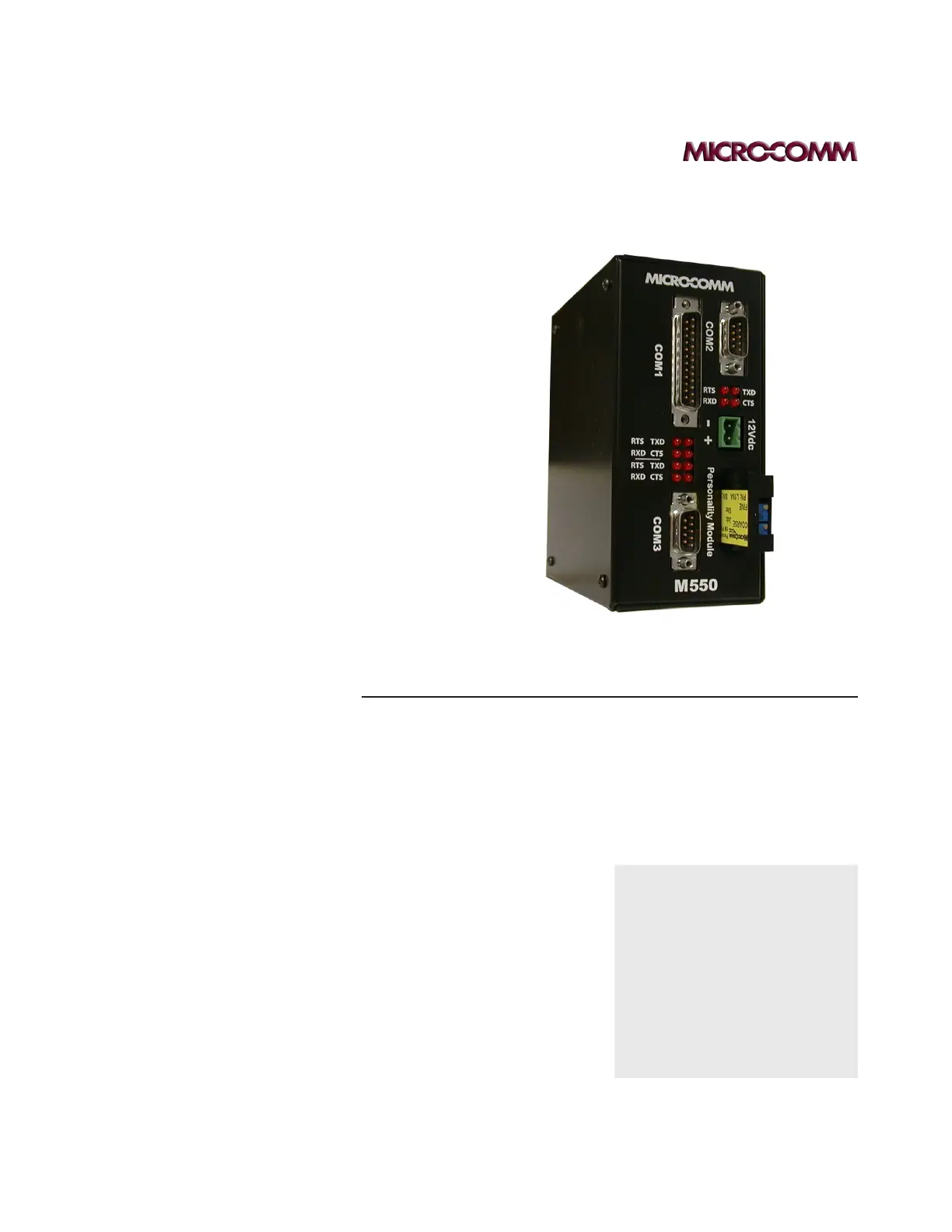

MODEL M550
T
he M550 PLC is a reliable, full-
featured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M550 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, dedicated
line, phone line, and fiber optic communication
media. The M550 can also be ordered with an
Ethernet controller in place of the RS-232 on
COM2 (Model M550E).
APPLICATIONS
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
FEATURES
I/O
• 4 Open Collector Outputs (COM1 radio
switching)
Communications
• COM1, Radio Port
25pin Sub-D Male, RS-232 and RF signals
• COM2, Front Panel Display, Programming
9pin Sub-D Male RS-232 w/flow control
lines for data radio or Ethernet (10baseT)
• COM3, RS-485 Expansion I/O or RS-232
w/flow control lines for data radio
• Internal RF MODEM, 0-600 BAUD
CPU and Memory
• 32-bit MCU running 16MHz
• 1MB FLASH, Application Program
• 512K RAM, Data
• 1MB Serial FLASH, Configuration
Power Source
• 12 VDC Power Input
ORDER INFORMATION
Part #
L52 0-300 baud FSK modem, COM2 RS-232
L52A 600 baud FSK modem, COM2 RS-232
L52E 0-300 baud FSK modem, COM2 Ethernet
L52AE 600 baud FSK Modem, COM2 Ethernet
Micro-Comm Automation has
been providing process control solutions
for more than 30 years.
Call us at (913) 390-4500 to place
your order or to speak to a sales and ser-
vice representative. Or, visit us online at
www.micro-comm-inc.com
