Display Module Emulator

The display module is an optional hardware component to a Micro-Comm RTU which allows an operator to see

levels and change setpoints. While programming with RTU Conguration 32 software, the operator can use the

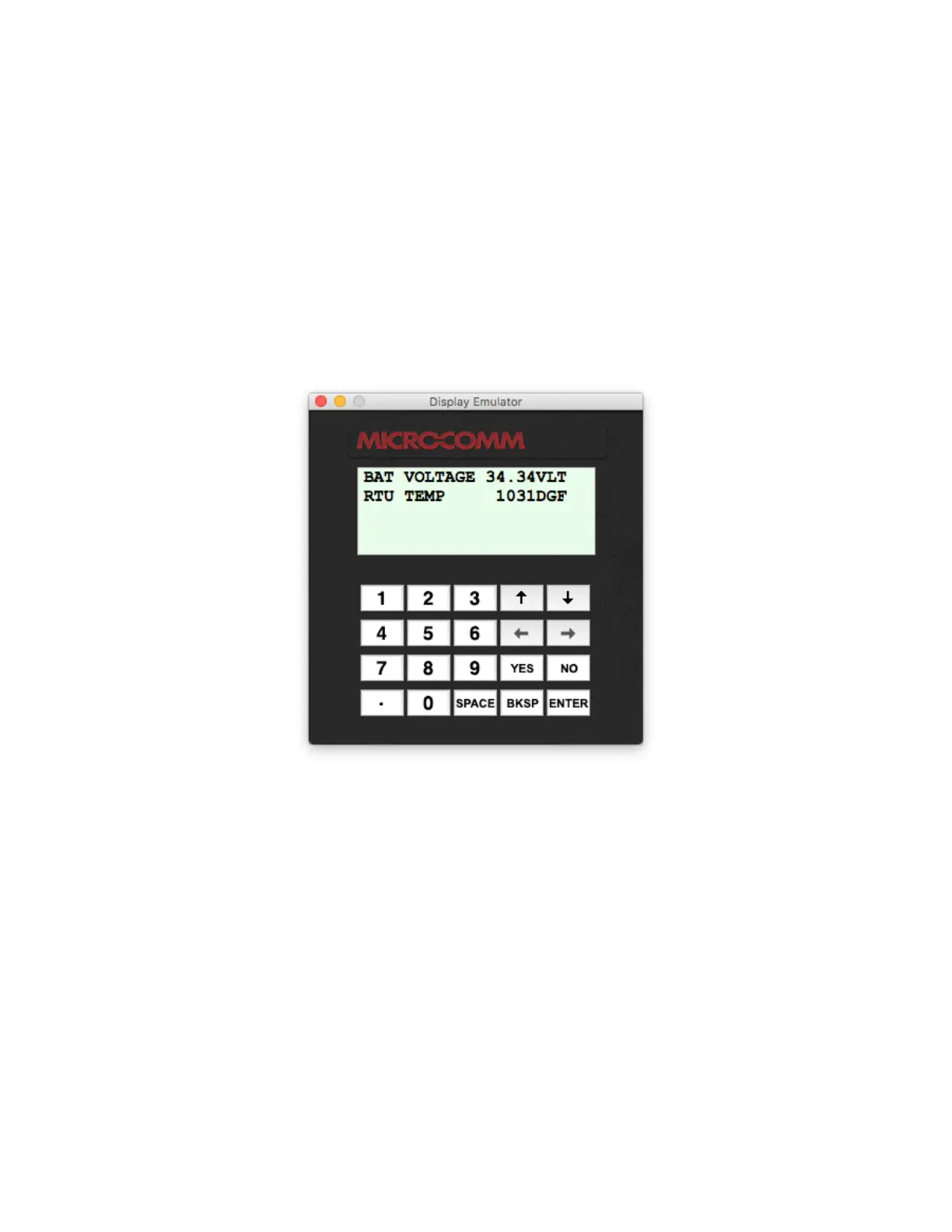

Display Module Emulator screen to see what the display module would show. This can be very useful since both

the display module and the programming software may be using the same com port on the RTU.

Note: Typing .741 will temporarily go into display mode when connected to an RTU.
