FULLY PROGRAMMABLE WITH
PLUG-IN MEMORY MODULE
MICRO-COMM, MODBUS RTU
AND ALLEN-BRADLEY DF1
PROTOCOLS
OPTIONAL FRONT PANEL
DISPLAY & EXPANDABLE I/O
SIMULTANEOUS RTU-RTU &
CTU-RTU COMMUNICATIONS
PLUG-IN TERMINAL BLOCKS

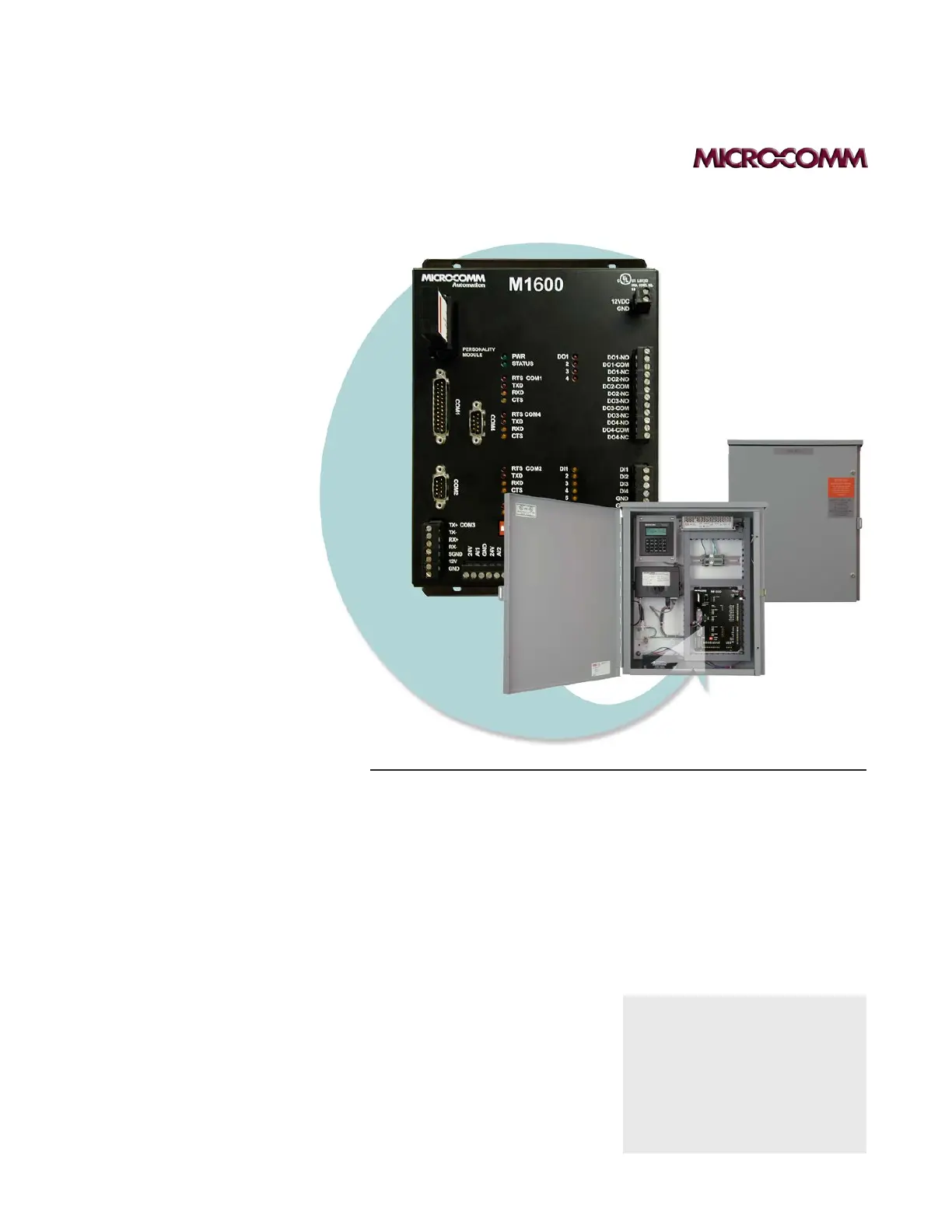

MODEL M1600
T
he M1600 PLC is a reliable, full-
featured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M1600 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio and serial
communication media.
APPLICATIONS
SCADA Systems:
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
Local Control:
Water Booster Pump Stations
Sewage Lift Stations
Constant and Variable Speed Pump Stations
Metering Stations
Water and Waste Water Treatment Plants
FEATURES
I/O
• 4 Form C Relay Outputs
• 4 Open Collector Outputs
• 8 Optically Isolated Discrete Inputs
(2 are also High Speed Pulse Inputs)
• 4 Analog Inputs, 0-5V or 0-20mA
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, System Voltage
• 2 Analog Outputs, 0-20mA
• 2 High-Speed pulse inputs
Communications
• COM1, Radio Port, RS-232
Optional RF MODEM, 0-600 or 1200 baud
• COM2, Display,/Programming, RS-232
• COM3, RS-485, Expansion I/O
• COM4, RS-232/RS-485
Power Source
• 12 VDC Power Input
ORDER INFORMATION
Part#
M1600-L17 0-300 baud FSK modem
M1600-L17A 600 baud FSK modem
M1600-L17B 1200 baud FSK modem
Micro-Comm has been providing
process control solutions for more than
30 years.
Call us at (913) 390-4500 or visit us
online at www.micro-comm-inc.com
PROGRAMMABLE LOGIC CONTROLLER
(PLC)
M1600 Specications and Sales Information
