- 27 -
ORDER INFORMATION
M1600 - XXXX
Modem:
L17 - 0-300 baud FSK modem
L17A - 0-600 baud FSK modem
L17B - 1200 baud FSK modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com

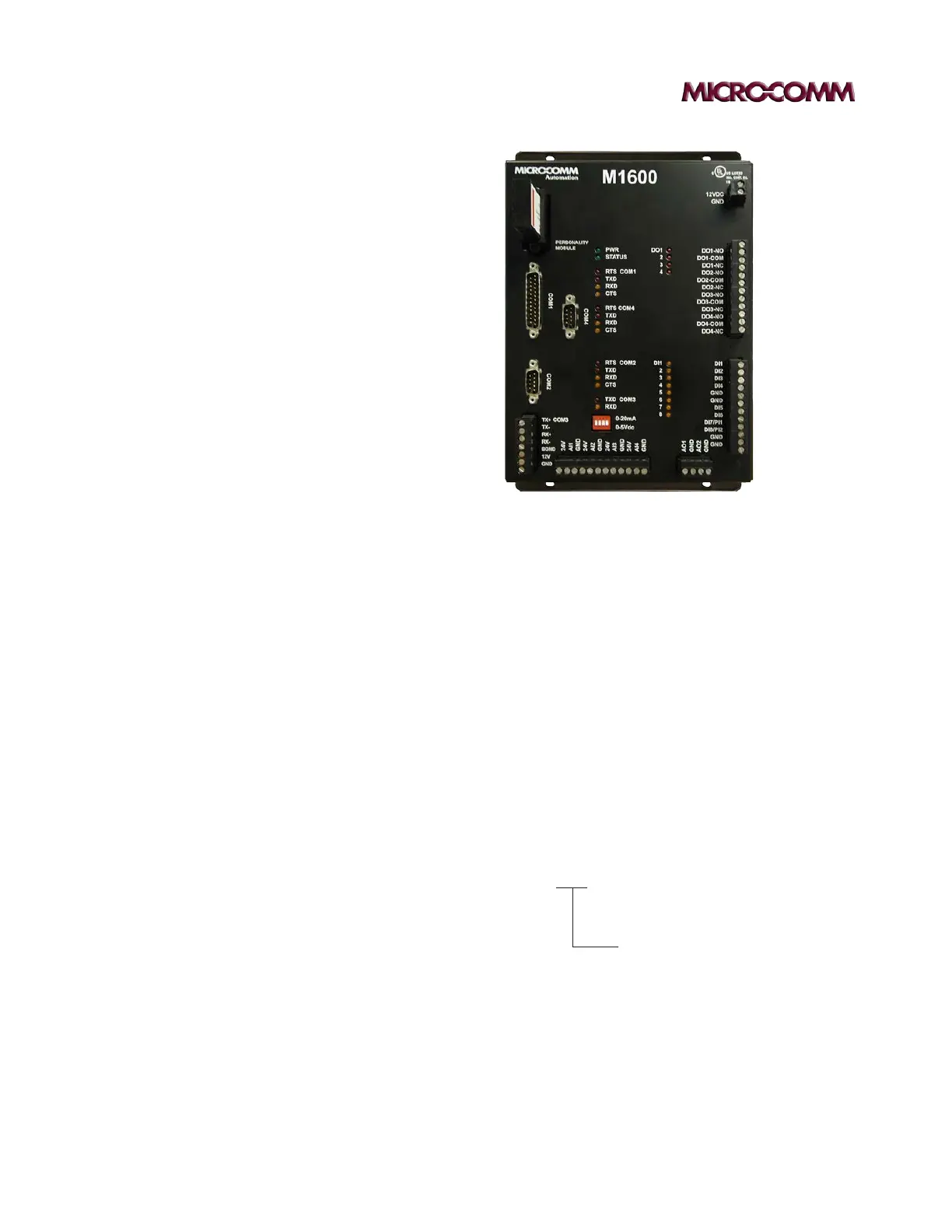

M1600 PLC
I/O
• 4 Form C Relay Outputs, 4A @ 250VAC General Use (4A @ 30VDC Resistive)
B300 Pilot Duty, Relay contact to coil isolation 4000Vrms
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
Internal clamping diode to 12V
• 8 Optically Isolated Discrete Inputs, Dry Contact or Open Collector to GND,
Optically Isolated, 4mA Wetting Current, 12VDC Wetting Voltage
2 High Speed Pulse Inputs (inputs DI7 / DI8)
0-1000Hz, 50% duty cycle, contact closure or open collector to GND
6 Low Speed pulse inputs (inputs DI1-DI6)
0-50Hz, 50% duty cycle, contact closure or open collector to GND
• 4 Analog Inputs, 12bit, 0-5V or 0-20mA, 0.1% accuracy,
0.001%/degC temp. coefficient,
+/- 24V over voltage on any one Analog Input
• 2 Additional On-Board Sensor Analog Inputs, 12bit
Box Temperature, 0-150°F
System Voltage, 0-25.5V
• 2 Analog Outputs, 0-20mA, 12 bit, 0.25% accuracy
900 ohm maximum loop resistance
• Expandable to 256 external modules
POWER SOURCE AND SUPPLIES
• Power Supply 12VDC Isolated Source with 8A Fuse,
Use 14 or 16 AWG Supply Connections
• Power Input 10.5-15VDC, 12VDC Nominal 0.5A, 8.0A Max with external loads
• Quiescent Current 200mA @ 13.8VDC
• Resistive Loads Only, DC Use
• The sum of the load currents must be 7.5A or less
• COM1 (pins 9,10,11) 10.5-15VDC, 4.0A Combined
• COM2 (pin 4) 10.5-15VDC, 1.0A
• COM3 (12V) 10.5-15VDC, 1.0A
• COM4 (pin 4) 10.5-15VDC, 1.0A
• 24VDC @ 20mA per Terminal, Sensor Excitation power supply
• Temperature Range -40 to 50 degC (-40 to 122 degF) Surrounding Air Temp
• Internal Battery Lithium 3V, 1200mAh, 2/3A Size
(Realtime Clock and NVRAM)
CPU AND MEMORY
• 32bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
• Realtime Clock with Lithium Battery Backup
COMMUNICATIONS
• COM1, DB25M, RS-232
Optional RF MODEM FSK 0-300, 600, or 1200 baud (Bell 202)
• COM2, DB9M, RS-232 w/flow control lines
• COM3, RS-485 4 wire, Pluggable Terminal Block
• COM4, RS-232/RS-485, 9pin Sub-D
DIMENSIONS
• Height 9.75”
• Width 6.85”
• Depth 3.35” (with personality module)
• Weight 2.3 lb
FIELD WIRING
• Use Copper Conductors Only, 60°C
• Wire Range, 12-26 AWG
• Wire Strip Length, 0.310”
• Recommended Tightening Torque, 0.79 N-m / 7.0 lb-in.
