Micro-Comm S4500 User Manual

- 8 -
order information:
L51-xxxx
Modem:
0 - none (110-19200 baud RS-232)
L17 - 0-300 baud radio modem
L17A - 0-600 baud radio modem
L17B - 1200 baud radio modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com

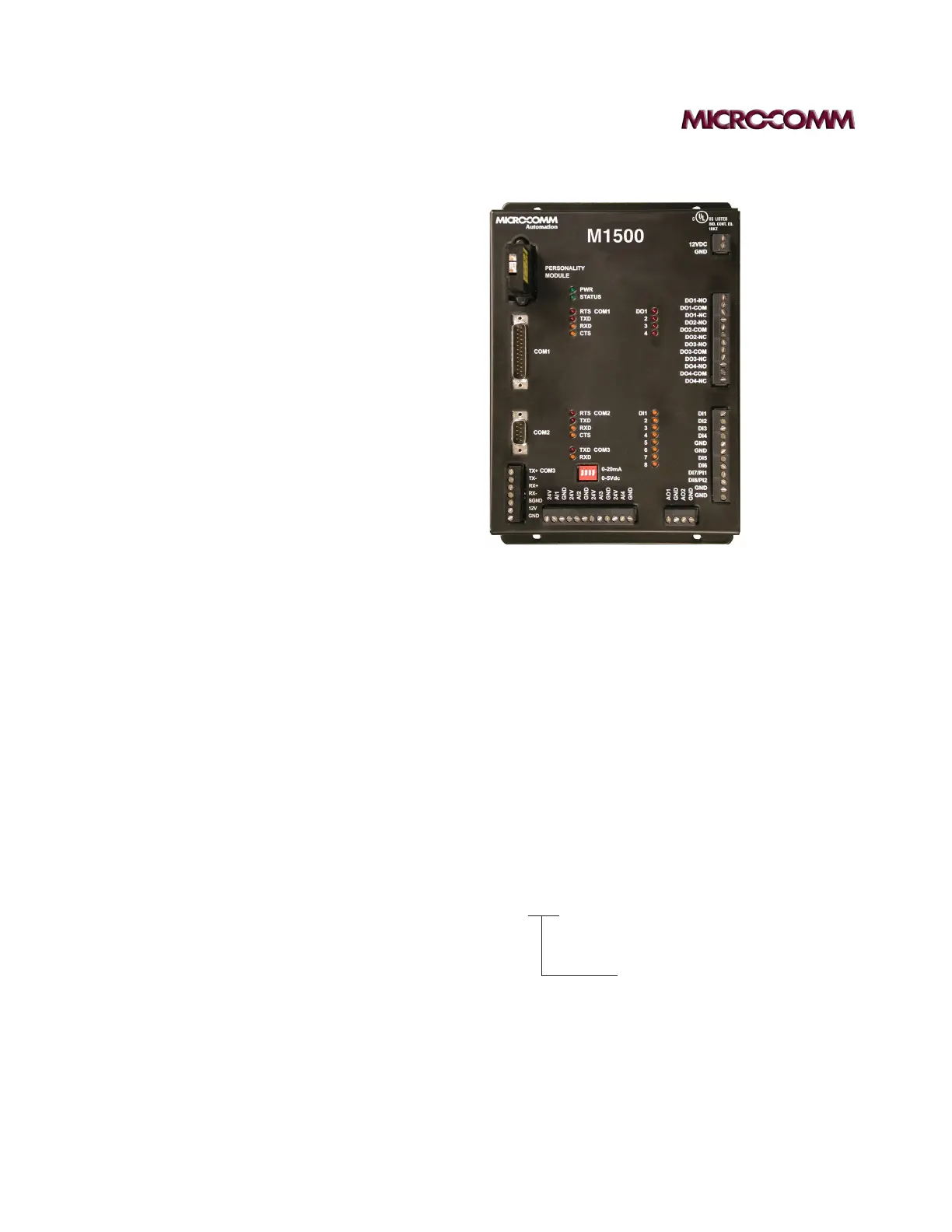

m1500 plC
i/o
• 4 Form C Relay Outputs, 10A @ 250VAC (10A @ 30VDC Resistive)
Relay contact to coil isolation 4000Vrms
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
• 8 Optically Isolated Discrete Inputs, Dry Contact or Pulse Inputs
Discrete Input optical isolation 5300Vrms
2 High Speed Pulse Inputs (discrete inputs 7 and 8)
0-1kHz, 50% duty cycle, contact closure or
open collector to GND
6 Low Speed pulse inputs (discrete inputs 1-6)
0-50Hz, 50% duty cycle, contact closure or
open collector to GND
• 4 Analog Inputs, 12bit, 0-5V or 0-20mA, 0.1% accuracy,
0.001%/degC temp. coefficient, +/- 24V over voltage
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, 0-150°F
System Voltage, 0-25.5V
• 2 Analog Outputs, 0-20mA, 2.5% accuracy
900 ohm maximum loop resistance
power sourCe and supplies
• 10.5-15 VDC Power Input, 10A
• 24VDC @ 100mA each output, 200mA total
Sensor Excitation power supply
• COM1 (pins 9,10,20) 4A
• COM2 (pin 4) 2.5A
• COM3 (12V) 2.5A
Cpu and memory
• 32-bit MCU running 16MHz
• 1MB FLASH, Application Program
• 512K RAM, Data
• 1MB Serial FLASH, Configuration
CommuniCations
• COM1, Radio Port
DB25M, RS-232 and RF signals
• COM2, Front Panel Display, Programming
DB9M RS-232 w/flow control lines
• COM3, RS-485 4 wire, 110–19200 BAUD
• Plug In RF MODEM
FSK 0-300, 600, 1200 BAUD
dimensions
• Height 9.75”
• Width 6.85”
• Depth 3.35” (with personality module)
• Weight 2.3 lb
