26
TOTAL AREA: Keeps a running count of the total acres
(hectares) worked. May be reset.
SPEED: Displays ground speed in miles per hour (kilometers
per hour).
AREA/HOUR: Displays current
work rate in acres per hour
(hectares per hour).
APPLICATION RATE: Displays
gallons (liters) of liquid applied
per acre (hectare).
BOOM SELECT: Used in
calibration mode to select an
active boom for calibrating
boom width.
TEST SPEED: Used in calibration
mode to simulate ground speed for
pre-field check-out.
ADJUST RATE: Used in calibration mode to enter an
amount of change for on-the-go adjustments to the
target rate (GPA/LPH).
TARGET RATE: Used in calibration mode to enter the target
application rate (GPA/LPH).
SUB AREA: Counts acres (hectares) worked. Can be used to
measure individual fields or to perform periodic checks. May
be reset.
DISTANCE: Displays distance traveled
in feet (meters). May be reset.
FLOW RATE: Displays total number
of gallons (liters) of liquid applied
per minute.
WIDTH: Used in calibration
mode to enter the working
width of your sprayer booms
or other equipment.
TOTAL FLOW: Displays
total number of gallons
(liters) applied. May be
reset.
CIRC: Used in calibration mode to enter the circumference
of the wheel (divided by number of magnets) that is equipped
with the magnetic speed sensor. Also used to calibrate Trak-
Star or radar speed sensors.
MIN FLOW: Used in the calibration mode to enter the
minimum flow rate (GPM/LPM) of the spray boom.
FLOW CAL: Used in calibration mode to enter the calibration
value assigned to your flowmeter (see flowmeter tag.)
AUTO/MAN: Key which
changes operation from
automatic to manual
control mode.
CAL: This key is used to
enter and exit the
calibration mode.
Key Functions:
PROGRAM KEYS: Used
to calibrate the system.
• RESET clears the counters
when not in CAL and held
for three sec onds.
• When in CAL, the “+”
key increases and the
“-” decreases the figure
displayed.
IMPORTANT: To reset the Distance, Total Flow or Area
counters, turn the BriteKnob
™
rotary dial to the appropriate
item, place the system in HOLD or turn all booms off and
depress “RESET” key for approximately three seconds.
WARNING LIGHT:
Indicates over or under
application of plus or minus
10% of the Target Rate. Also
lit when in CAL.

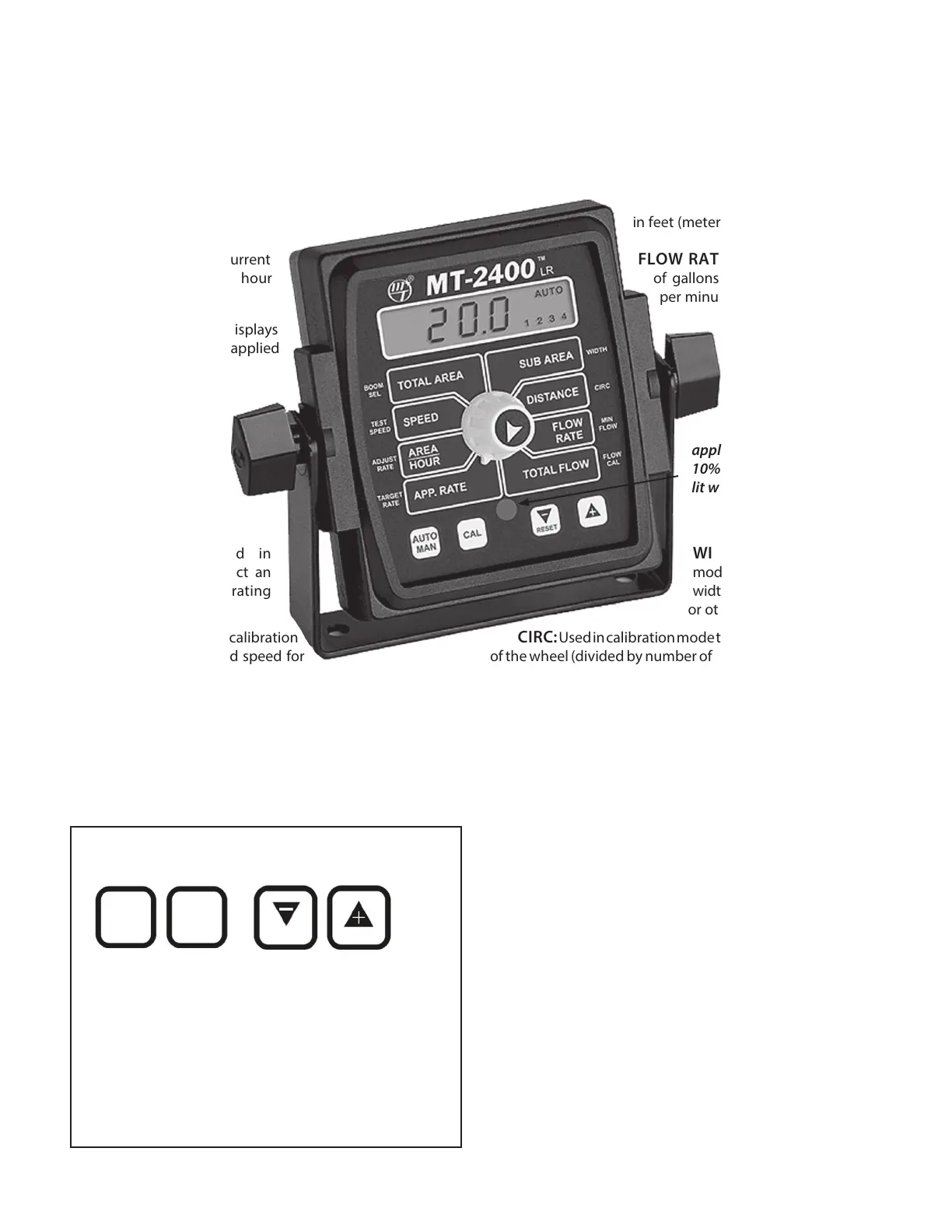

MT-2400 Console Func tions
The MT-2400 features a large, easy-to-read liquid crystal display, lighted Brite-Knob™ rotary dial and
lighted panel for night use.
Calibration Calibration
CAL
AUTO
MAN
RESET
