micro-trak MT-2400 LR - Basic Overview of Typical Installation

Basic Overview of Typ i cal Installation
6

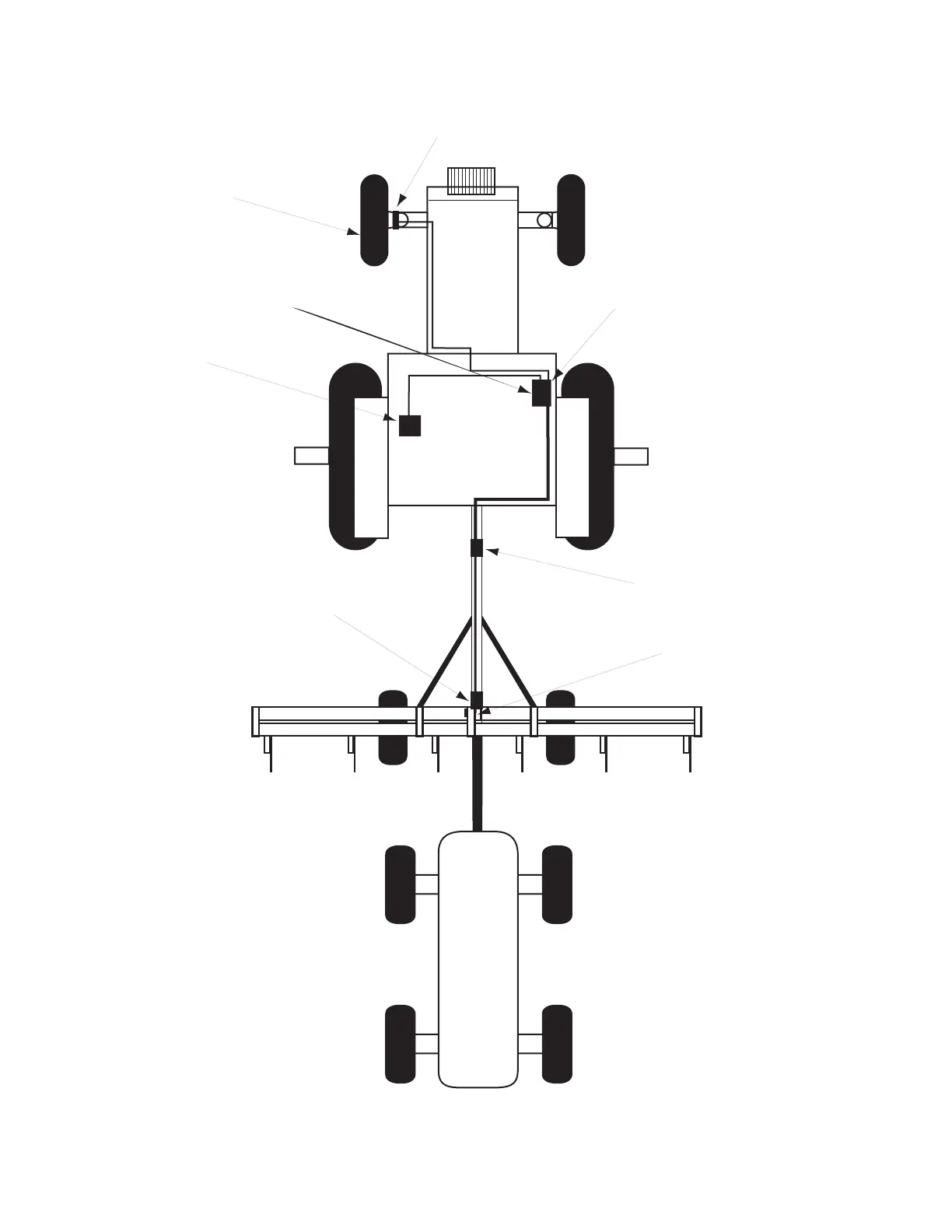

Hall-Eect Speed Sensor
(or Vansco or Optional Radar or GPS Speed Sensor)
Magnets on Hub of
Non-driven Wheel
Local Access
Speed Connection
Battery
Rear Speed Connection
Nurse
Tank
NH3500 Kit or
Liquier Kit
TM
Main Harness
Hitch Connection
MT-2400 Console
