Installation (cont)
MT-3405M Plumbing Diagram (cont)
Tee “C”
Tee “A”
Pressure
Relief Valve
Servo
Valve
Relief Valve
Tee “B”
Tee “C”
Range
Adjust Valve
Tee “A”

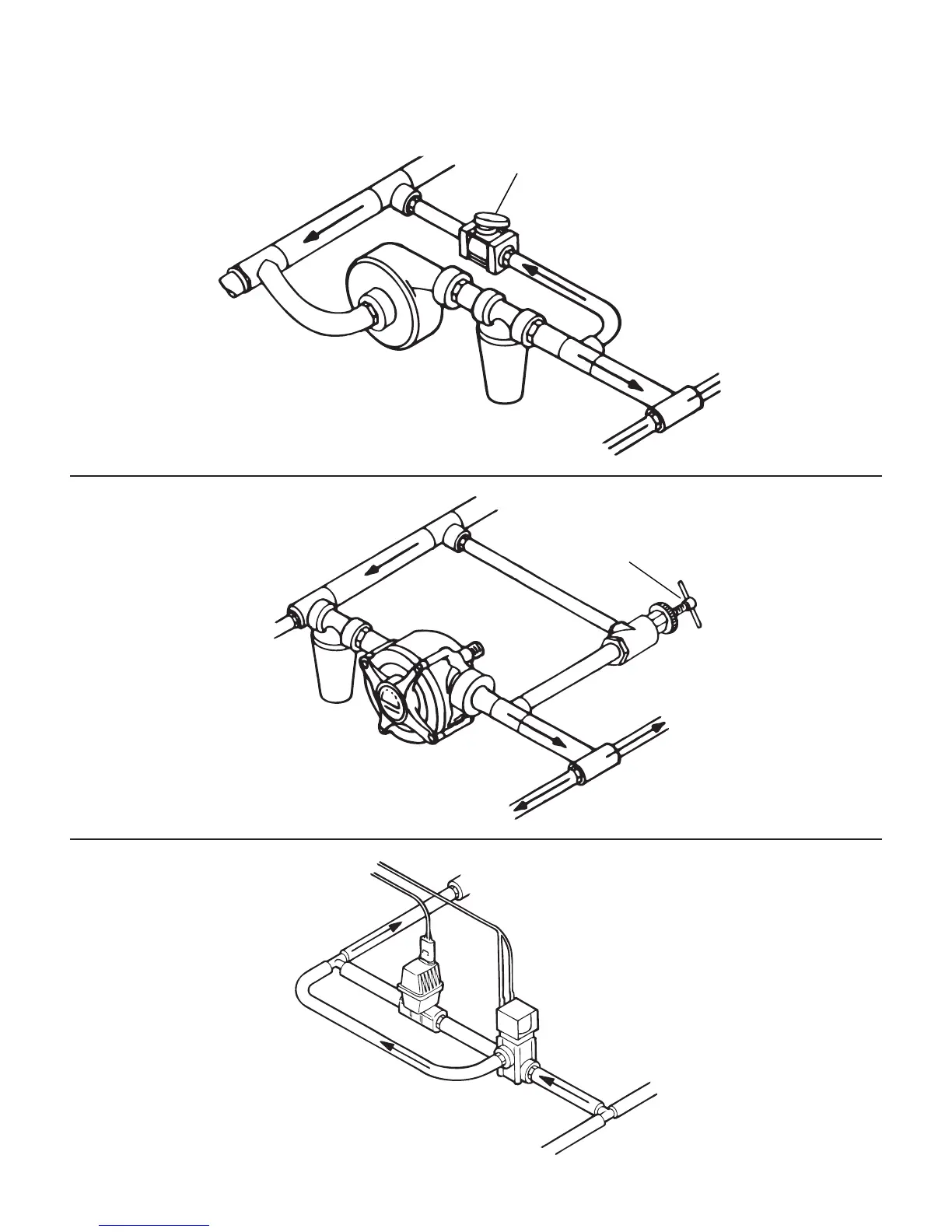

Illustration 21A
For Oversized Pumps
Illustration 21B
For Positive Displacement Pumps
Illustration 21C
If Optional Boost Valve Kit is Used
