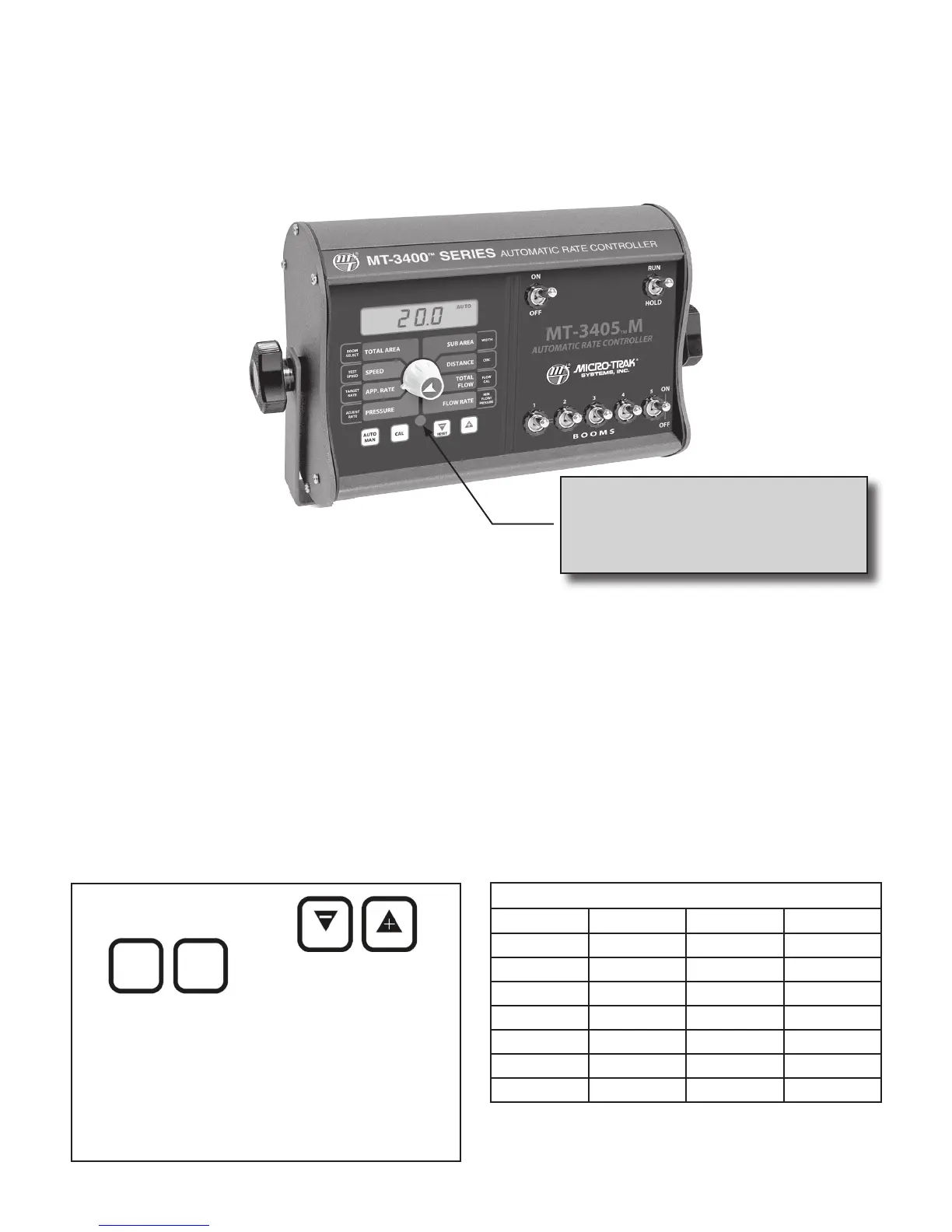

MT-3405M Console Func tions
The MT-3405M features a large, easy-to-read liquid crystal display, lighted Brite-Knob™ rotary dial and
lighted panel for night use.
TOTAL AREA: Keeps a running count of the total acres
worked. May be reset.
SPEED: Displays ground speed in miles
per hour.
PRESSURE: Displays
current liquid pressure.
APPLICATION RATE:
Displays gallons of liquid
applied per acre.
ADJUST RATE: Used in calibration mode to enter an amount
of change for on-the-go adjustments to the target rate.
TARGET RATE: Used in calibration mode to enter the target
application rate.
SUB AREA: Counts acres worked. Can be used to measure
individual fields or to perform periodic checks. May be reset.
DISTANCE: Displays distance
traveled in feet. May be reset.
FLOW RATE: Displays
gallons per minute of
liquid applied.
WIDTH: Used in calibration mode to enter the working
width of your sprayer booms or other equipment.
TOTAL FLOW: Displays
total number of gallons
applied. May be reset.
CIRC: Used in calibration mode to enter the circumference of
the wheel that is equipped with the magnetic speed sensor.
Also used to calibrate Trak-Star or radar speed sensors.
MIN FLOW/PRESSURE: Used in the calibration mode to
enter the minimum flow/pressure rate of the spray boom.
FLOW CAL: Used in calibration mode to enter the calibration
value assigned to your flowmeter (see flowmeter tag.)
IMPORTANT: To reset
the Distance, Total Flow
or Area counters, turn
the BriteKnob
™
rotary dial to
the appropriate item, place
the system in HOLD and
depress “RESET” key for
approximately three seconds.
BOOM SELECT: Used in calibration mode to select an active
boom for calibrating boom width.
TEST SPEED: Used in calibration mode to simulate ground
speed for pre-field checkout.
23
Calibration Positions Calibration Positions
WARNING LIGHT: Indicates over or
under application of plus or minus
10% from the Target Rate. Also flashes
when in CAL.
UNITS OF MEASURE CHART
ENGLISH METRIC TURF
AREA
Acres hectares 1000 Sq Ft
VOLUME
Gallons liters Gallons
SPEED
Miles/Hr kilometers/Hr MIles/Hr
DISTANCE
Feet meters Feet
PRESSURE
Lbs/Sq In bar Lbs/Sq In
FLOW RATE
Gallons/Min liters/Min Gallons/Min
SPRAY RATE
Gallons/Acre liters/hectare Gal/1000 Sq Ft
AUTO/MAN: Key which
changes operation from
automatic to manual
control mode.
CAL: This key is used
to enter and exit the
calibration mode.
Key Functions:
PROGRAM KEYS: Used
to calibrate the system.
• RESET clears the counters
when held for three
seconds and not in CAL.
• The “+” key increases
the figure dis played in
the read out, while “-”
de creas es it when in CAL.
