micro-trak MT-3405 M - Component Parts and Assembly Hardware

Terminal Kit
P/N 13270
Speed Sensor Kit P/N 01531
Including items A-G, below:
C. 15’ 3-Pin Extension Cable
M/P 150 P/N 13207
F. Magnet Clips (6)
P/N 10080
G. Hardware Bag
P/N 13251
D. Speed Sensor
Mounting Bracket
P/N 10013
E. Magnets (6)
P/N 12069
(2 in hardware bag)
Reference Manual
P/N 13910
5’ 3-Pin W/P Extension Cable
P/N 10450
1” Electric
Servo Valve
P/N 11218
20’ 3-Pin M/P Power Harness
P/N 13092
C B A
5’ Shut-off Cables (6)
P/N 13115
B A
14” Nylon Cable Ties
P/N 12910
14” Nylon Cable Ties
P/N 12910
FM750 GFN (P/N 11501) or
FM750 SS (P/N 10131)
Flowmeter
5’ Hall-effect Flow Sensor Cable
with threaded sensor
P/N 13096
A.5’ Hall-effect Flow Sensor Cable
with threaded sensor
P/N 13096
MT-3405 M Console
P/N 13931
MT-3405 M
Utilities CD
P/N 14016
8
Component Parts/Assembly Hardware

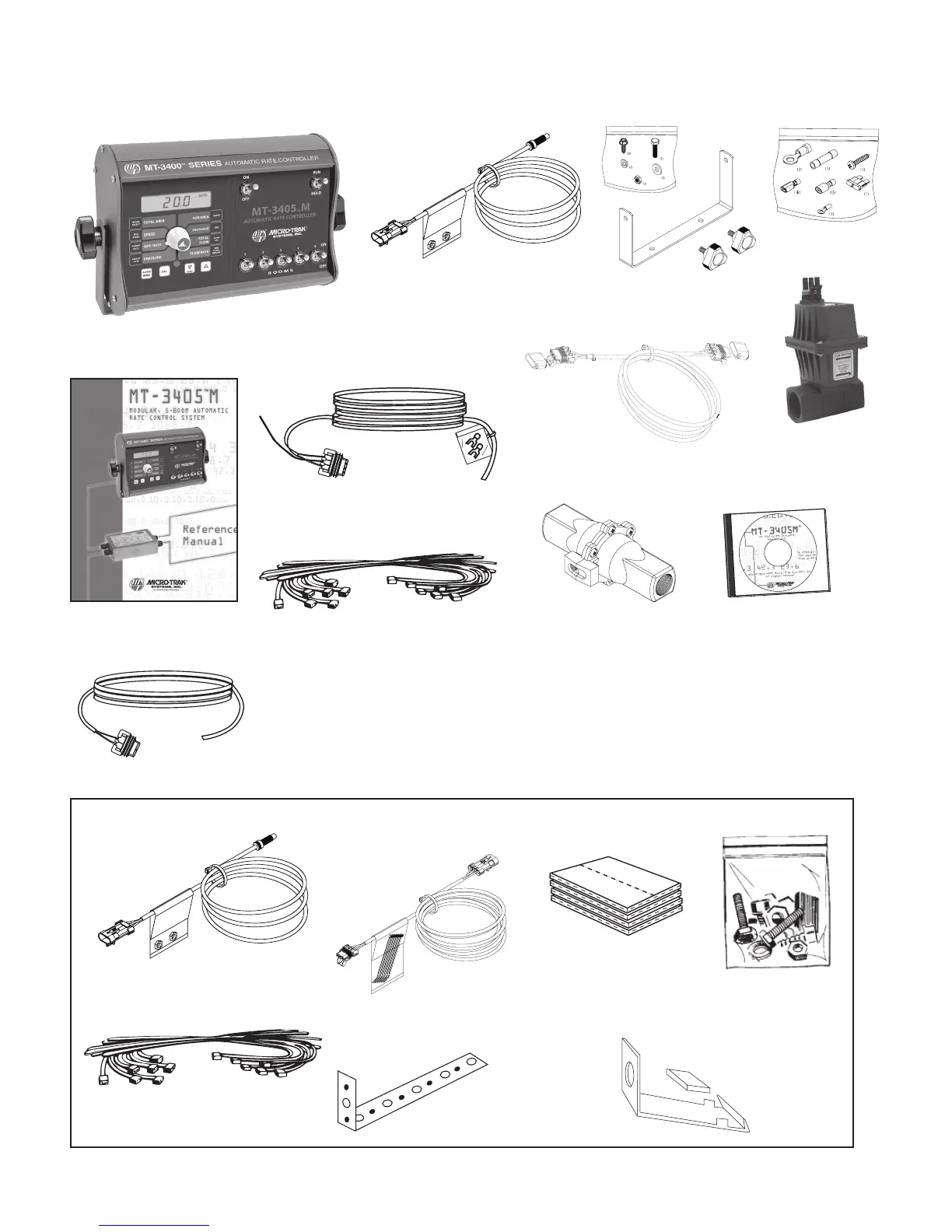

Before beginning installation, check the carton contents for the following items:
Console Mount Kit
P/N 13254
