Microcare LCD MPPT 20 - 2 Mppt Overview

7
MPPT OVERVIEW
2. MPPT OVERVIEW
(Isolators Installed on 100A MPPT Unit’s)
No
Description
1
Green Panel LED
2
Green Charge LED
3
Green Setting LED
4
LCD Display
5
Ventilation Holes
6
Panel Circuit Breaker
7
Battery Circuit Breaker
8
RJ12 Programming Port
For Factory Programming Only
9
Communications Port
10
Data Button
11
Charge Button
12
Heatsink
13
Fan
1
2
3
4
5
6
7
8
9
10
11
12
13

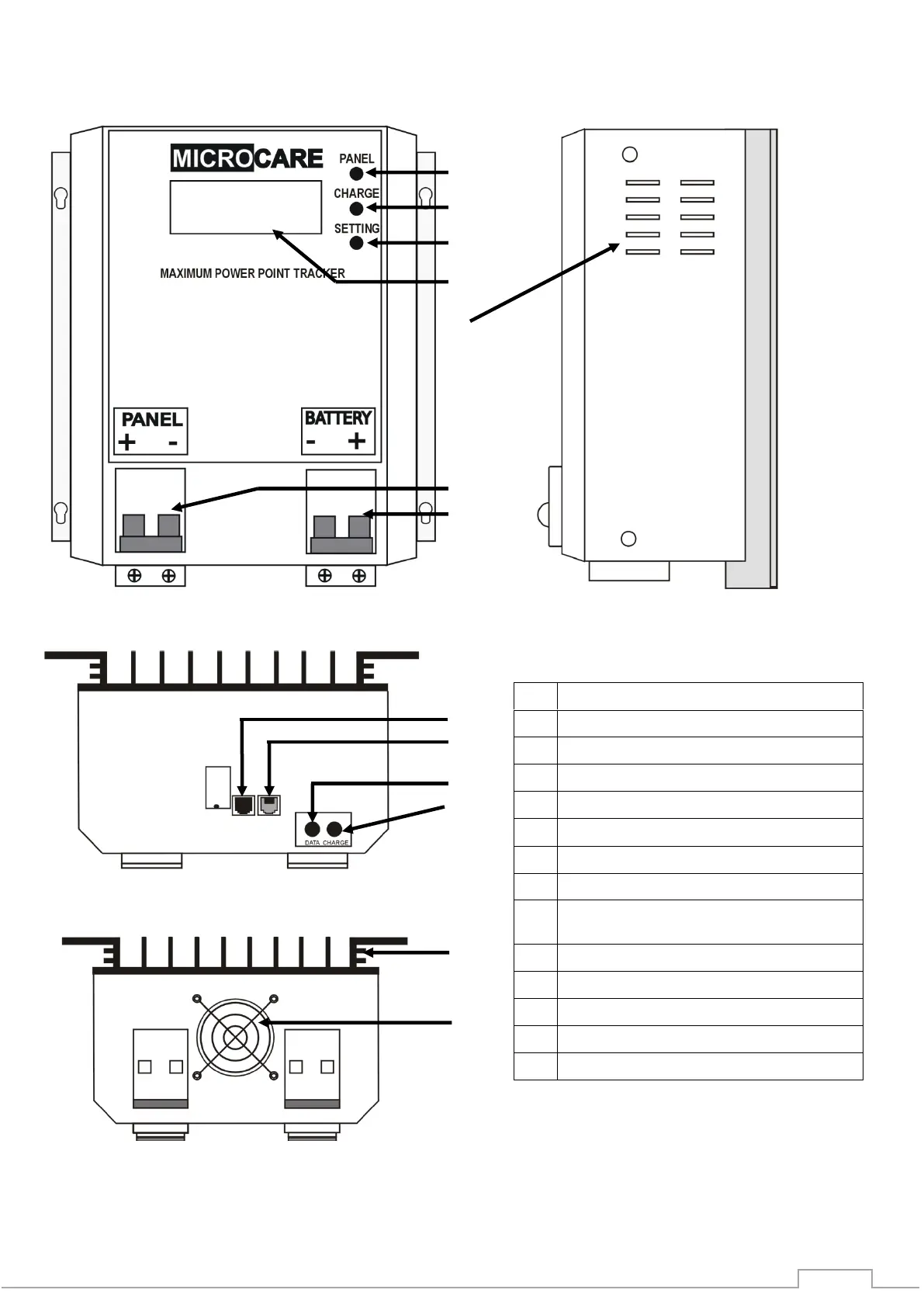

Fig 2.1: MPPT Front View
Fig 2.2: MPPT Side View
Fig 2.3: MPPT Top View
Fig 2.4: MPPT Bottom View
