MPPT INSTALLATION

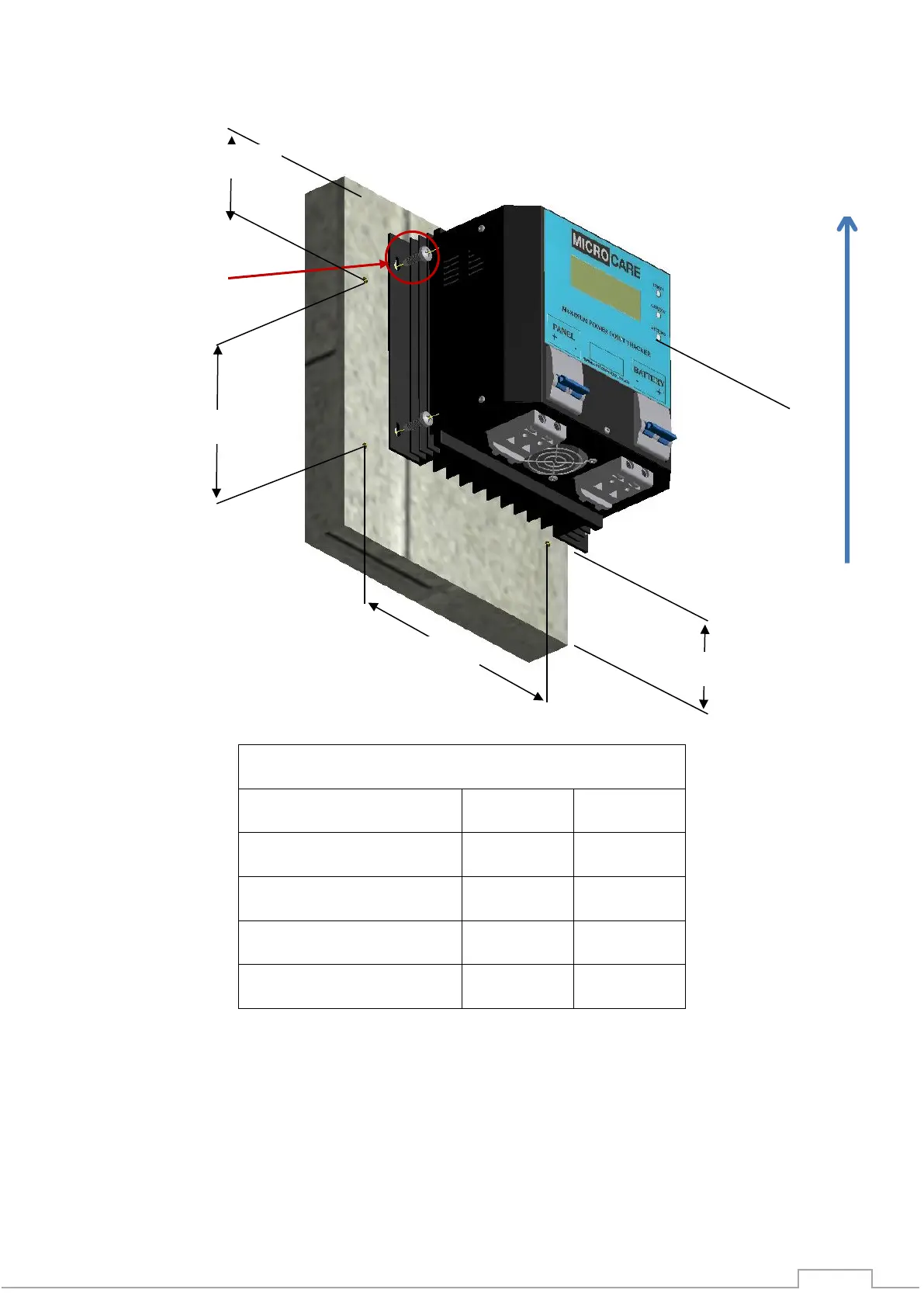

3.3 LCD MPPT Installation Diagram
Table 3.1: MPPT Mounting Hole Dimensions
MPPT
Height
Width
20 Amp LCD MPPT
143 mm
204 mm
40 Amp LCD MPPT
143 mm
204 mm
60 Amp LCD MPPT
227 mm
204 mm
100 Amp LCD MPPT
278 mm
204 mm
4 x ANSI B18.6.5M
- M6x1 x 20
Cross Recessed
Pan Head Self
Tapping Screws
204mm
m
143mm
150mm
Airflow
150mm
