6. LCD MPPT OPERATION
Please follow the instructions below for basic MPPT operation.

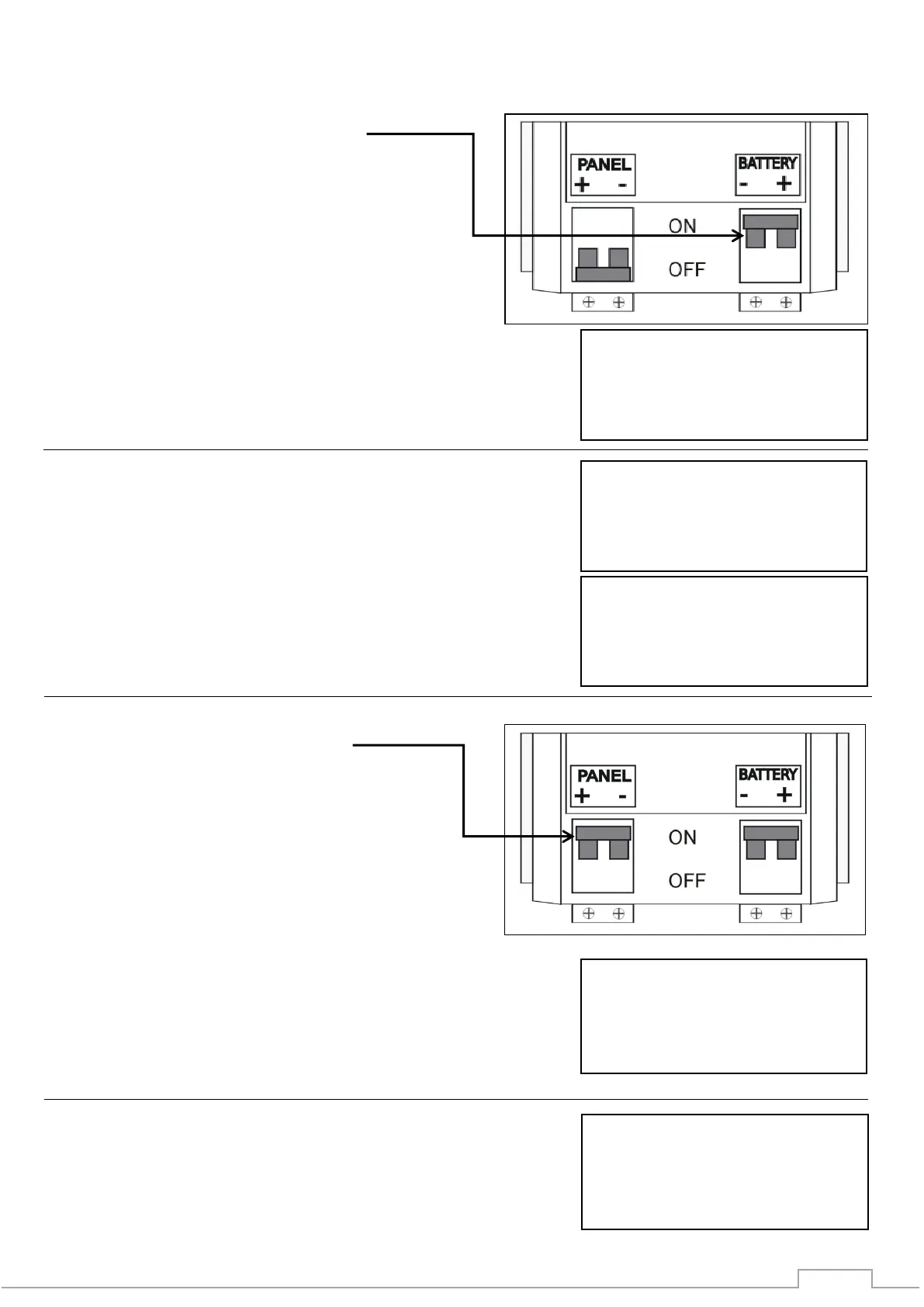

Turn ON the battery circuit breaker.
The following screen should appear:
This shows the name of the supplier, contact number and
serial number
The screen changes to
This shows the unit automatically measuring the batteries
and displaying the result. Should the battery voltage shown be
incorrect it is possible to force the MPPT to accept a new
battery value.
The screen changes to
Turn ON the Panel Circuit Breaker.
Start Up Screen
The following screen should appear:
This shows the MPPT measuring the open circuit panel voltage
and calculating the initial power point voltage
The screen then changes to:
This is the screen that will normally be displayed showing
the system operating correctly.
