Microcare LCD MPPT 20 - V1 Lithium Ion Interface - Freedom Won BMS Wiring Diagram; Wiring Designation

18
WIRING INFORMATION

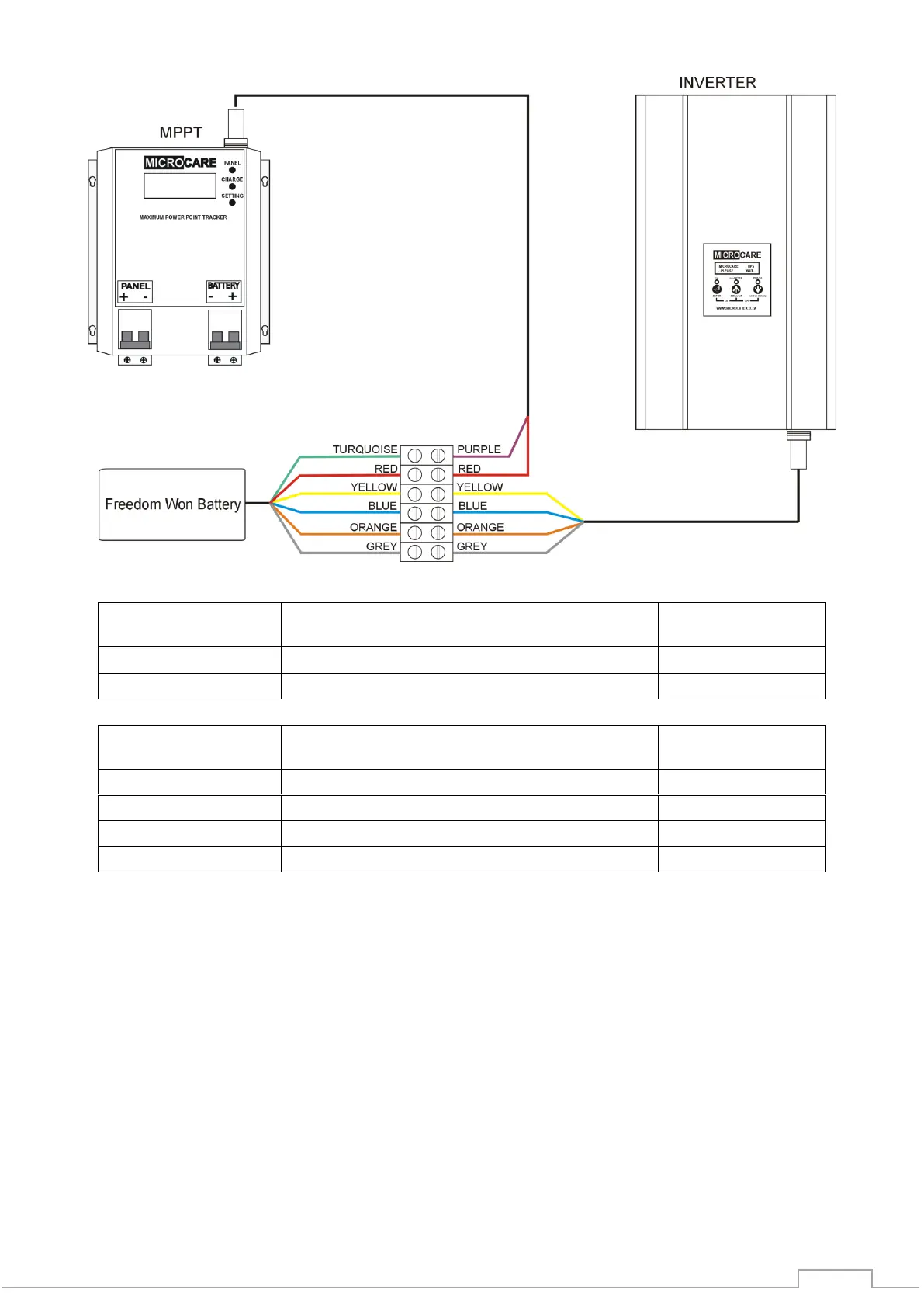

4.5 V1 Lithium Ion Interface – Freedom Won BMS Wiring Diagram
4.5.1 Wiring Designation
WIRE COLOUR
MPPT WIRE FUNCTION
MPPT PIN
NUMBER
RED
Solar Charge Controller Enable (NO)
2
TURQUIOSE
Solar Charge Controller Enable (COM)
1
WIRE COLOUR
INVERTER WIRE FUNCTION
INVERTER PIN
NUMBER
YELLOW
Inverter Enable (NO)
3
BLUE
Inverter Enable (COM)
1
ORANGE
Inverter Charge Enable (NO)
2
GREY
Inverter Charge Enable (COM)
1
(NO = Normally Open) (COM = Common)
