WIRING INFORMATION

4.2 Battery Connection Methods

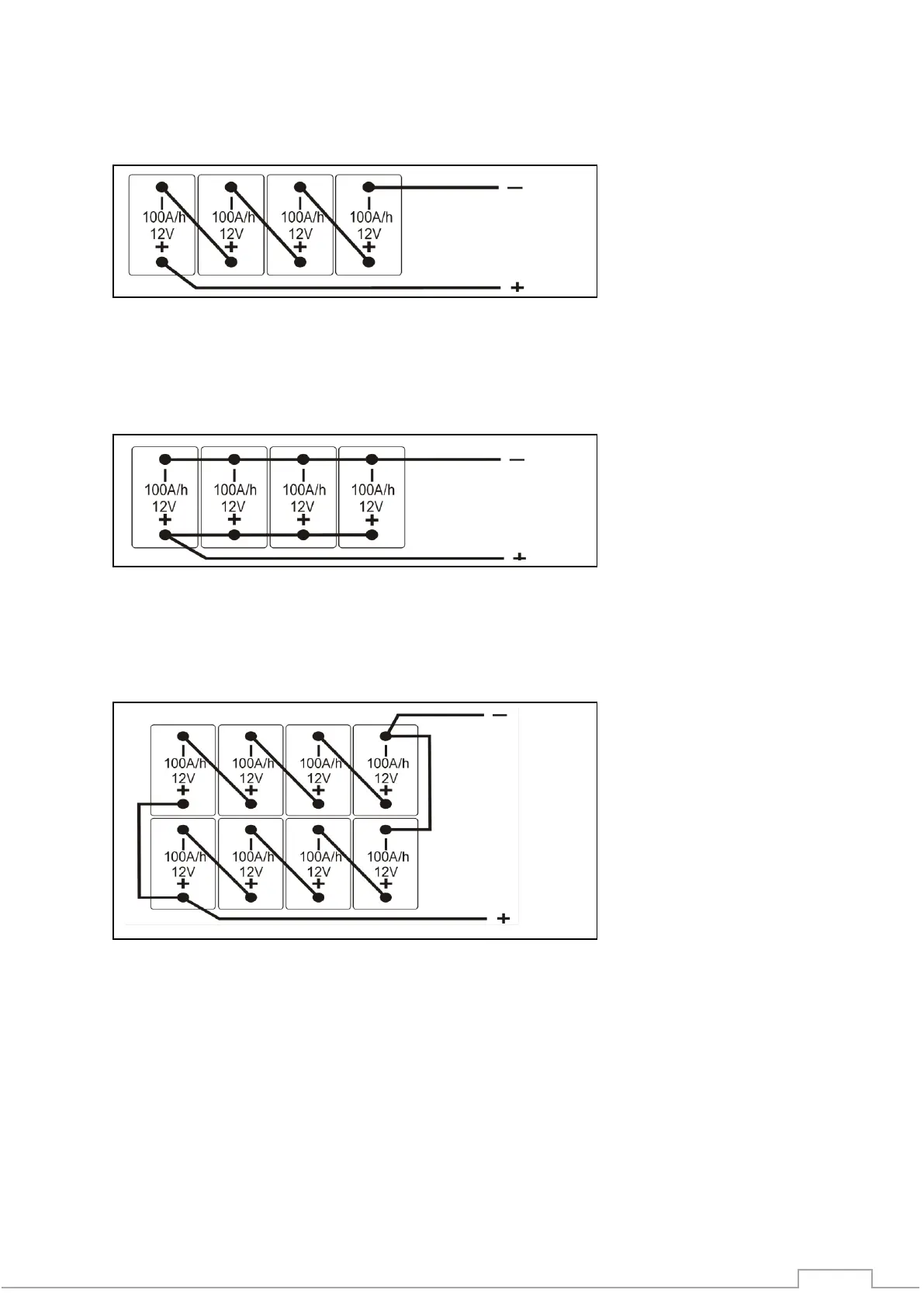

4.2.1 Series Connection

12V + 12V + 12V + 12V = 48V Ah remain at 100 Ah

Series Connection (Voltage increases, amperage stays the same as a single battery)

4.2.2 Parallel Connection

Voltage remains at 12V 100 Ah + 100 Ah + 100 Ah + 100 Ah = 400 Ah

Parallel Connection (Voltage stays the same as a single battery, amperage increases)

4.2.3 Series and Parallel Connection

Voltage increases to 48 V Ah increases to 200 Ah

2 Strings of batteries in series, connected in parallel

Series/Parallel Connection (both voltage and amperage increase)

Refer to table 4.1 for the correct cabling sizing.
