3.0 Hardware Features
3.1.1 Mechanical Drawings

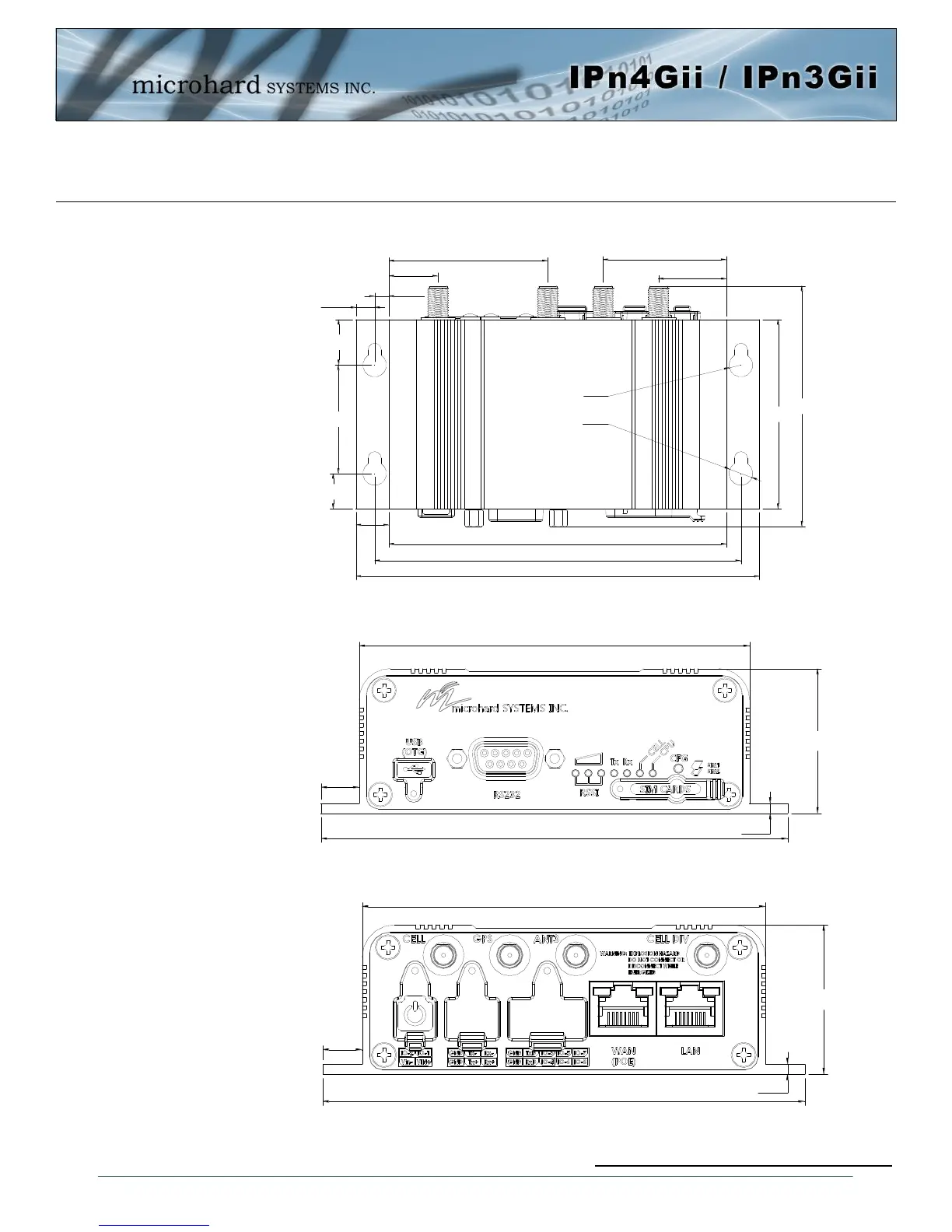

Drawing 3-1: IPnXGii Top View Dimensions
Drawing 3-2: IPnXGii Front View Dimensions
Drawing 3-3: IPnXGii Rear View Dimensions
Note: All dimension units: Millimeter
119.50
9.75
37.00
100.01
2.50
9.75
100.01
108.50
119.50
32.04
13.48
10.48
5.50
4.25
14.50
47.00
20.16
36.58
56.00
71.10
R3.50
Ø7.00
100.01
9.75
37.00
2.50
119.50
