2.0 Quick Start
If any additional
settings need to be
changed, ensure they
are also changed on
the Slave.

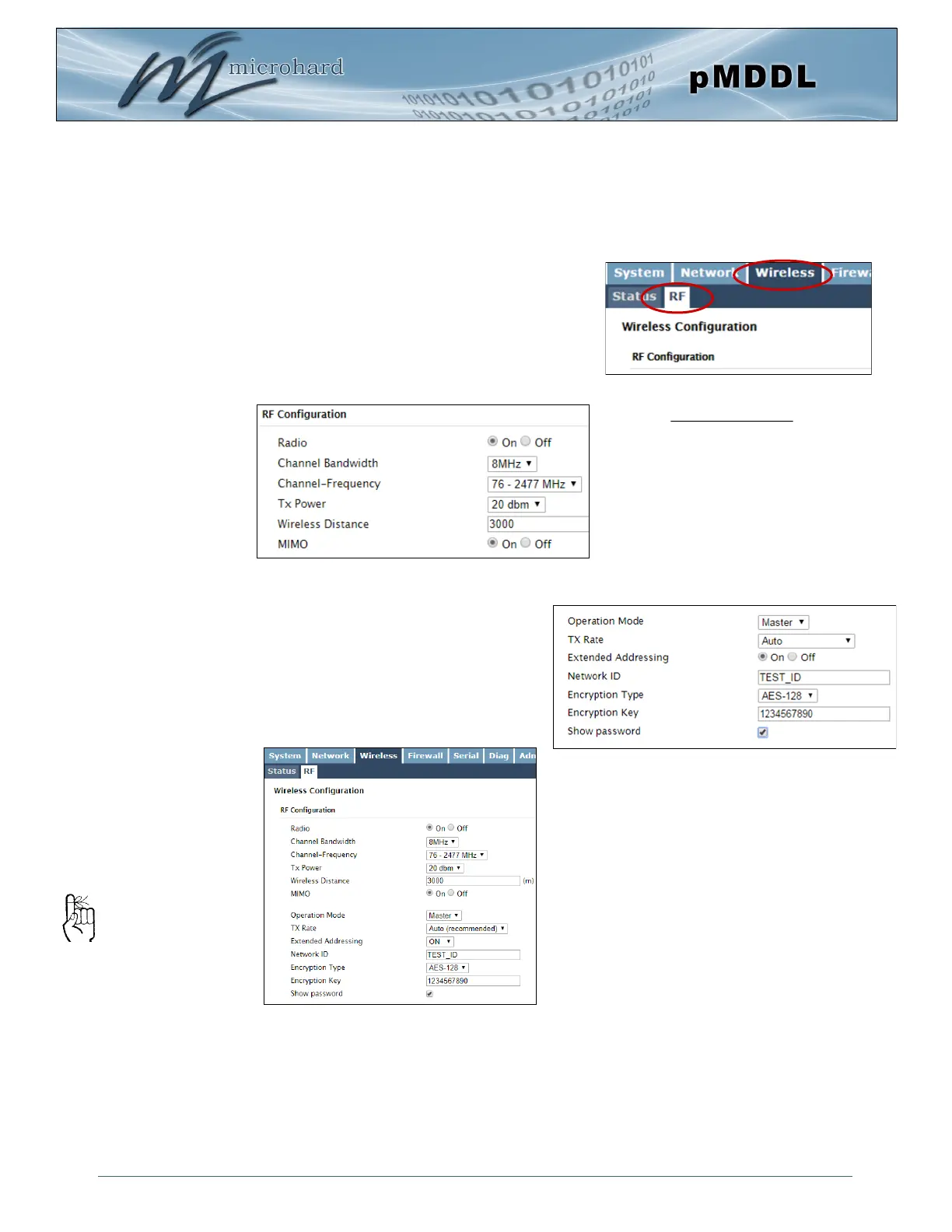

2.3.1 Configuring the Master (Con’t)
✓ Configure the pMDDL as a Master
Select Master from the Operation
Mode dropdown box.
Set a Network ID, which will need
to be the same on each unit in the
network. This example uses
TEST_ID.
Select Wireless from the top/main navi-
gation, and then RF from the submenu
list.
For bench or close proximity testing
it is best to use a lower power setting
to prevent RF saturation. Select
20dBm from the TX Power setting.
The remaining settings in the Wireless menu
should be left as defaults for this exercise.
Refer to Section 5.3 Wireless for additional
information.
Click on the Submit button to write the
changes to the pMDDL. The Cancel button
will revert back to previously saved values
In the RF Configuration ensure the
Compatibility Mode, Channel
Bandwidth and Channel-
Frequency are set the same on each
module.
