4.0 Configuration

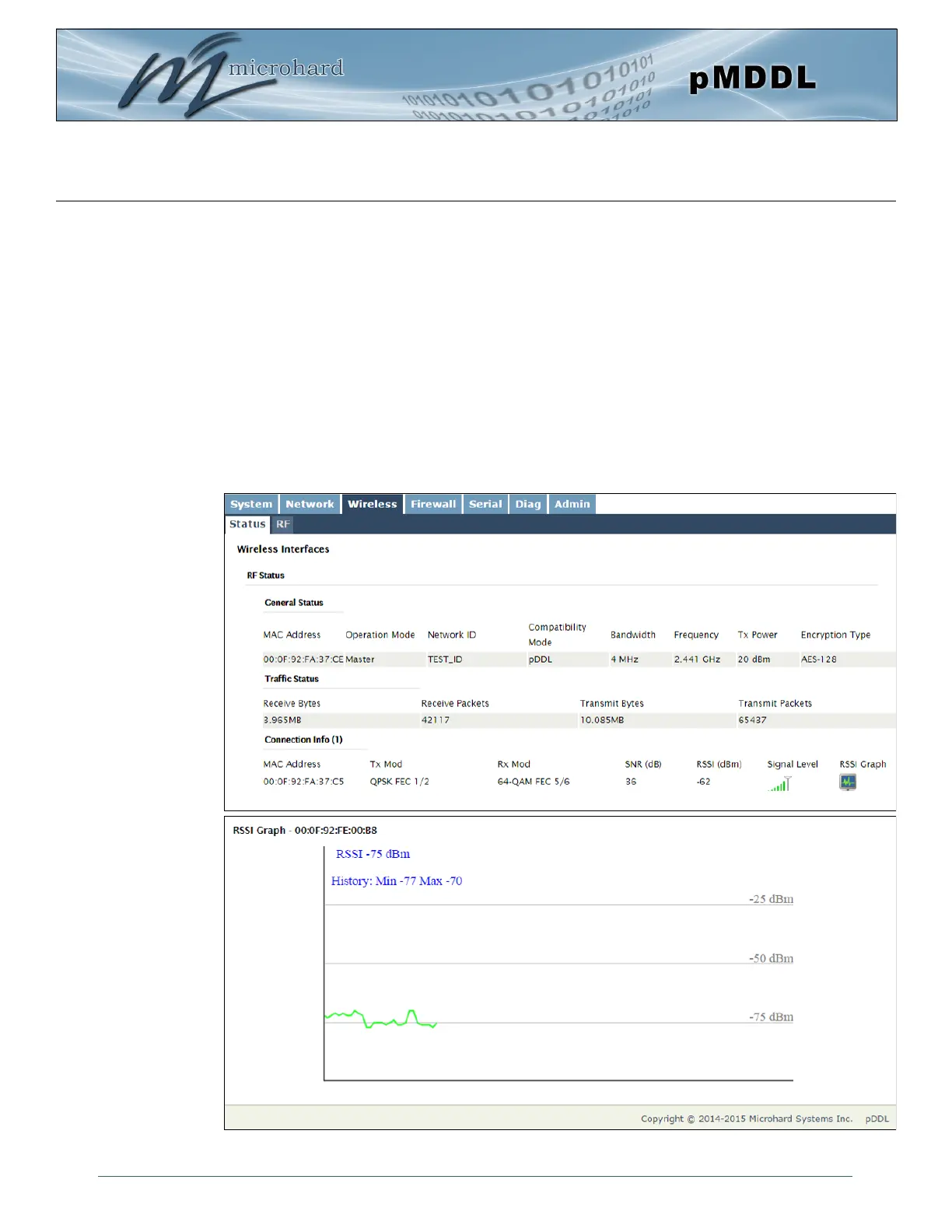

Image 4-3-1: Wireless > Status (RSSI Graph Shown Below)
4.3 Wireless
4.3.1 Wireless > Status
The Status window gives a summary of all radio or wireless related settings and connections.
The General Status section shows the MAC address of the current radio, the Operating Mode (Master,
Slave etc), the Network ID being used, the Compatibility Mode, Channel Bandwidth and frequency
information and the type of security used.
Traffic Status shows statistics about the transmitted and received data.
The pMDDL shows information about all Wireless connections in the Connection Info section. The MAC
address, TX & RX Modulation, Signal to Noise ratio (SNR), Signal Strength (RSSI), and a graphical
representation of the signal level or quality, as well as a RSSI Graph Link.
